THRET Offroad
Part # 707F-1790U-12

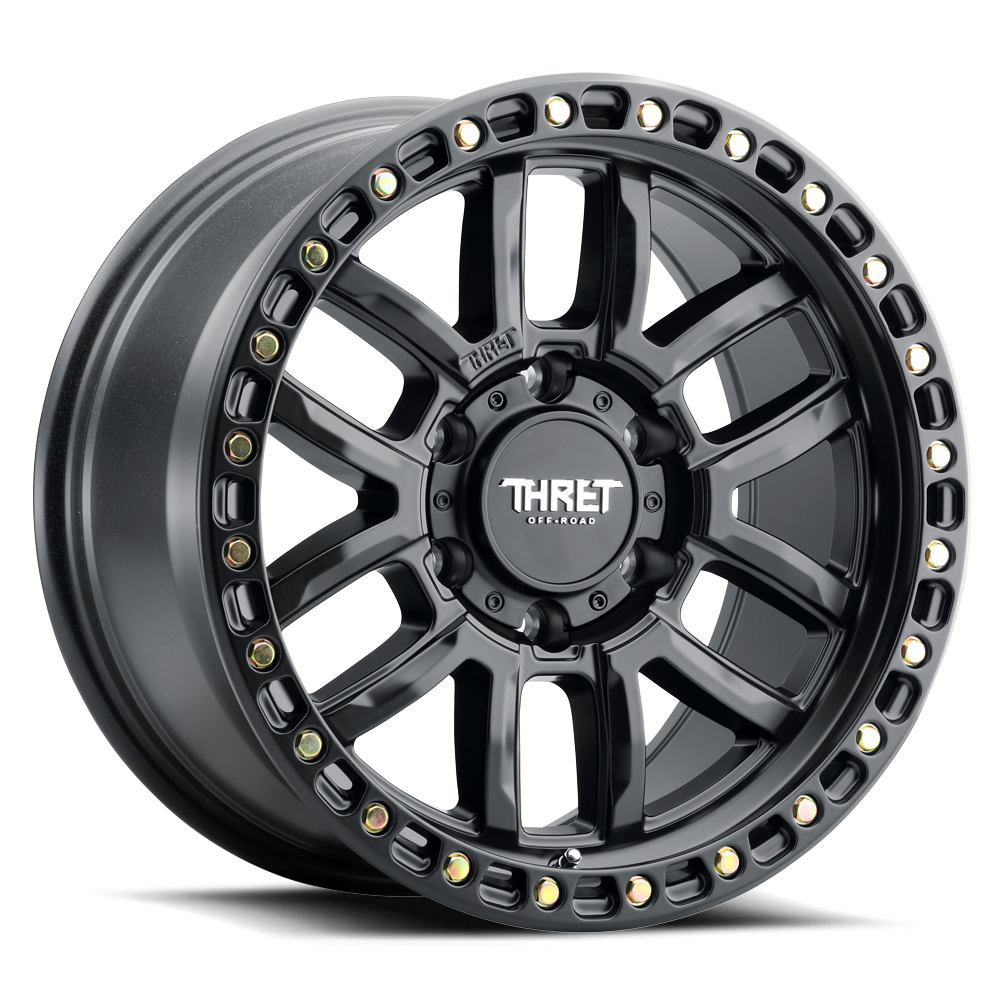

707 Simulated Beadlock WheelFOR THE 2021–2027 Ford Bronco
$330.00
This part + add-ons
Set of 4: $1,320.00
Free shipping
Ships within a week
Fitment checkedWe review every order
2-year warrantyFully covered
Authorized dealerGenuine parts
Bronco Forge has been so easy to contact. I've talked to them on a Saturday, texted, and called. They are very responsive and helpful.
Fitment & Sensor Notes
Bolt Pattern: 6x139.7, matches 2021-2027 Ford Bronco factory pattern. Sizes: 17x9, 18x9, 20x9. Offset: -12mm, 0mm, or +18mm (size dependent). Hub Bore: 106.1mm or 108.2mm. Backspace: 4.5 to 5.7 inches. Load Rating: 2,500 lbs. Simulated beadlock ring, DOT approved. Confirm trim-specific offset needs before ordering. Not accepted for return once mounted.
Military discount
Active duty, veterans and families
Not ready yet?
Order or email contact@broncoforge.com and we'll review your year, trim, door configuration, and any other fitment details relevant to the product so you can avoid any surprises later.
2 hr
Install time
6x139.7
Fitment
Cast aluminum
Material
All trims
2021–2027 Ford Bronco
Completes the setup
Parts that go with this one.
Fitment chart
| Trim | 2021 | 2022 | 2023 | 2024 | 2025 | 2026 |
|---|---|---|---|---|---|---|
| Base | Fits | Fits | Fits | Not made this year | Fits | Fits |
| Big Bend | Fits | Fits | Fits | Fits | Fits | Fits |
| Black Diamond | Fits | Fits | Fits | Fits | Not made this year | Not made this year |
| Outer Banks | Fits | Fits | Fits | Fits | Fits | Fits |
| Badlands | Fits | Fits | Fits | Fits | Fits | Fits |
| Wildtrak | Fits | Fits | Fits | Fits | Not made this year | Not made this year |
| First Edition | Fits | Not made this year | Not made this year | Not made this year | Not made this year | Not made this year |
| Everglades | Not made this year | Fits | Fits | Fits | Not made this year | Not made this year |
| Heritage Edition | Not made this year | Not made this year | Fits | Fits | Fits | Fits |
| Stroppe Edition | Not made this year | Not made this year | Not made this year | Not made this year | Fits | Fits |
| Raptor | Not made this year | Fits | Fits | Fits | Fits | Fits |
Fits Doesn't fit – Not made that year
- Doors: 2-Door and 4-Door
Details
Fitment
The THRET Offroad 707 uses the Ford Bronco's 6x139.7 bolt pattern and is listed here for the 2021-2027 Ford Bronco. Hub bore: 106. Load rating: 2,500 lbs per wheel. THRET lists this wheel as DOT approved.
Available sizes: 17x9, 18x9, 20x9. Offset options: -12mm, +18mm, 0mm. Backspacing ranges from 4.5" to 5.0". Confirm tire clearance for your tire size, suspension, and fender setup before mounting.
Best For
Bronco owners who want the beadlock look for street and trail use without the ring-bolt maintenance of a true beadlock.
Design
The 707 is a cast aluminum wheel with a simulated beadlock ring around the outer lip. The ring is for styling and does not clamp the tire bead. That lets the wheel mount and balance like a normal wheel while keeping the beadlock-style look.
Size, Offset & Stance
Offset changes how far the wheel sits in or out. A more negative offset pushes the wheel farther toward the fender; a more positive offset keeps it farther in. Use the size menu to compare the exact offset and backspacing before you order.
Finish options: Matte Black/Matte Black Ring, Matte Black/Machined Ring, Machined/Machined Ring. Not every finish is offered in every size.
Simulated vs. True Beadlock
A true beadlock clamps the tire bead for very low tire pressure. The 707 does not. THRET lists the 707 as DOT approved, and there are no beadlock ring bolts to torque after trail use. If very low-pressure crawling is the goal, the 602 Maze is the true beadlock option.
Installation
Have the tires mounted and balanced by a tire shop. These THRET wheel applications work with factory TPMS sensors and use a conical lug seat. Confirm your lug nuts match the wheel before installation. Wheels are not accepted for return once a tire has been mounted.
Specs
| Vehicle | 2021–2027 Ford Bronco |
|---|---|
| Trims | All trims |
| Doors | 2-Door / 4-Door |
| Fitment | 6x139.7 |
| Install time | 2 hr |
| Material | Cast aluminum |
| Warranty | 2 Year |
| Brand | THRET Offroad |
| Part number | 707F-1790U-12 |
| GTIN | 840177461712 |
Questions
Does the 707 ring lock the tire bead?
No. The ring on the 707 is a simulated beadlock. It gives the beadlock look but does not clamp the tire bead. For a true beadlock, see the THRET Offroad 602 Maze.
Is the 707 street legal?
Yes. THRET Offroad lists the 707 as DOT approved for street use.
Which offset should I pick?
A -12mm offset pushes the wheel out for a wider stance. A +18mm offset keeps the wheel tucked closer to the frame. The 0mm offset on the 20x9 sits in between. Your tire size, lift height, and fender flares decide how far out the wheel can sit without rubbing.
What does the backspacing number in the size menu mean?
Backspacing is the distance in inches from the mounting face to the inner edge of the wheel. The 707 ranges from 4.5 to 5.7 inches on the Bronco sizes. A lower number sets more of the wheel outside the hub.
Do I need new lug nuts?
The 707 uses a conical acorn and spline lug seat. Check that your lug nuts match that seat style before you mount the wheels, or pick up a set that does.
Will my factory TPMS sensors work?
Yes. THRET Offroad lists the 707 as TPMS compatible, so your factory sensors move over to the new wheels.
