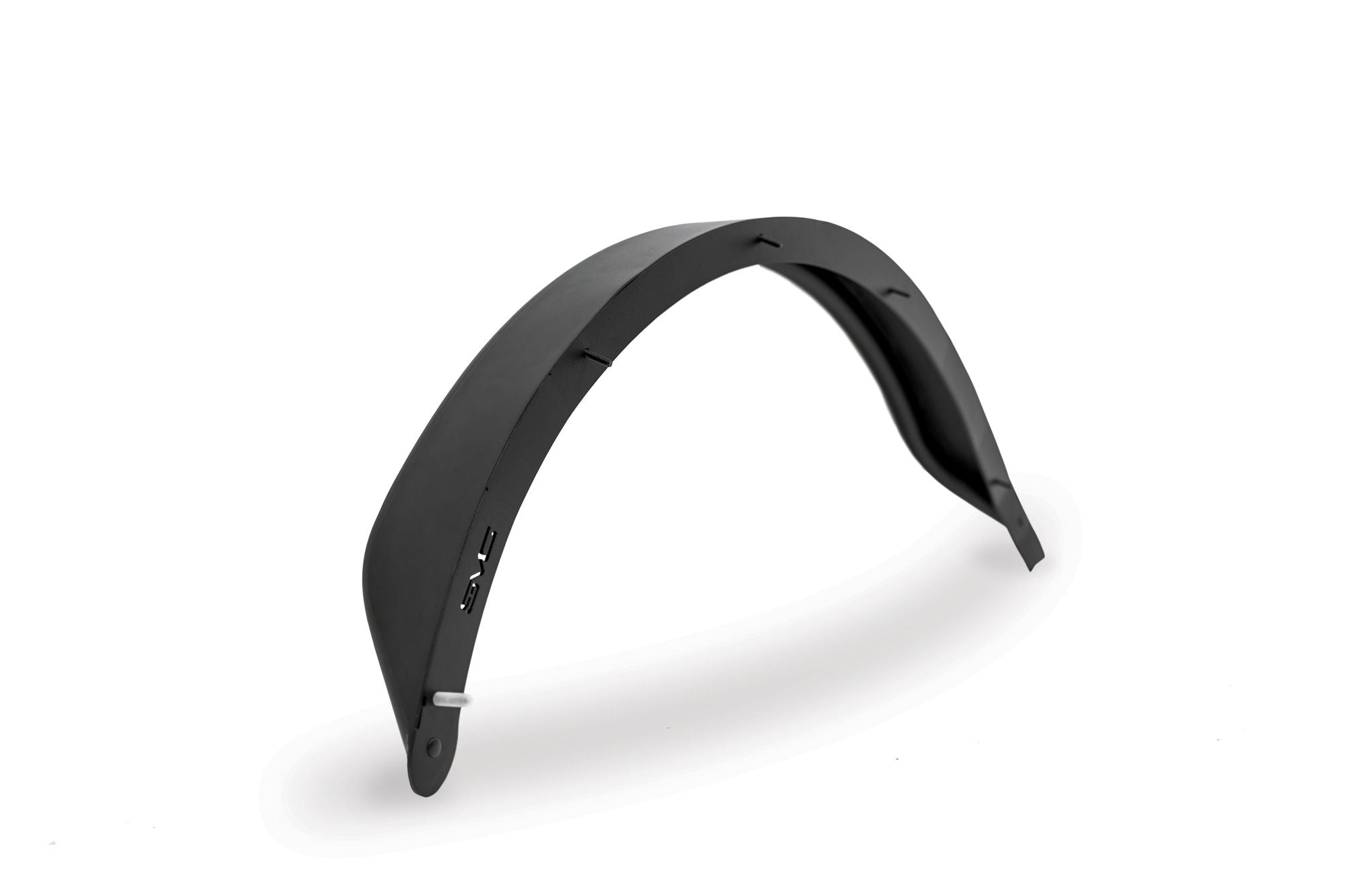

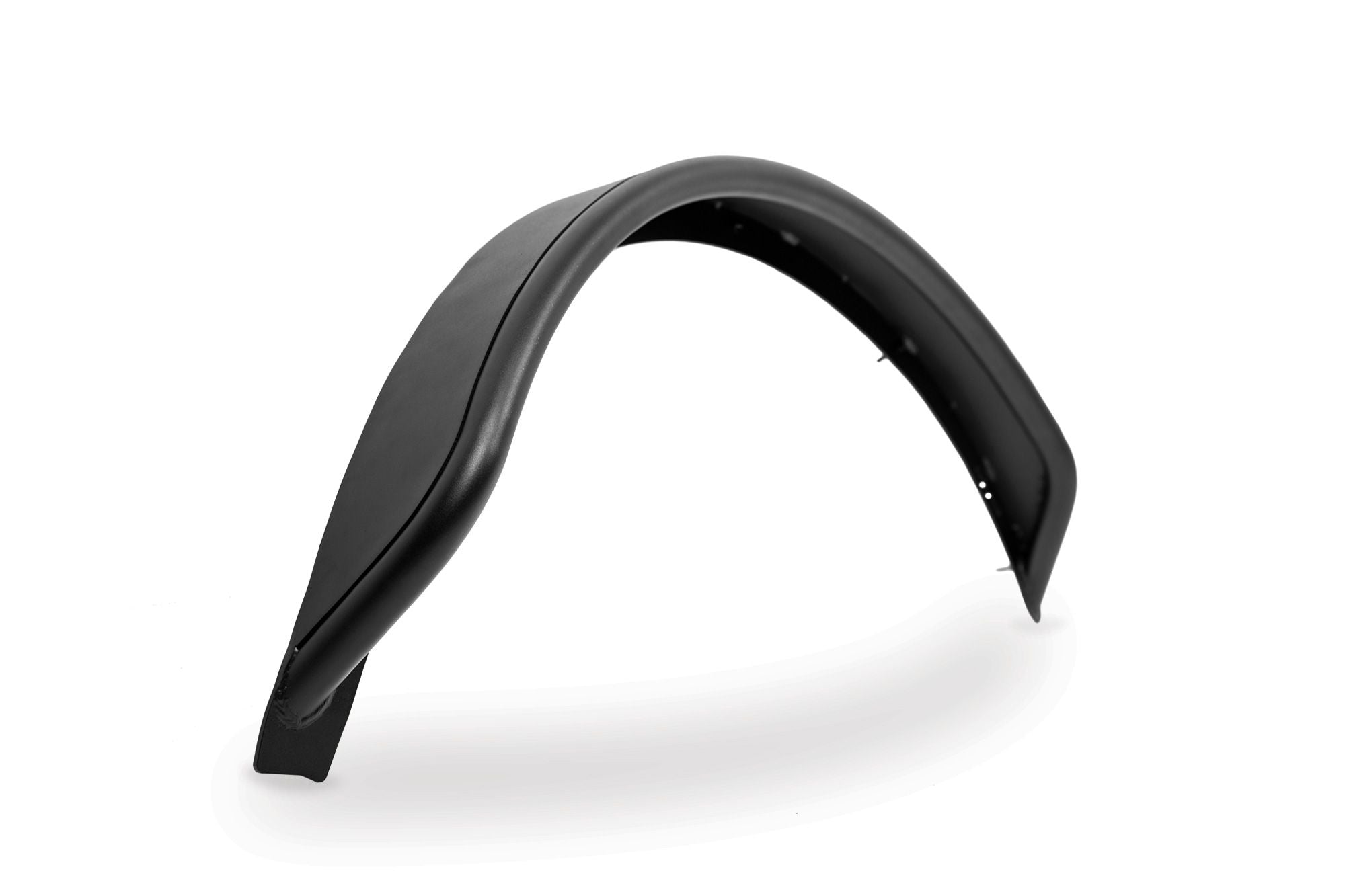

DV8 Offroad tube fender flare for 4-door Ford Bronco, single flare product shot on white background

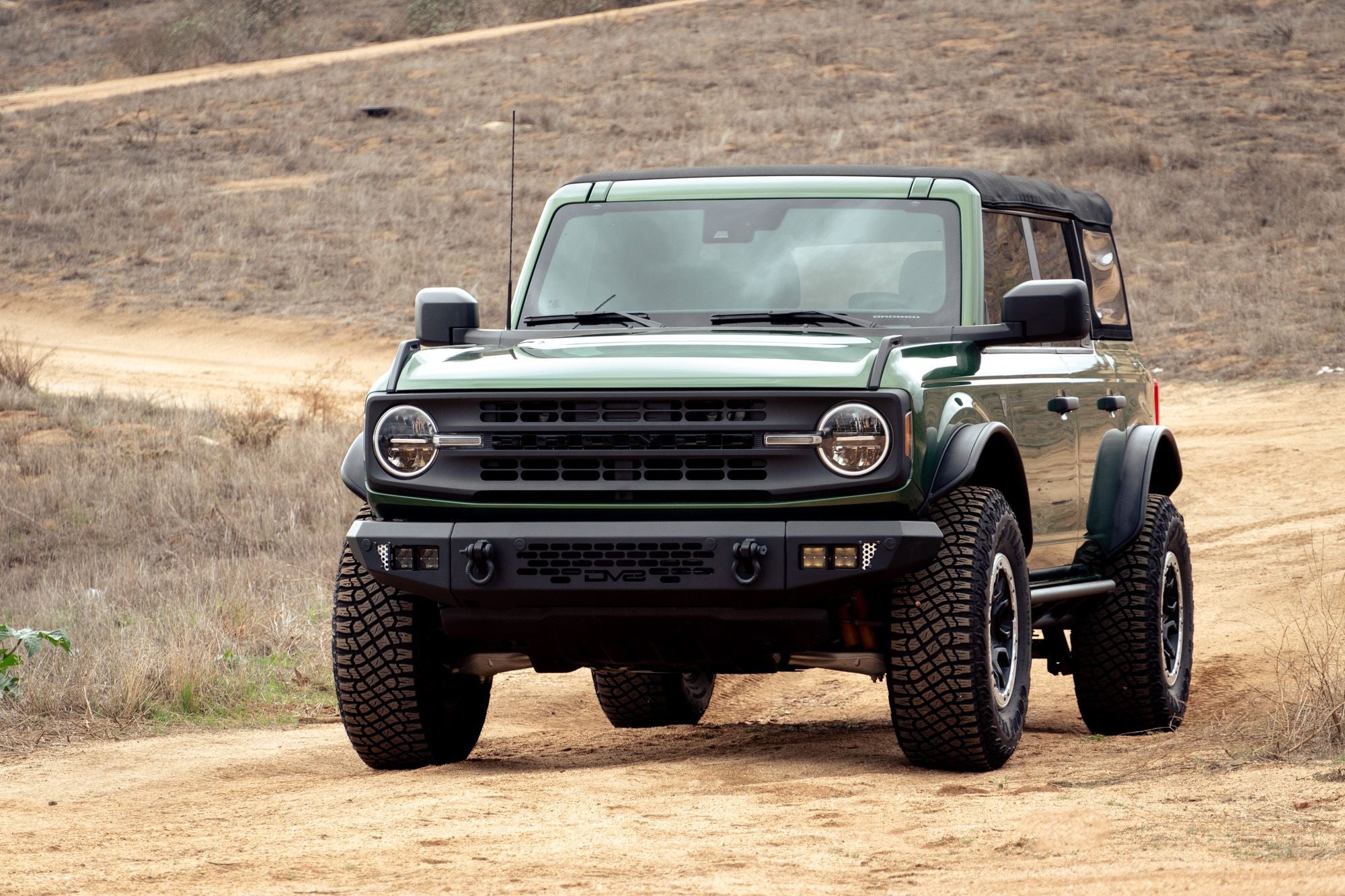

DV8 Offroad tube fender flares installed on green 4-door Ford Bronco, front three-quarter view on dirt trail

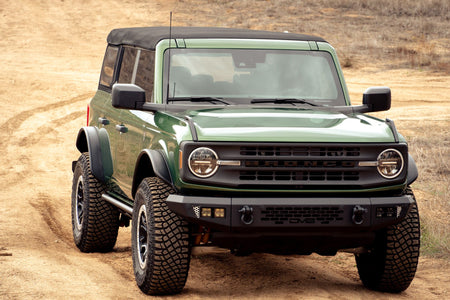

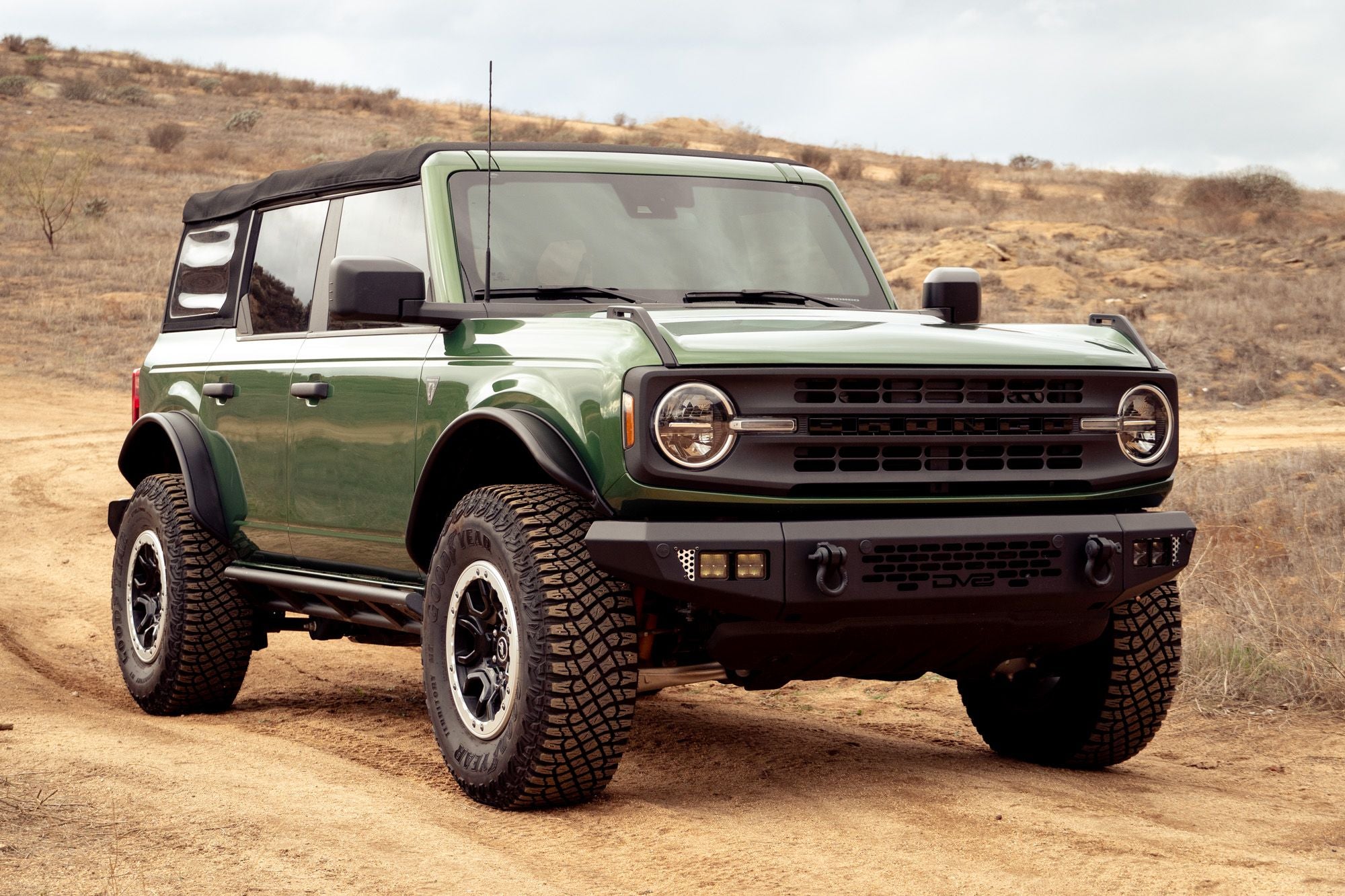

DV8 Offroad tube fender flares installed on green 4-door Ford Bronco, front three-quarter view on hillside trail

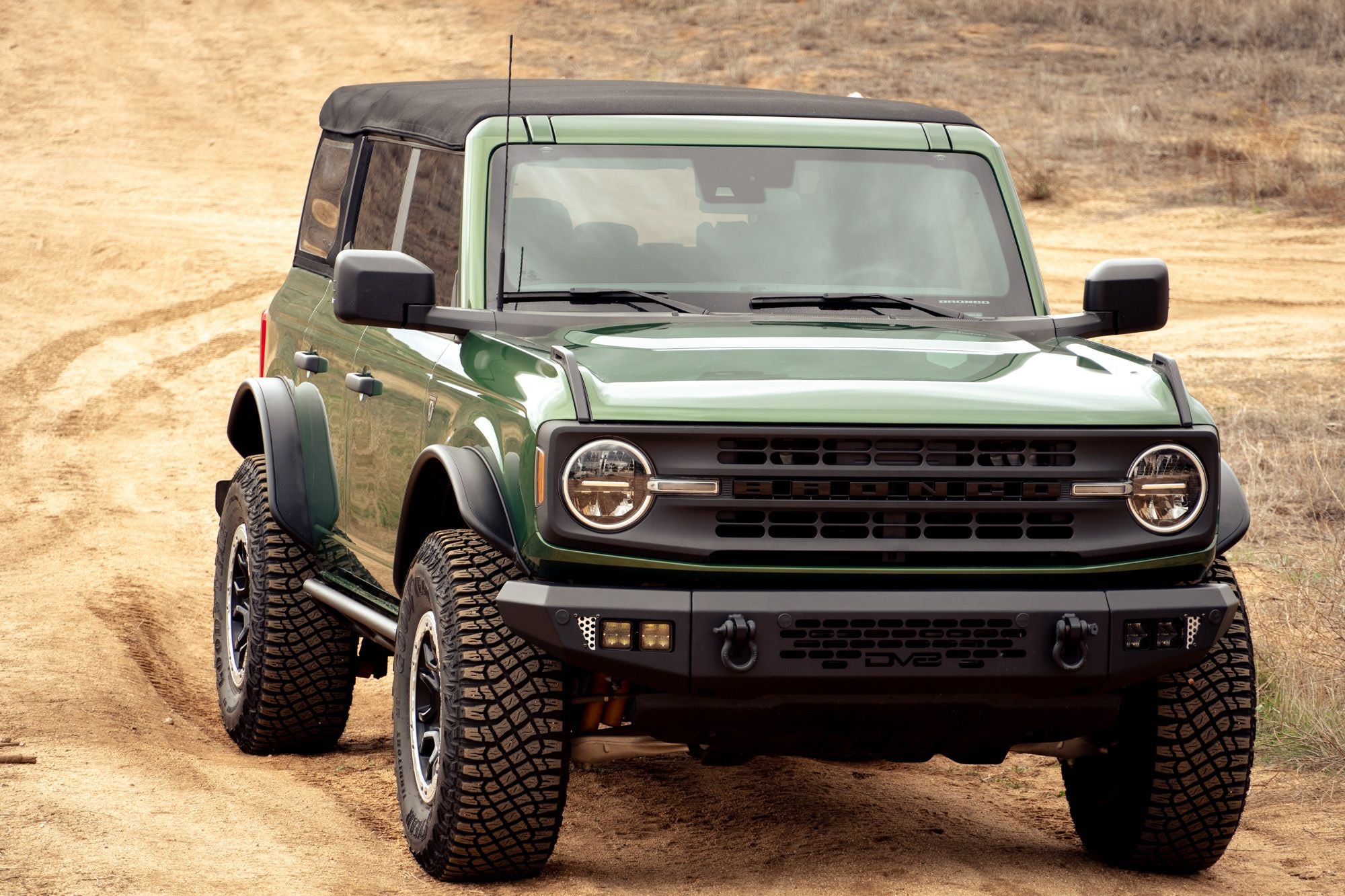

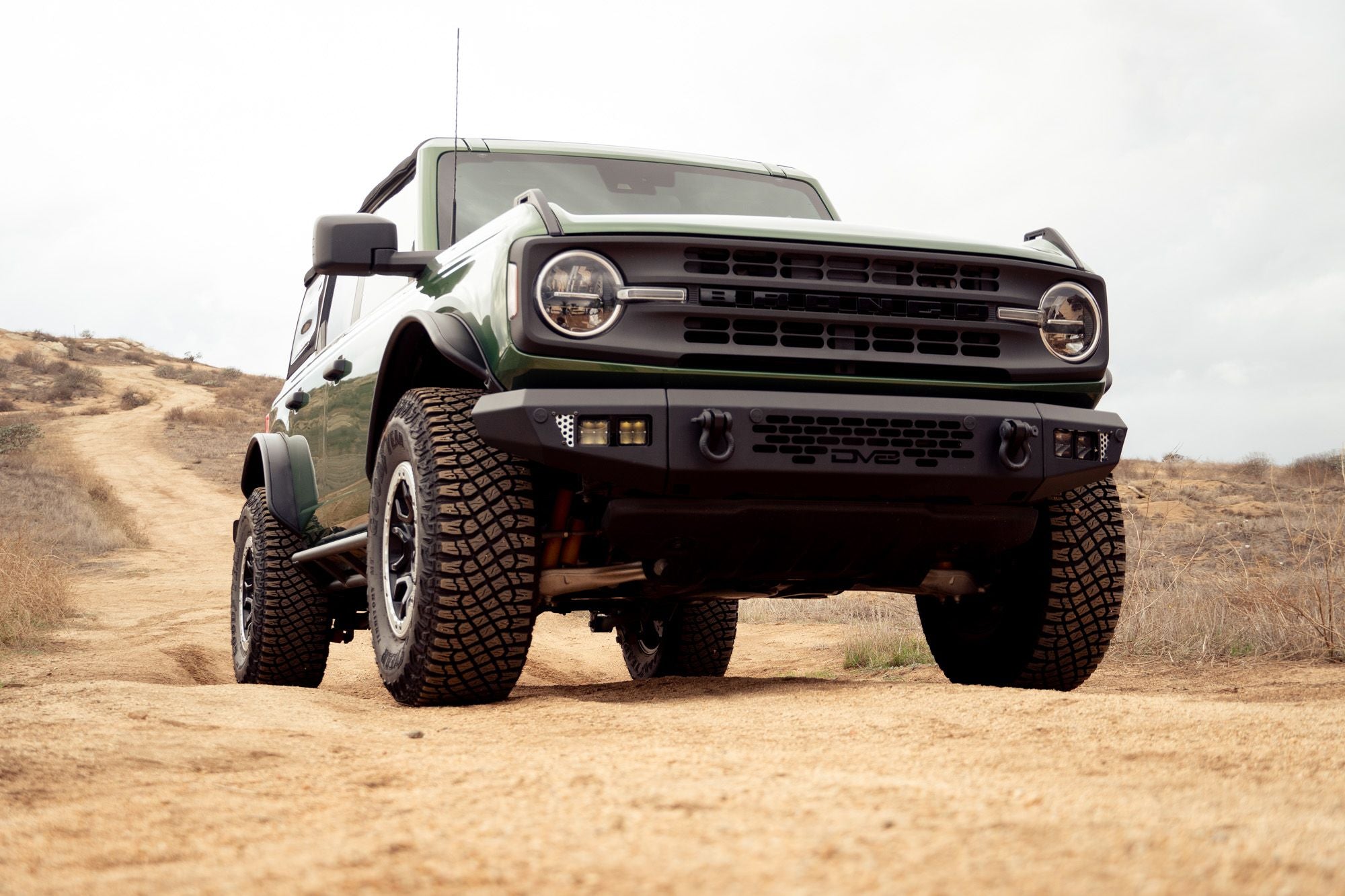

DV8 Offroad tube fender flares installed on green 4-door Ford Bronco, front view on dirt trail
DV8 Offroad tube fender flares installed on green 4-door Ford Bronco, front three-quarter view under cloudy sky
DV8 Offroad tube fender flares installed on green 4-door Ford Bronco, close-up front door and fender on dirt trail

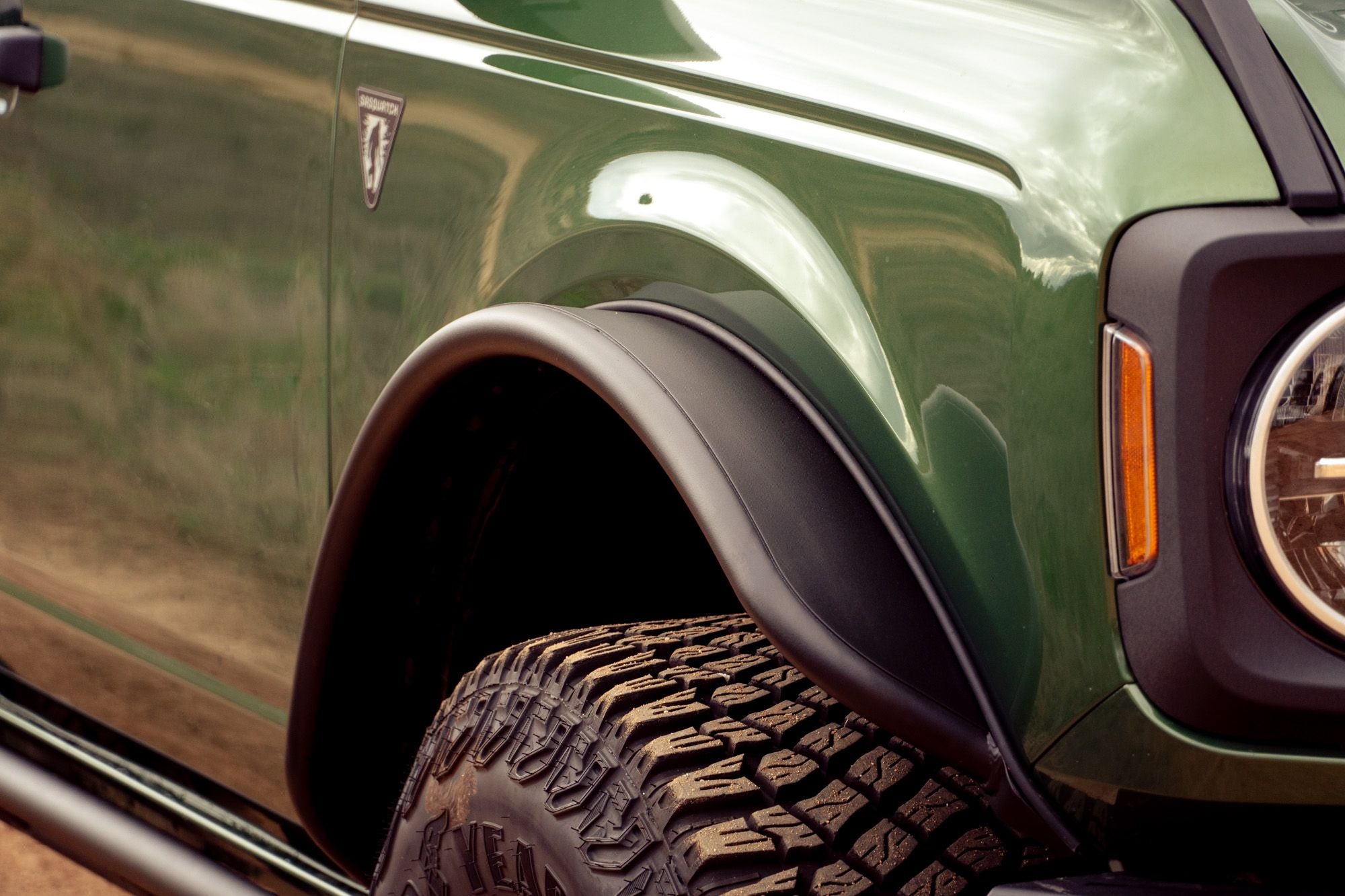

DV8 Offroad tube fender flares installed on green 4-door Ford Bronco, close-up front fender and headlight

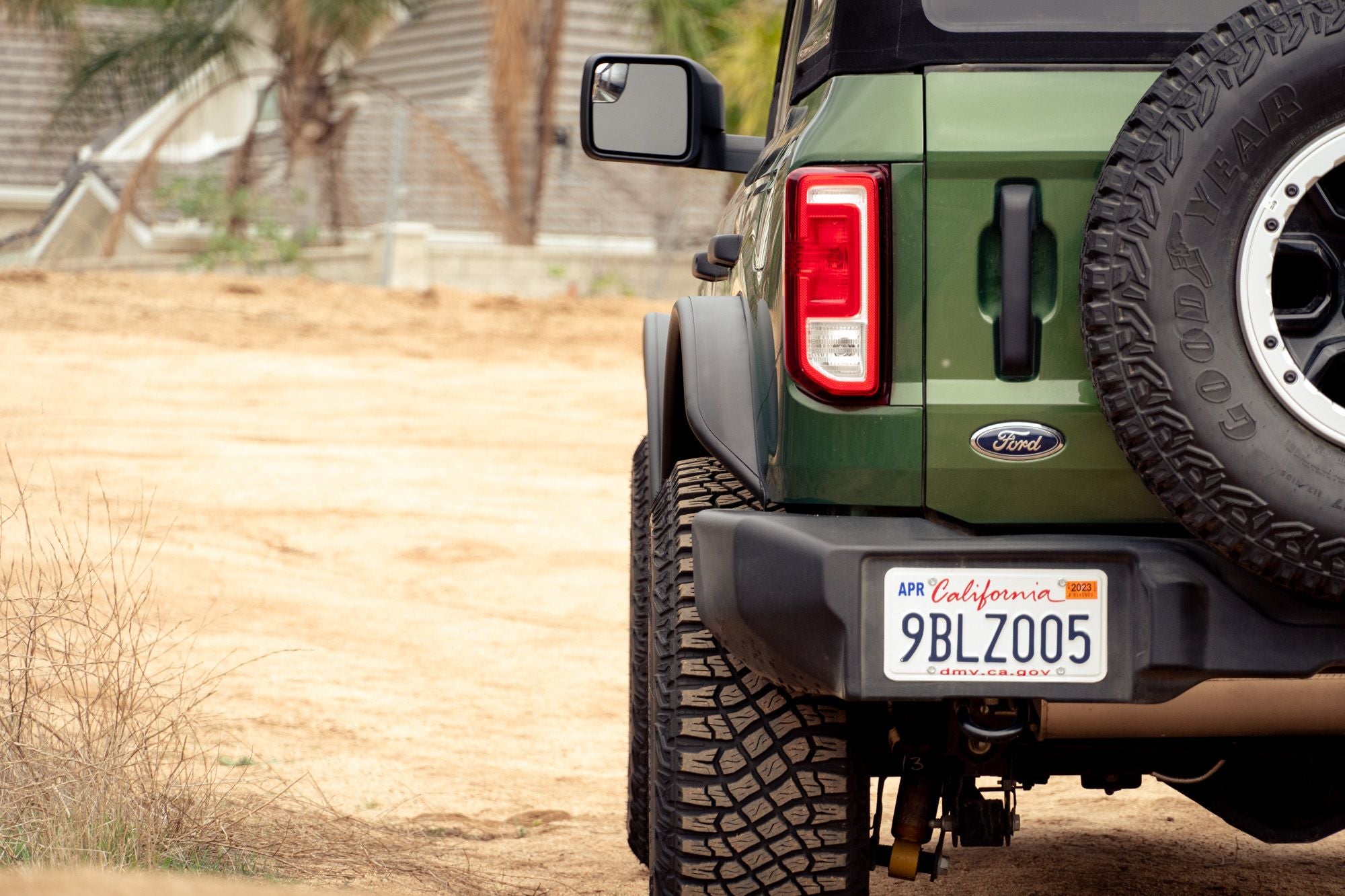

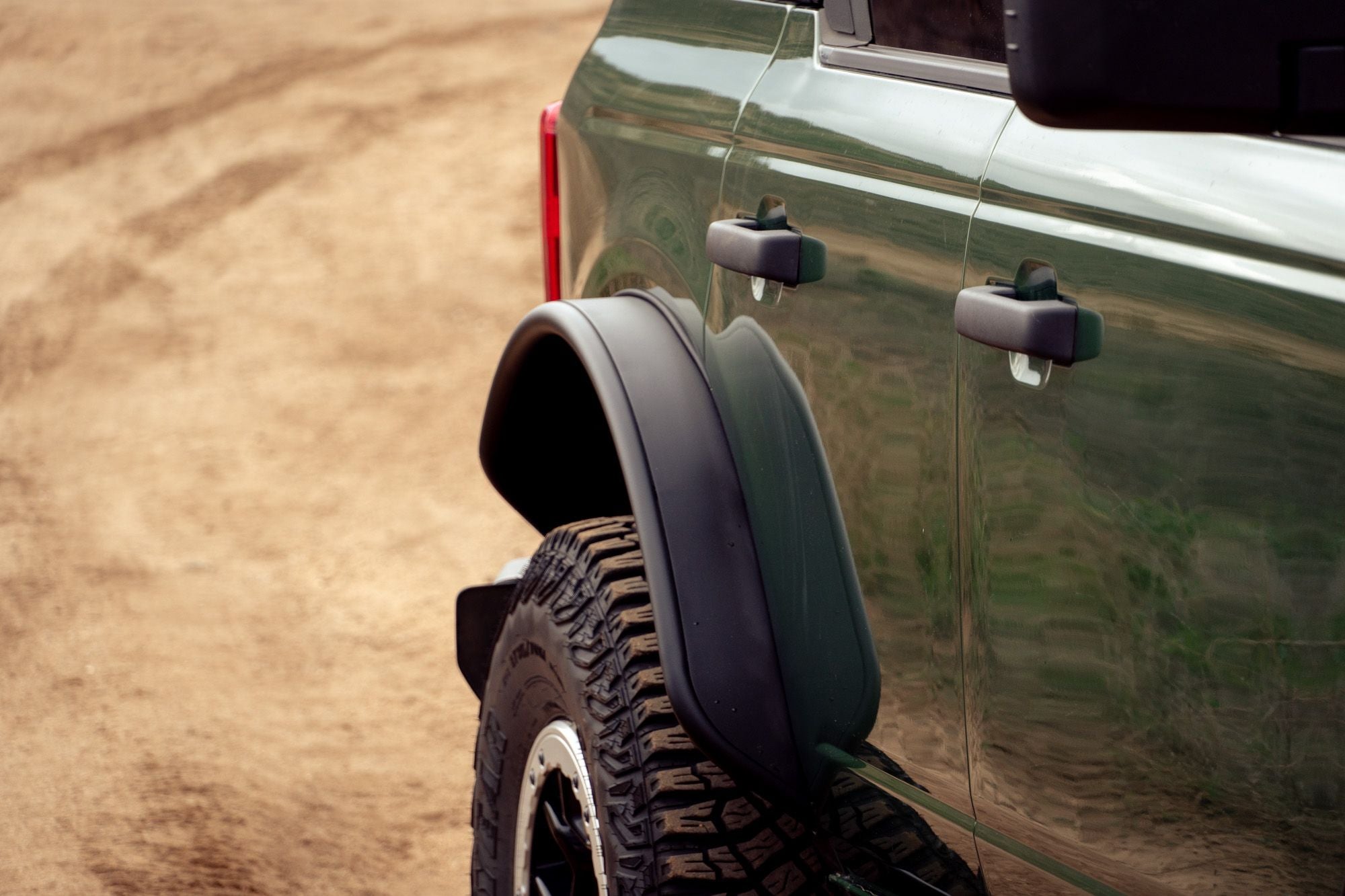

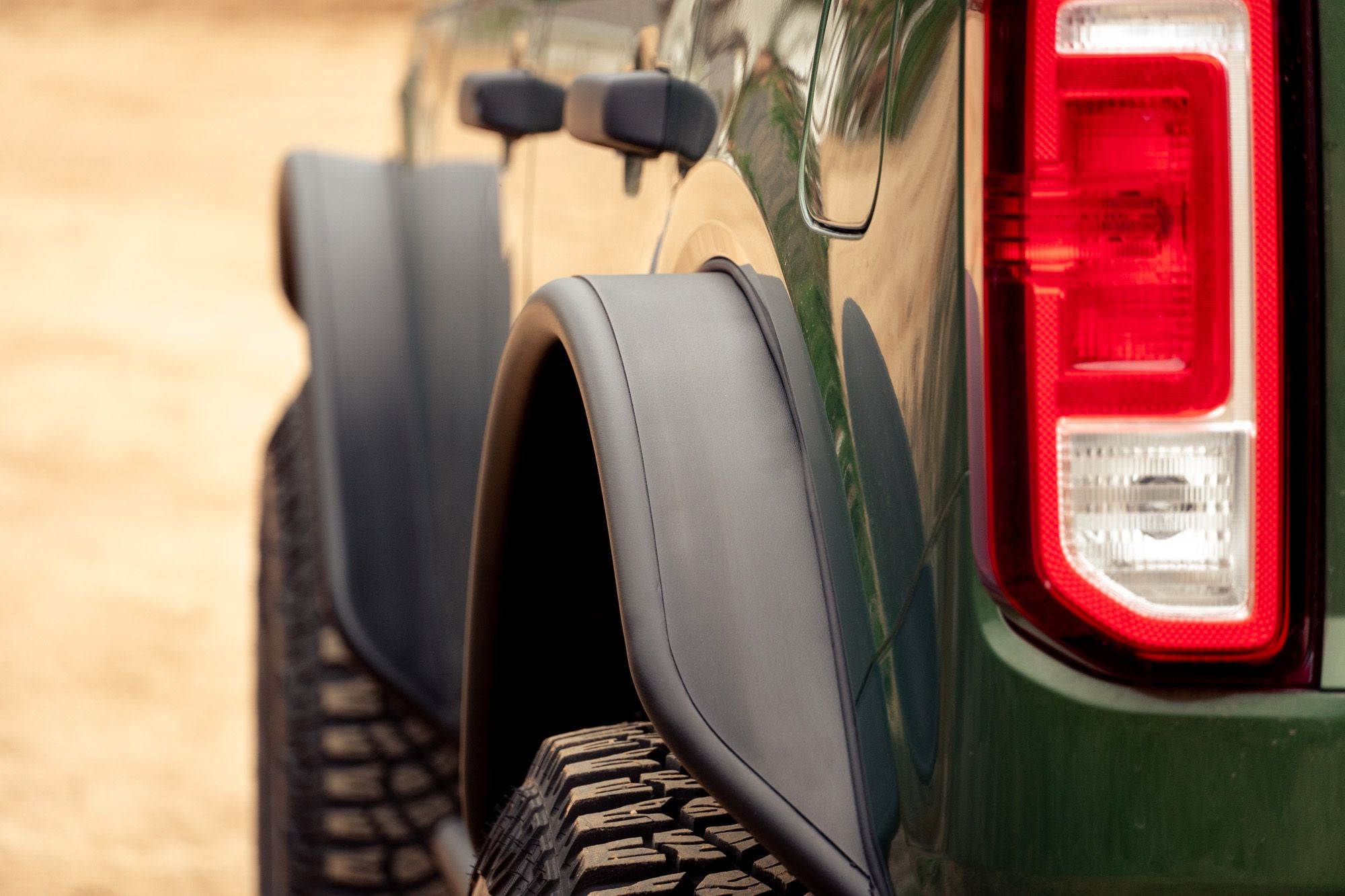

DV8 Offroad tube fender flares installed on green 4-door Ford Bronco, close-up rear fender and taillight

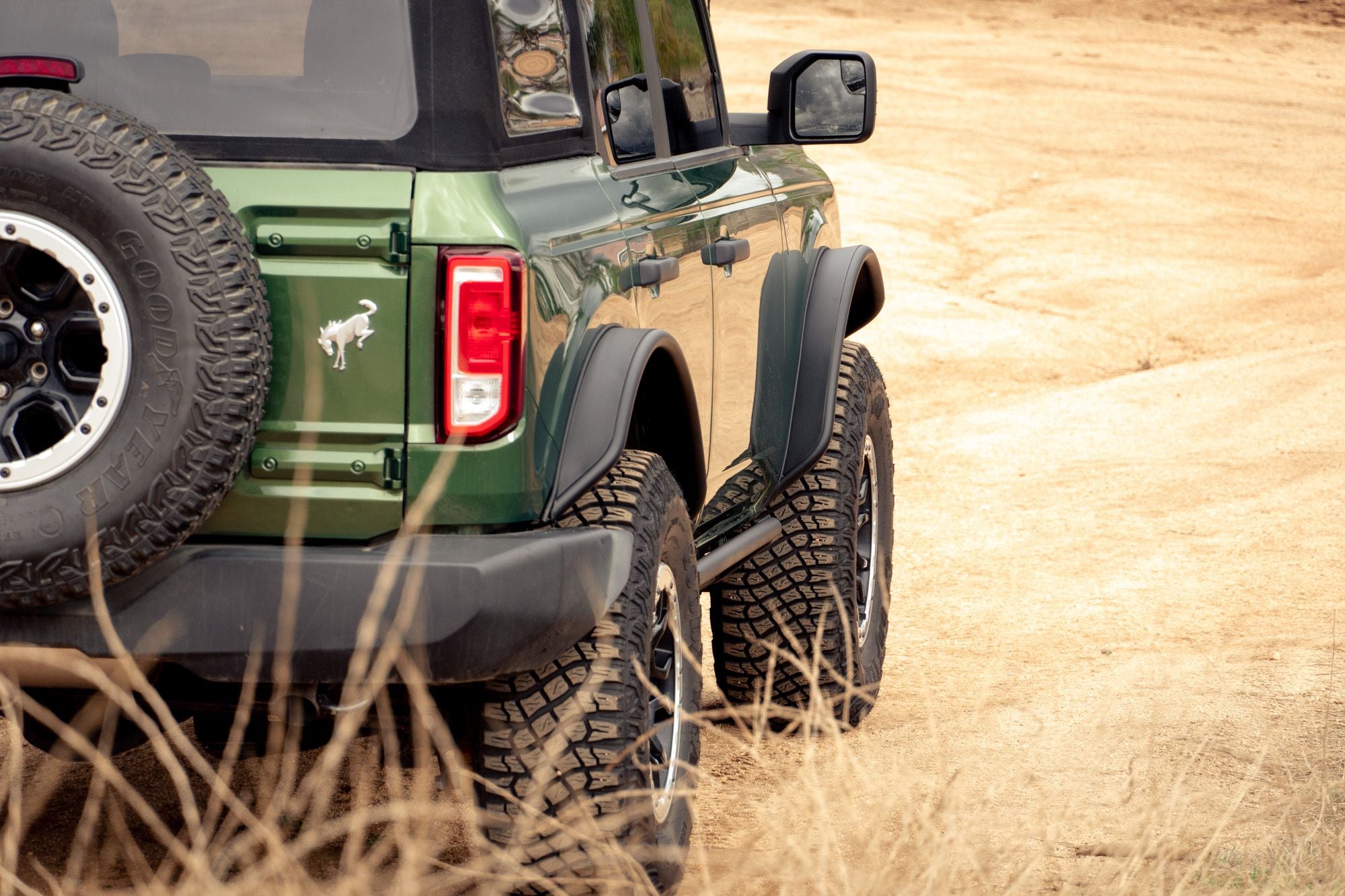

DV8 Offroad tube fender flares installed on green 4-door Ford Bronco, close-up rear quarter with spare tire

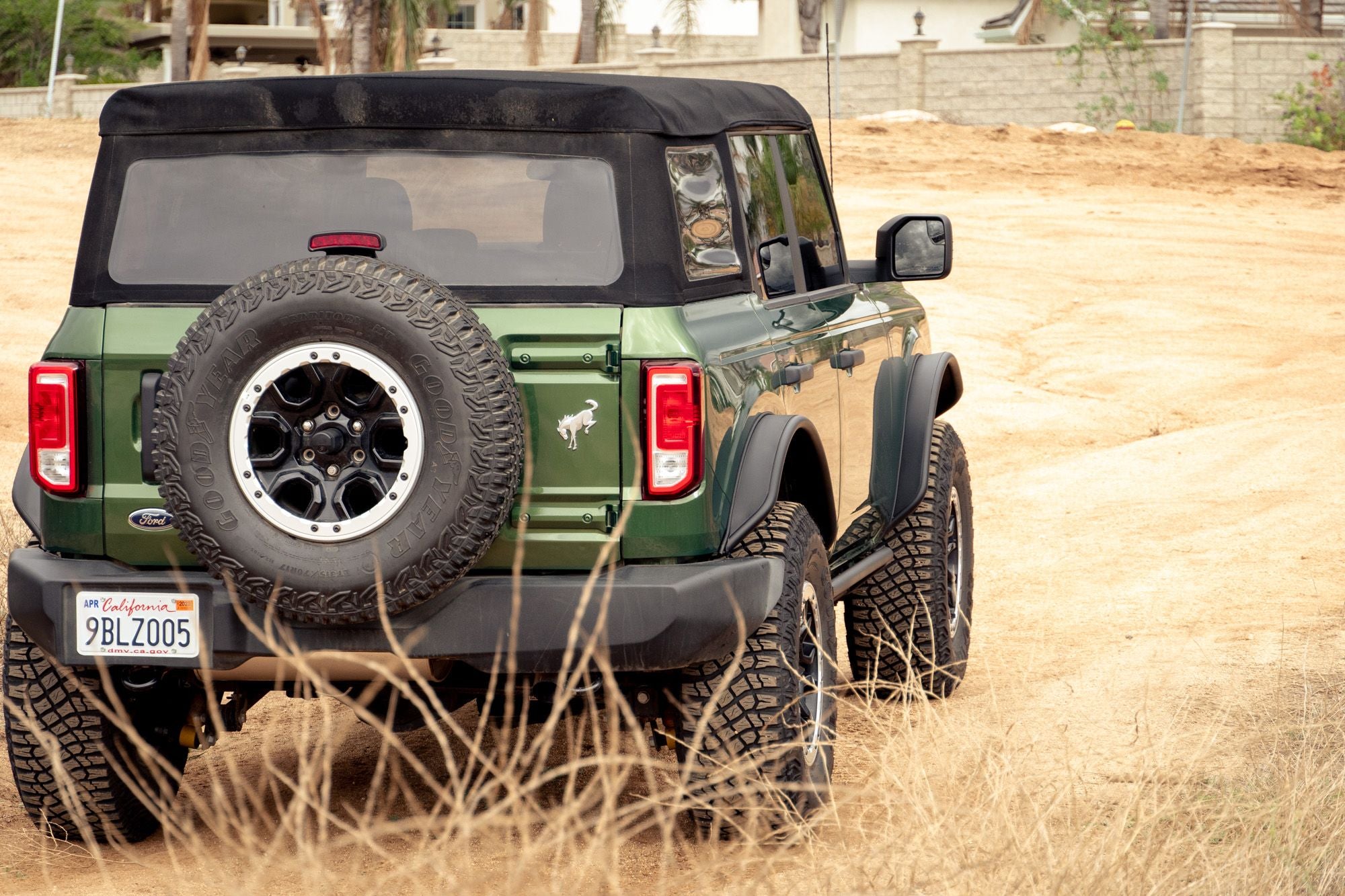

DV8 Offroad tube fender flares installed on green 4-door Ford Bronco, rear three-quarter view with spare tire on dirt field

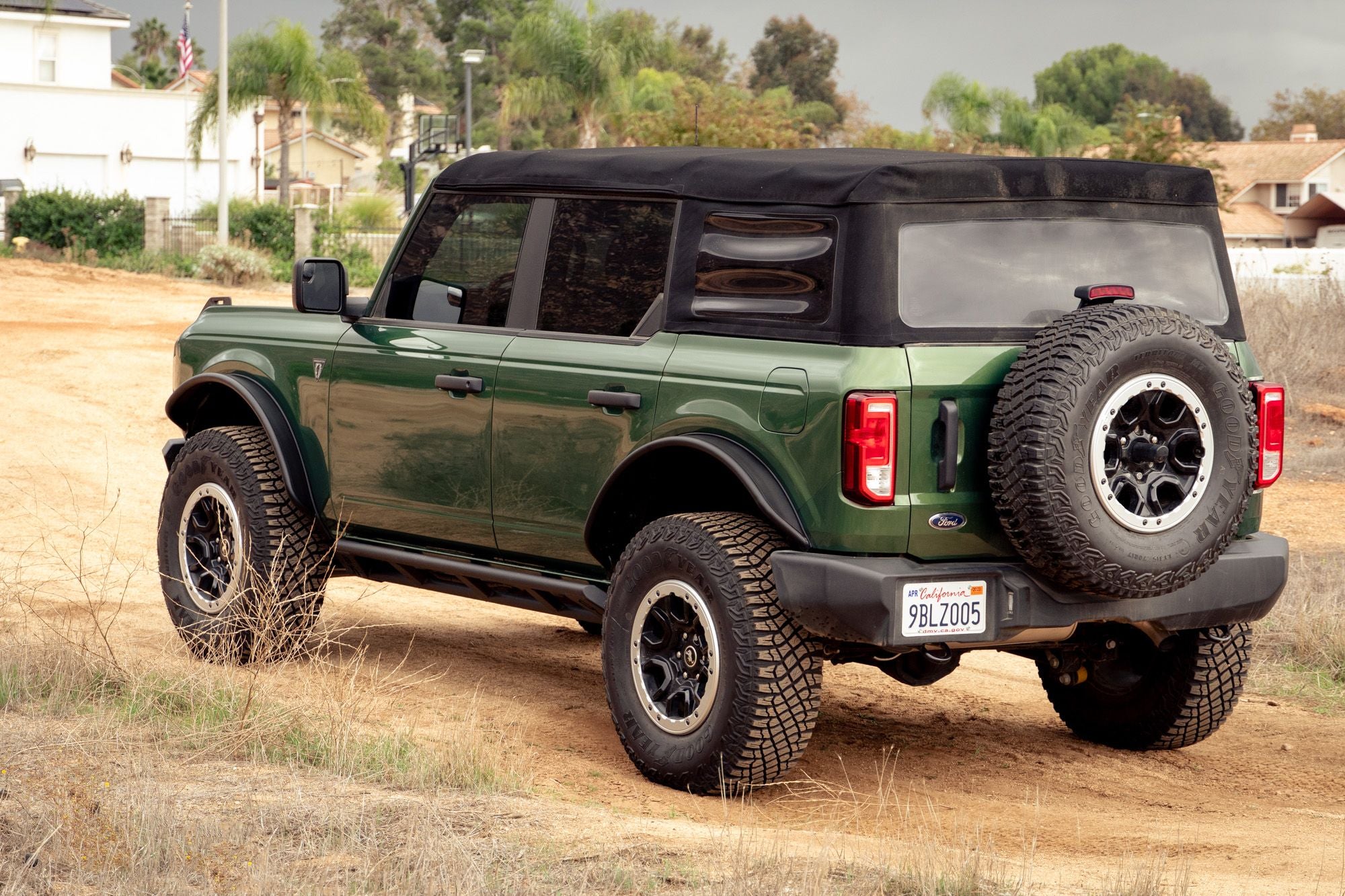

DV8 Offroad tube fender flares installed on green 4-door Ford Bronco, rear three-quarter view with spare tire near building

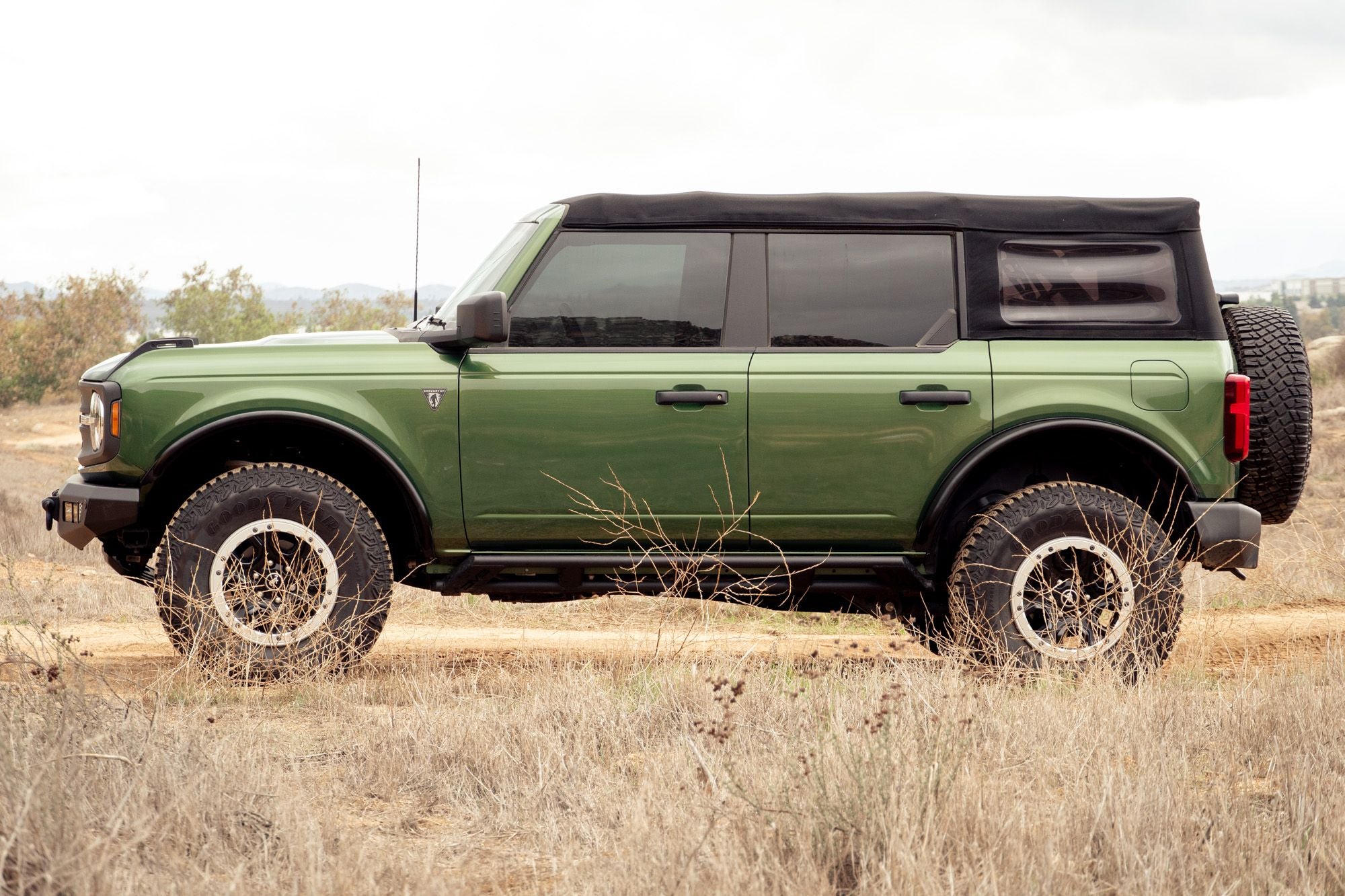

DV8 Offroad tube fender flares installed on green 4-door Ford Bronco, full side profile view with trees in background
DV8 Offroad tube fender flares installed on green 4-door Ford Bronco, full side profile view under cloudy sky
DV8 Offroad tube fender flare for 4-door Ford Bronco, single flare product shot on white background, alternate angle

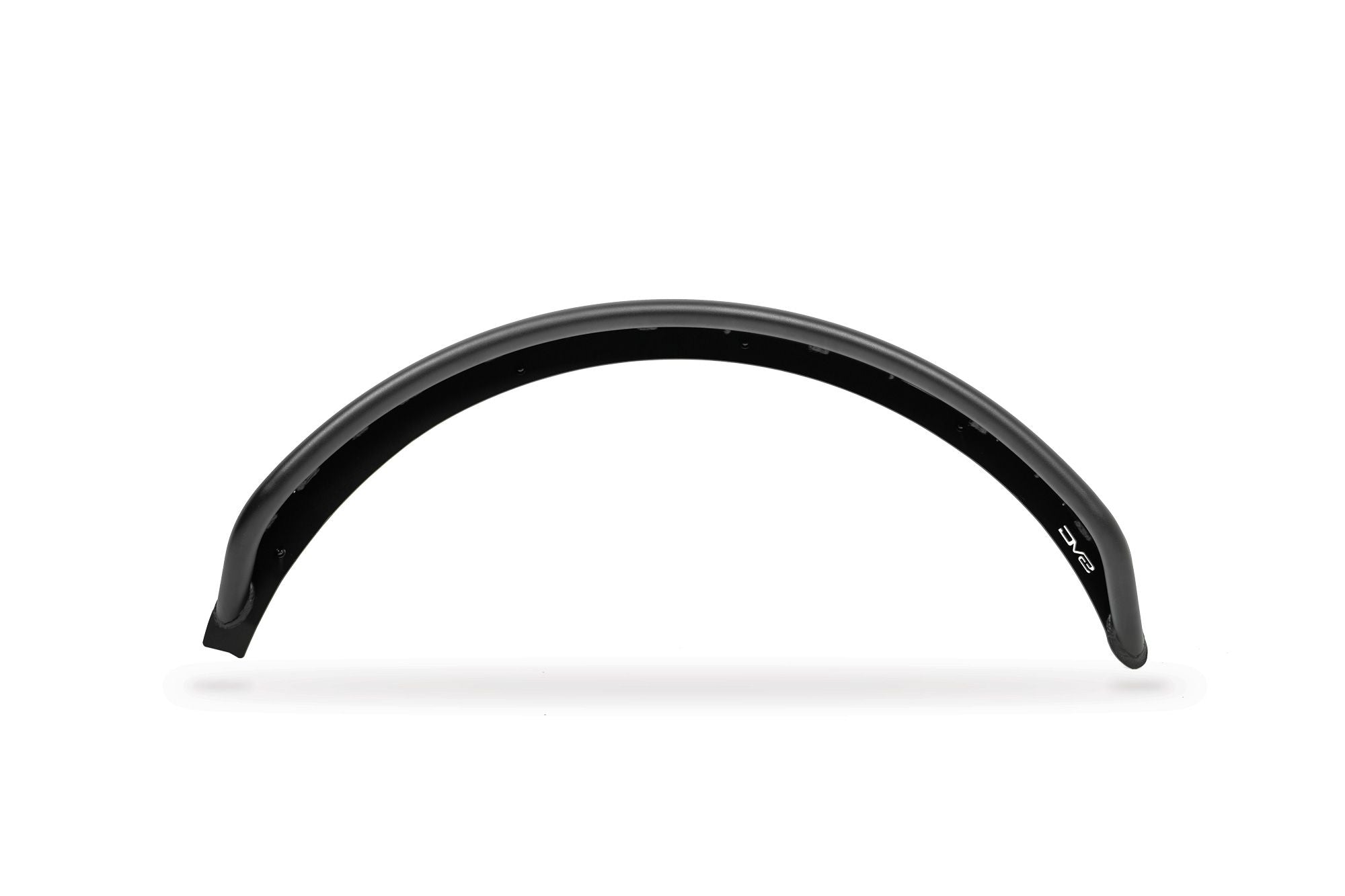

DV8 Offroad tube fender flare for 4-door Ford Bronco, single flare side profile product shot on white background

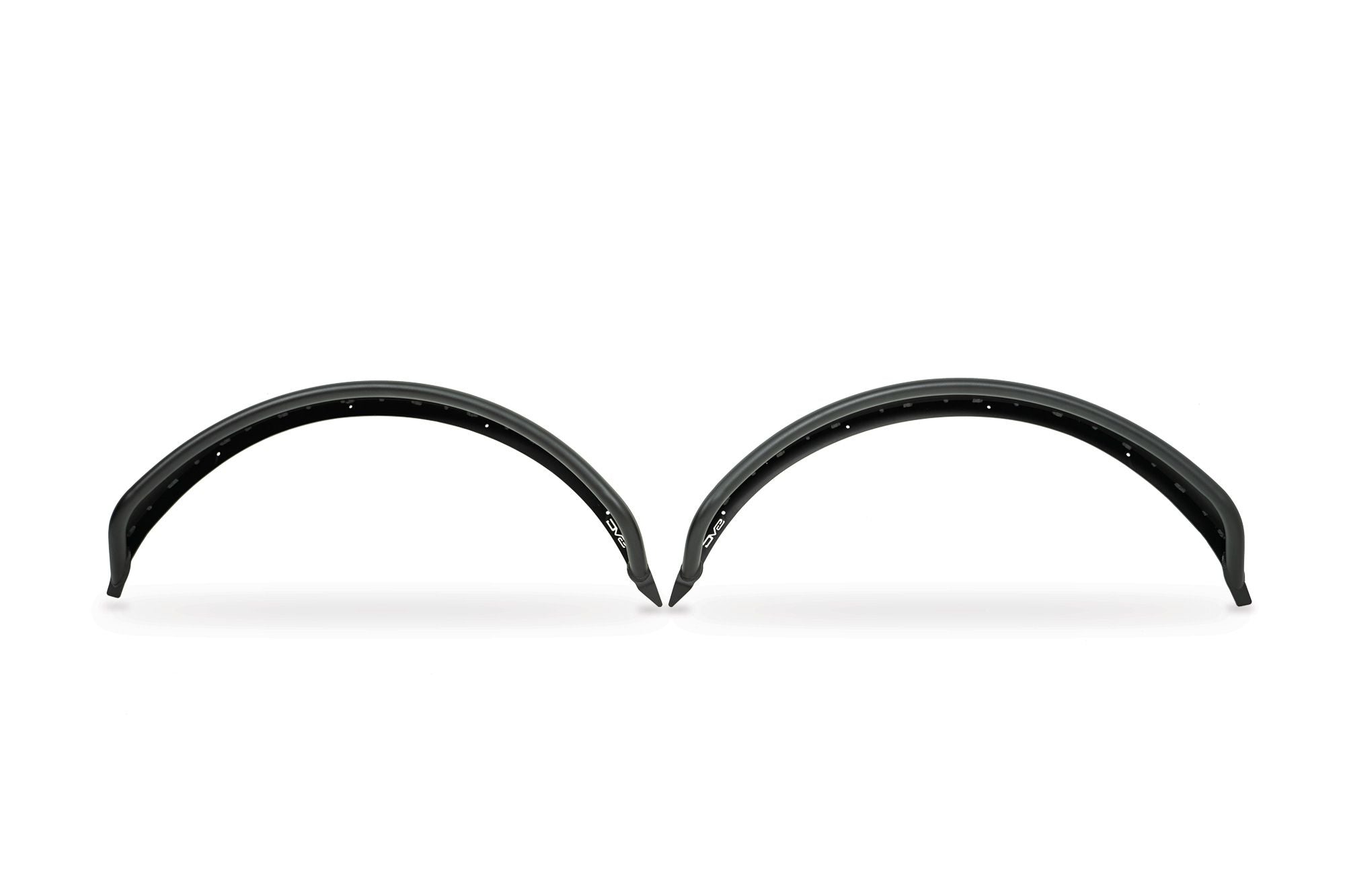

DV8 Offroad tube fender flares for 4-door Ford Bronco, pair of flares product shot on white background

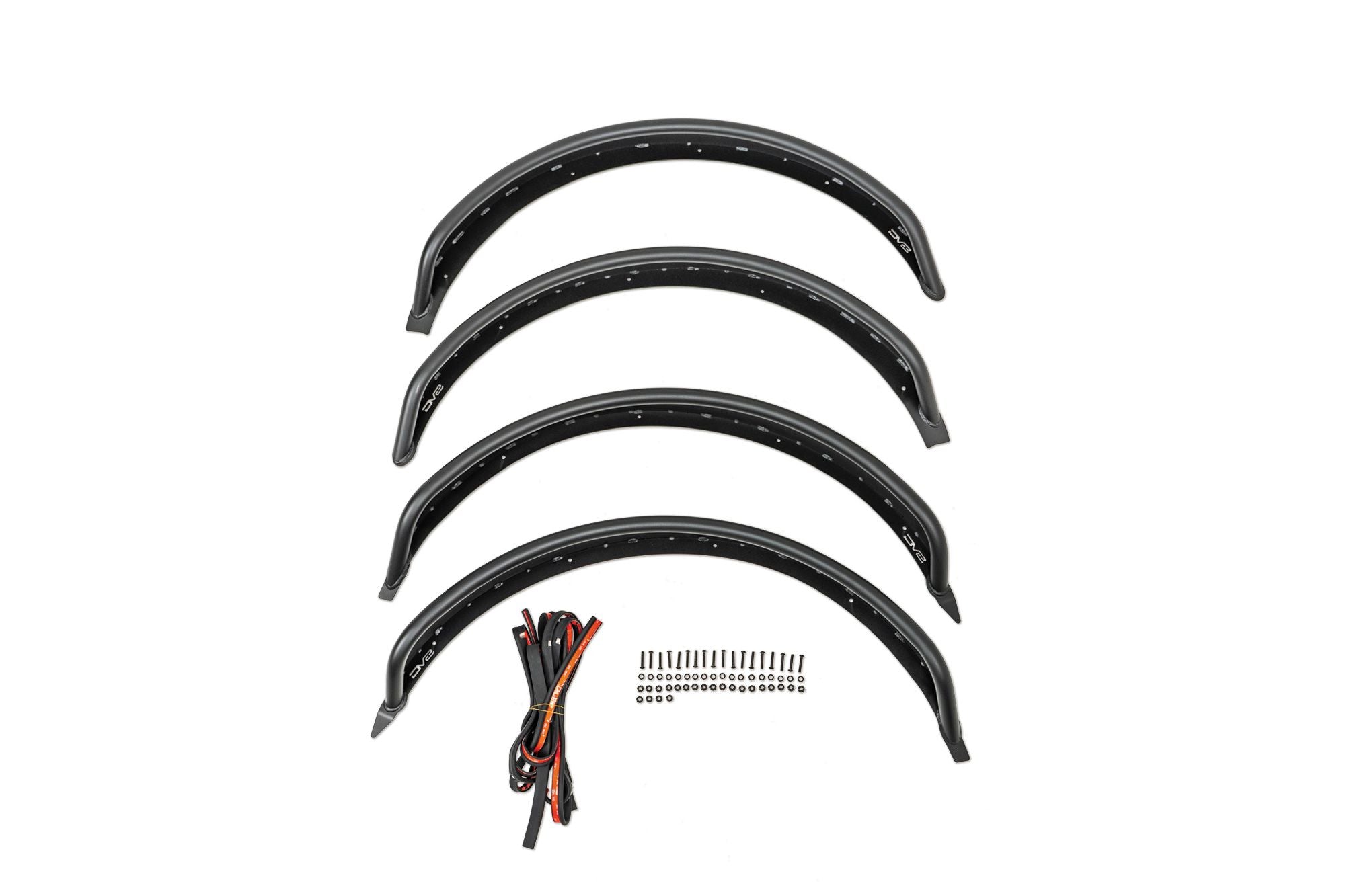

DV8 Offroad tube fender flares kit for 4-door Ford Bronco, full set of four flares with mounting hardware product shot on white background
1 / 17

DV8 Offroad

Part # FDBR-01

Tube Fender Flares 4-DoorFOR THE 2021–2026 Ford Bronco

5.0 1 review

$899.99 $999.99
Pay in full $899.99 $999.99 Today
Free shipping Same-Day, before 2 PM
Fitment checkedWe review every order
1-year warrantyFully covered
Authorized dealerGenuine parts
Jared YoungVerified buyer2025 Badlands, SAS · Glendale, Arizona
Bronco Forge has been so easy to contact. I've talked to them on a Saturday, texted, and called. They are very responsive and helpful.
Fitment & Sensor Notes

2021–2026 full-size Bronco 4-door; excludes Raptor, Everglades, Heritage, and Bronco Sport. Fits Sasquatch and non-Sasquatch packages. Uses factory mounting points without body drilling; inner liners must be loosened for hardware access. Check rear-door and aftermarket rear-bumper clearance during installation.

Install manual
Military discount

Active duty, veterans and families

Not ready yet?

Order or email contact@broncoforge.com and we'll review your year, trim, door configuration, and any other fitment details relevant to the product so you can avoid any surprises later.

2 hr
Install time
Bolt-on
Fitment
2.5 mm and 3.5 mm steel plate
Material
4-door, no R/E/H
2021–2026 Ford Bronco

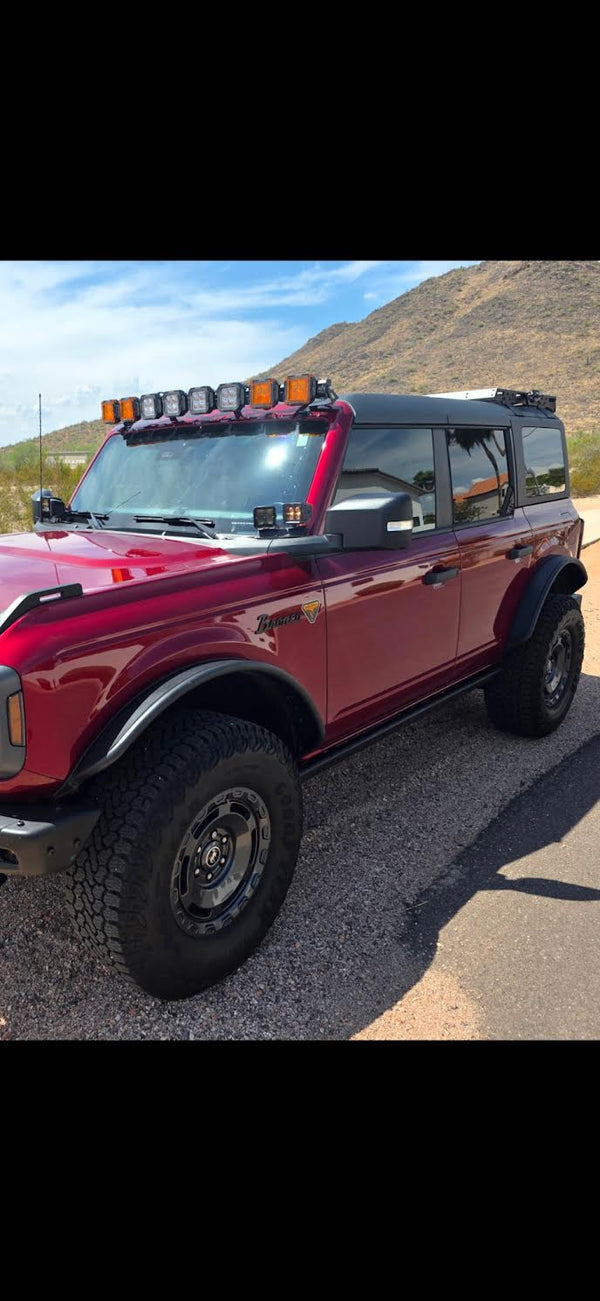

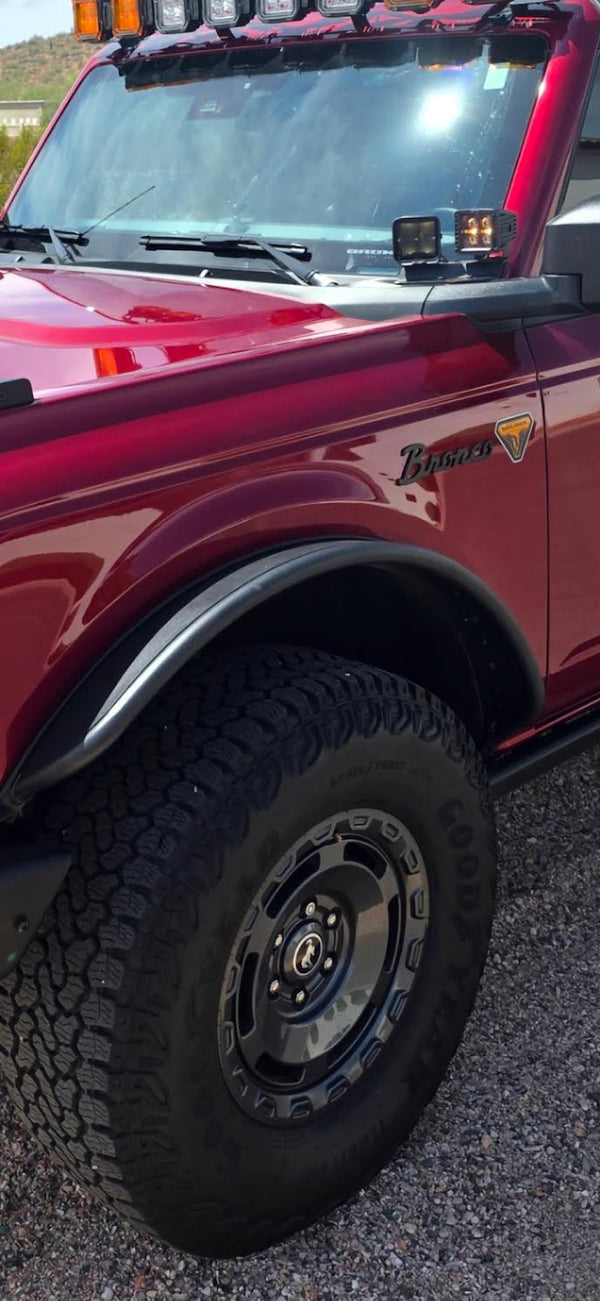

On Customer Broncos

  • 2.5/3.5 mm steel plate; 2.5 mm tube
  • 4-inch front width, tapering to 3.75 inches
  • Four flares with rubber body-edge seals
  • Sasquatch and non-Sasquatch compatible
  • Factory mounting points; no drilling

Fitment chart

Which Ford Bronco trims and model years this part fits
Trim202120222023202420252026
BaseFitsFitsFitsNot made this yearFitsFits
Big BendFitsFitsFitsFitsFitsFits
Black DiamondFitsFitsFitsFitsNot made this yearNot made this year
Outer BanksFitsFitsFitsFitsFitsFits
BadlandsFitsFitsFitsFitsFitsFits
WildtrakFitsFitsFitsFitsNot made this yearNot made this year
First EditionFitsNot made this yearNot made this yearNot made this yearNot made this yearNot made this year
EvergladesNot made this yearDoes not fitDoes not fitDoes not fitNot made this yearNot made this year
Heritage EditionNot made this yearNot made this yearDoes not fitDoes not fitDoes not fitDoes not fit
Stroppe EditionNot made this yearNot made this yearNot made this yearNot made this yearFitsFits
RaptorNot made this yearDoes not fitDoes not fitDoes not fitDoes not fitDoes not fit

Fits Doesn't fit – Not made that year

  • Doors: 4-Door

Details

DV8 Offroad FDBR-01 Tube Fender Flares replace the factory fender flares on the 2021–2026 Ford Bronco 4-door with four steel tube-and-plate flares. Their open-profile design provides additional tire-to-fender clearance for off-road articulation while helping deflect rocks and debris from the painted body.

Steel Flares with a Narrower Outer Profile

The construction combines 2.5 mm and 3.5 mm steel plate with 2.5 mm outer tubing, finished in micro-texture black powder coat. Each flare measures 4 inches wide at its front edge and tapers to 3.75 inches through the middle and rear. Rubber seals sit between the flares and the body to reduce trapped dust and small stones. The new shape offers more room at the wheel opening, but actual tire clearance depends on tire size, wheel offset, and suspension travel.

Factory Mounting Points and Installation Access

Installation reuses the Bronco's factory fender mounting locations without drilling or cutting the body. The original quick-release flares are removed, and the inner fender liners are loosened to reach the new mounting hardware; the replacements are not quick-release. DV8 estimates two hours, although stubborn factory flare clips and alignment can extend installation time. Check rear-door and aftermarket rear-bumper clearance before tightening the flares. These fit Sasquatch and non-Sasquatch models but exclude Raptor, Everglades, and Heritage editions.

What's Included

  • 4 tube fender flares
  • Rubber body-edge seals
  • Installation hardware

Specs

Specifications for 2021-2026 Ford Bronco Tube Fender Flares 4-Door | DV8 Offroad
Vehicle2021–2026 Ford Bronco
Trims4-door, no R/E/H
Doors4-Door
FitmentBolt-on
Install time2 hr
Material2.5 mm and 3.5 mm steel plate; 2.5 mm steel tube; micro-texture black finish
Warranty1 Year
BrandDV8 Offroad
Part numberFDBR-01
GTIN810087811396
Questions

Which Broncos fit these tube fender flares?

DV8 lists FDBR-01 for 2021–2026 full-size Ford Broncos, excluding Raptor, Everglades, and Heritage models. Bronco Forge lists this kit for the 4-door configuration. Sasquatch and non-Sasquatch packages are supported; it does not fit Bronco Sport.

How wide are the flares?

Each flare measures 4 inches at the front edge and tapers to 3.75 inches through the middle and rear, according to DV8.

What are the flares made from?

DV8 specifies 2.5 mm and 3.5 mm steel plate, 2.5 mm outer steel tubing, and a micro-texture black finish. Rubber seals are included to reduce debris collecting against the body.

Do I need to drill or cut my Bronco to install them?

No. DV8 specifies a bolt-on installation using factory mounting locations. You must remove the factory flares and loosen portions of the inner fender liners to access the mounting hardware.

Can these flares be removed with the factory quick-release system?

No. The replacement steel flares fasten with bolts and nuts rather than the factory quick-release clips. Accessing the mounting hardware may require loosening the inner fender liners.

Will the rear flares clear my aftermarket rear bumper and doors?

Clearance depends on the bumper design and installation alignment. Check the rear bumper corners and the rear doors throughout their opening and closing movement before fully tightening the flare hardware.

How much extra tire clearance do they provide?

DV8 states that the open flare design increases clearance for suspension articulation but does not publish a universal gain in inches. Tire size, wheel offset, suspension setup, and compression travel affect actual clearance.
