THRET Offroad
Part # 602I-1790U-14
602 Maze Beadlock WheelFOR THE 2021–2027 Ford Bronco
$458.00
This part + add-ons
Set of 4: $1,832.00
Free shipping
Ships within a week
Fitment checkedWe review every order
2-year warrantyFully covered
Authorized dealerGenuine parts
Bronco Forge has been so easy to contact. I've talked to them on a Saturday, texted, and called. They are very responsive and helpful.
Fitment & Sensor Notes
Bolt Pattern: 6x139.7, matches 2021-2027 Ford Bronco factory pattern. Size: 17x9. Offset: -14mm. Hub Bore: 106.1mm. Backspace: 4.4 inches. Load Rating: 3,400 lbs. Off-road use only; not DOT approved for street use in most states. Confirm trim-specific offset needs before ordering. Not accepted for return once mounted.
Military discount
Active duty, veterans and families
Not ready yet?
Order or email contact@broncoforge.com and we'll review your year, trim, door configuration, and any other fitment details relevant to the product so you can avoid any surprises later.
2 hr
Install time
6x139.7
Fitment
Cast aluminum
Material
All trims
2021–2027 Ford Bronco
Completes the setup
Parts that go with this one.
Fitment chart
| Trim | 2021 | 2022 | 2023 | 2024 | 2025 | 2026 |
|---|---|---|---|---|---|---|
| Base | Fits | Fits | Fits | Not made this year | Fits | Fits |
| Big Bend | Fits | Fits | Fits | Fits | Fits | Fits |
| Black Diamond | Fits | Fits | Fits | Fits | Not made this year | Not made this year |
| Outer Banks | Fits | Fits | Fits | Fits | Fits | Fits |
| Badlands | Fits | Fits | Fits | Fits | Fits | Fits |
| Wildtrak | Fits | Fits | Fits | Fits | Not made this year | Not made this year |
| First Edition | Fits | Not made this year | Not made this year | Not made this year | Not made this year | Not made this year |
| Everglades | Not made this year | Fits | Fits | Fits | Not made this year | Not made this year |
| Heritage Edition | Not made this year | Not made this year | Fits | Fits | Fits | Fits |
| Stroppe Edition | Not made this year | Not made this year | Not made this year | Not made this year | Fits | Fits |
| Raptor | Not made this year | Fits | Fits | Fits | Fits | Fits |
Fits Doesn't fit – Not made that year
- Doors: 2-Door and 4-Door
Details
Fitment
The THRET Offroad Maze 602 uses the Ford Bronco's 6x139.7 bolt pattern and is listed here for the 2021-2027 Ford Bronco. Hub bore: 106. Load rating: 3,400 lbs per wheel. THRET lists this wheel for off-road use only; check local rules before street use.
Available sizes: 17x9. Offset options: -14mm. Backspacing: 4.4". Confirm tire clearance for your tire size, suspension, and fender setup before mounting.
Best For
Bronco owners who air down hard off-road and want a true beadlock to help keep the tire seated at low pressure.
Design

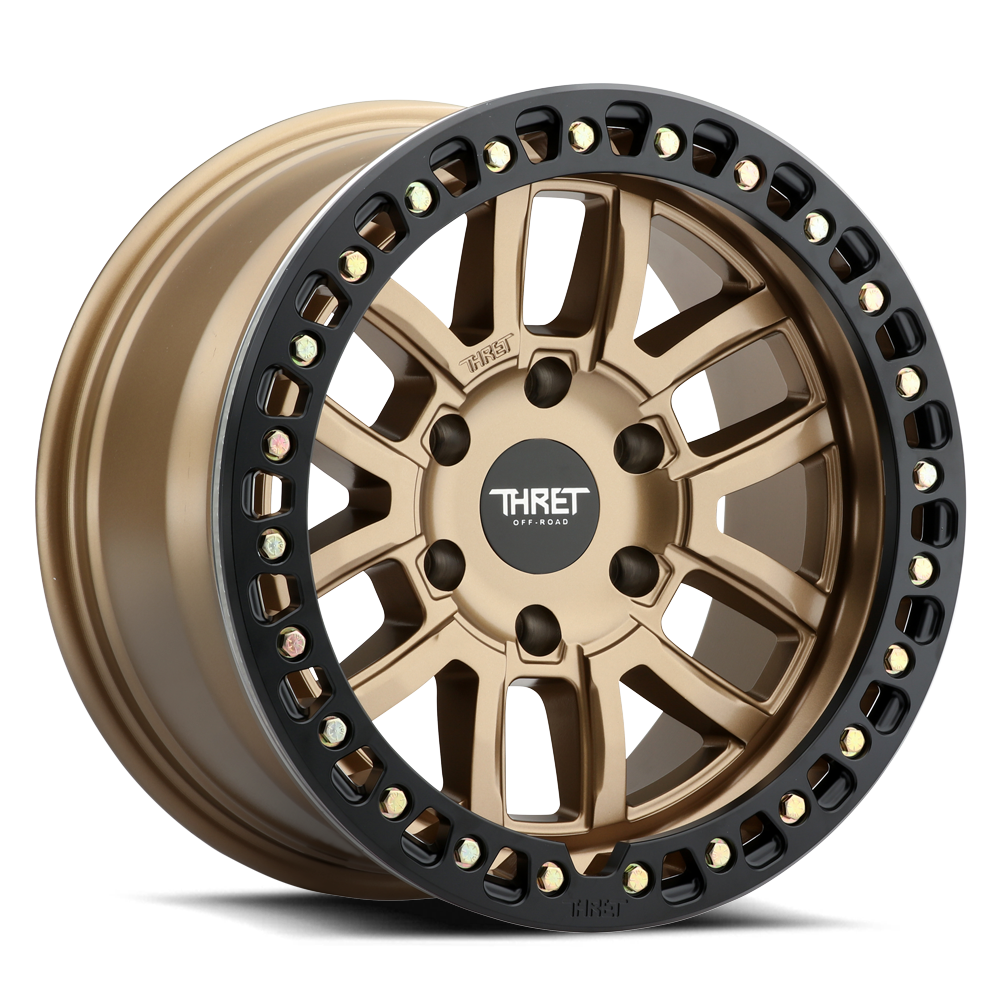

The 602 Maze is a cast aluminum wheel with a forged beadlock ring. The ring clamps the outer tire bead to the wheel instead of only holding it with air pressure. That is the main reason to choose it over a standard wheel.
Size, Offset & Stance
Offset changes how far the wheel sits in or out. A more negative offset pushes the wheel farther toward the fender; a more positive offset keeps it farther in. Use the size menu to compare the exact offset and backspacing before you order.
Finish options: Bronze/Matte Black, Matte Black/Machined, Machined. Not every finish is offered in every size.
True Beadlock Setup
The ring uses 24 Grade 8 bolts. THRET Offroad calls for a crisscross torque sequence of 10 ft-lbs, 20 ft-lbs, then 25 ft-lbs. Re-torque the ring after 50 to 100 miles and again at 200 miles. THRET lists the 602 Maze for off-road use only, so check local rules before using it on public roads.
Installation
Have the tires mounted and balanced by a tire shop. These THRET wheel applications work with factory TPMS sensors and use a conical lug seat. Confirm your lug nuts match the wheel before installation. Wheels are not accepted for return once a tire has been mounted.
Specs
| Vehicle | 2021–2027 Ford Bronco |
|---|---|
| Trims | All trims |
| Doors | 2-Door / 4-Door |
| Fitment | 6x139.7 |
| Install time | 2 hr |
| Material | Cast aluminum |
| Warranty | 2 Year |
| Brand | THRET Offroad |
| Part number | 602I-1790U-14 |
| GTIN | 0840177468940 |
Questions
How tight should the beadlock ring bolts be?
THRET Offroad calls for three passes in a crisscross pattern: 10 ft-lbs, then 20 ft-lbs, then 25 ft-lbs. Do not go past 25 ft-lbs, and do not use an impact gun on the ring bolts.
When do I re-torque the ring bolts?
Re-torque them after 50 to 100 miles and again at 200 miles. After that, check them often during trail use and any time you air down.
Is the 602 Maze street legal?
THRET Offroad lists this wheel for off-road use only. It is not DOT approved for street use in most states.
Do I need new lug nuts?
The 602 Maze uses a conical acorn and spline lug seat. Check that your lug nuts match that seat style before you mount the wheels, or pick up a set that does.
Will my factory TPMS sensors work?
Yes. THRET Offroad lists the 602 Maze as TPMS compatible, so your factory sensors move over to the new wheels.
Can any tire shop mount these?
Pick a shop that has worked with beadlocks. The ring adds weight at the outer lip, so mounting and balancing take more care.
