Part # BE20SW105W
Elite Series 20-Inch Single Row LED Light BarUniversal fit
$229.99
This part + add-ons
Free shipping
Same-Day, before 2 PM
Fitment checkedWe review every order
1-year warrantyFully covered
Authorized dealerGenuine parts
Bronco Forge has been so easy to contact. I've talked to them on a Saturday, texted, and called. They are very responsive and helpful.
Fitment & Sensor Notes
Compatible with DV8 bracket BESLDBKTSM. Wiring harness required, sold separately. Can be run solo or paired for primary trail lighting. For off-road use only.
Military discount
Active duty, veterans and families
Not ready yet?
Order or email contact@broncoforge.com and we'll review your year, trim, door configuration, and any other fitment details relevant to the product so you can avoid any surprises later.
30 min
Install time
Universal + wire
Fitment
Aluminum
Material
All trims
Universal
Details

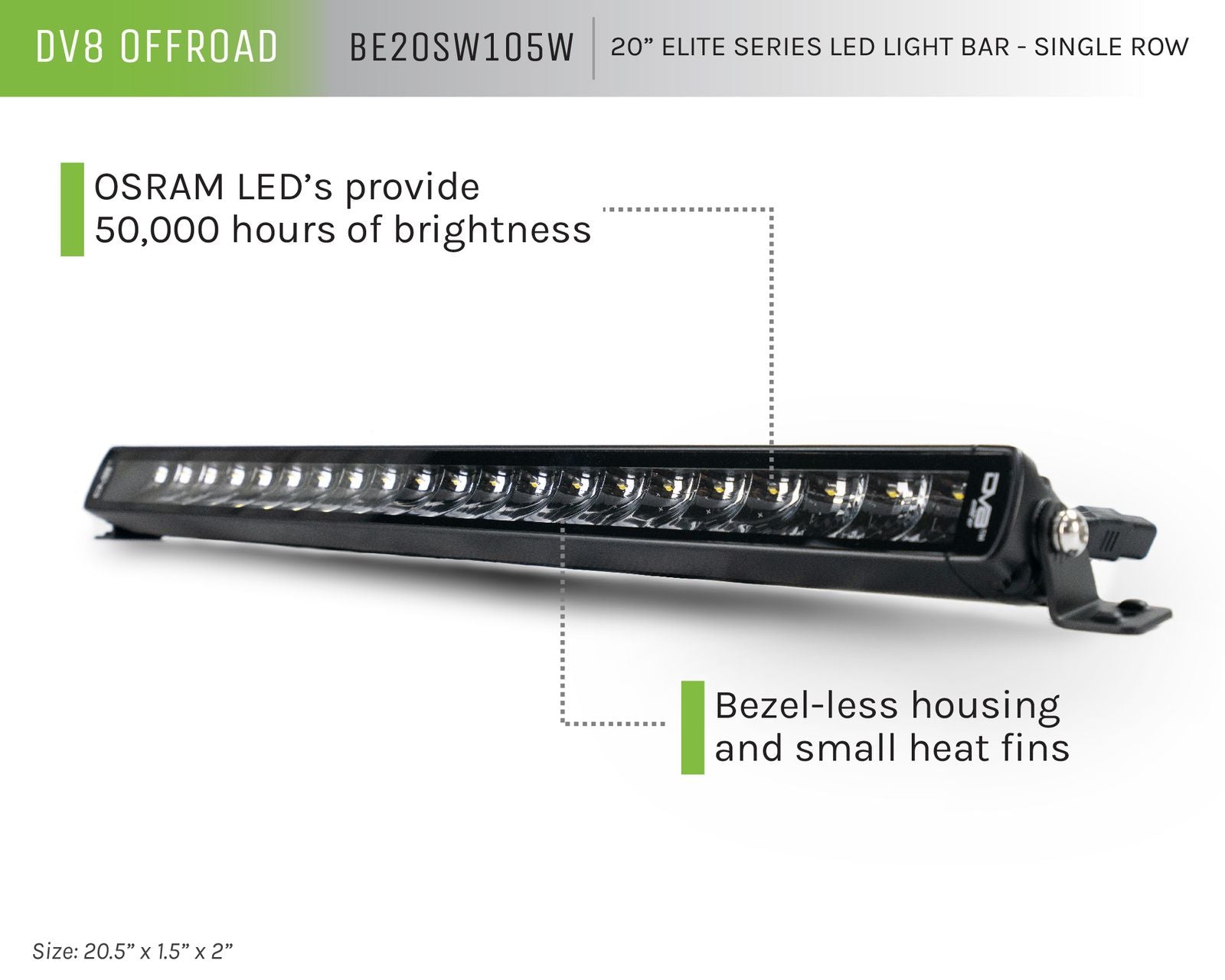

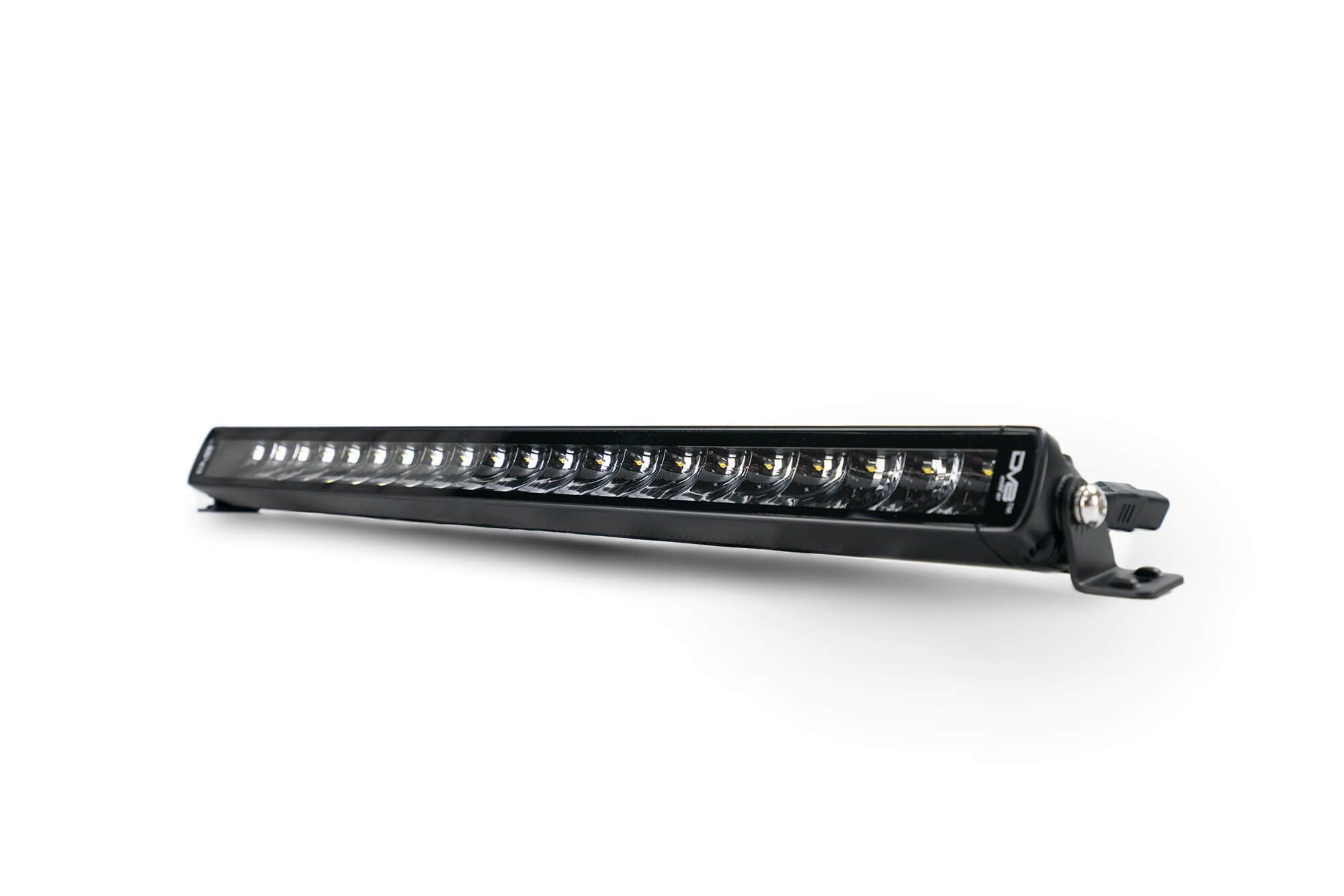

105W Single Row LED Light Bar for the Small Elite Series Bronco Mount
The DV8 Offroad Elite Series 20-Inch Single Row LED Light Bar is built for Bronco owners who want clean, focused output in a low-profile single row format without a halo ring. 105W output, 8,800 lumens, IP68 waterproof rated. Can be run solo as supplemental lighting or paired as primary trail lighting. For off-road use only.
Use the Small Elite Series Mount
Designed specifically for the DV8 Small Elite Series Light Bar Mount (BESLDBKTSM). A wiring harness is required and sold separately. Confirm your mount accepts a 20-inch bar before ordering.

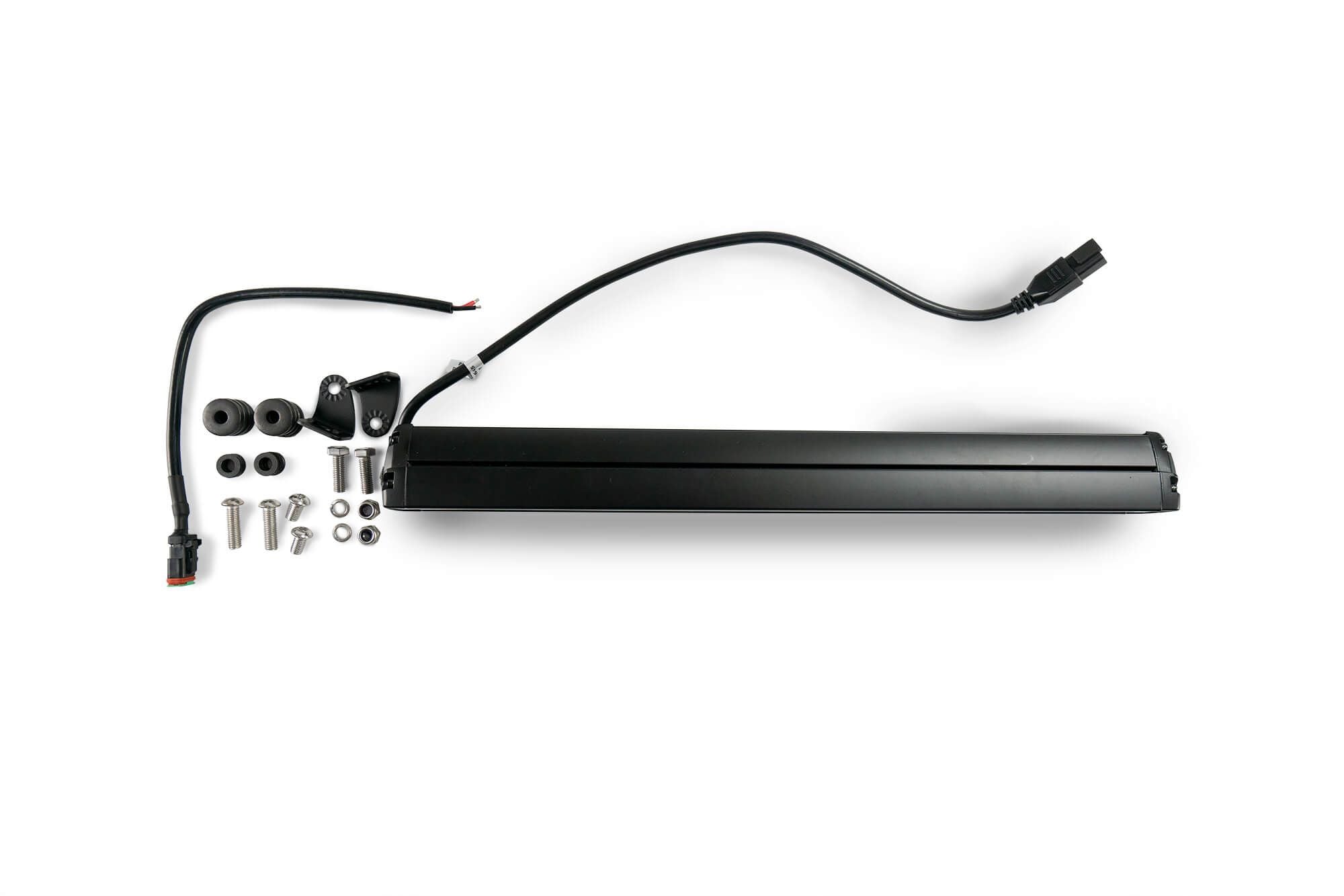

What's Included
- DV8 Elite Series 20" Single Row LED Light Bar
- Mounting hardware
Key Specs
- Output: 105W
- Lumens: 8,800
- IP Rating: IP68
- Length: 20 inches
- Compatible mount: BESLDBKTSM
Specs
| Vehicle | Universal |
|---|---|
| Trims | All trims |
| Doors | 2-Door / 4-Door |
| Fitment | Universal + wire |
| Install time | 30 min |
| Material | Aluminum |
| In the box | DV8 Elite Series 20" Single Row LED Light Bar Mounting hardware |
| Technology | LED |
| Wattage | 105W |
| Beam pattern | Single Row |
| Lumens | 8,800 Lumens |
| Warranty | 1 Year |
| Brand | DV8 Offroad |
| Part number | BE20SW105W |
| GTIN | 756519639308 |
Questions
What's the real-world difference between this single row and the dual row version?
The single row is thinner, lighter, and draws 105W vs 200W for the dual row. If mount clearance is tight or you want less electrical draw, single row. If you want maximum output and have the harness to match, dual row.
How far does a 105W bar actually illuminate on the trail?
At 105W with a focused beam, you're getting solid usable visibility out to about 100 to 150 feet depending on aim and beam pattern. More than enough for trail speeds.
Is this legal to run on California roads?
Yes. 105W aimed at a downward angle is within the range of legal auxiliary lighting for California roads.
Can I adjust the aim after the initial mount without removing the bar?
Yes. Loosen the mount bracket bolts, reposition the bar angle, and retighten. Most setups allow this without any disassembly.
