A light bar changes how you see the trail after dark, but not every light bar changes it the same way. Mount the wrong beam pattern in the wrong spot and you'll either blind yourself off oncoming obstacles up close or waste money throwing light 300 feet down a trail you're only crawling at 5 miles an hour. Get it right and your Bronco actually sees as well at night as it looks during the day.
This guide walks through what actually matters when you're shopping for a light bar for a Ford Bronco: where it mounts, which beam pattern fits how you actually drive, what the wiring involves, and where the legal lines sit before you run it on a public road. None of this is about chasing the biggest number on a spec sheet. It's about matching the light to how you actually use the vehicle.
What This Guide Covers
- What Light Bar Options Exist for the Ford Bronco?
- Spot vs Flood vs Combo: Which Beam Pattern Do You Need?
- Roof-Mounted vs Bumper-Mounted: Which Should You Choose?
- Does Light Bar Size Actually Matter?
- Is a Light Bar Legal on Public Roads?
- What Do You Need for Wiring?
- Can You Mount a Light Bar on a Bull Bar or Brush Guard?
- How to Decide Which Light Bar Fits Your Build
- Frequently Asked Questions
What Light Bar Options Exist for the Ford Bronco?
A light bar for a Ford Bronco generally mounts in one of three places: the roof, the bumper, or the windshield frame using ditch brackets. Each location changes what the light is actually good for, not just how it looks.

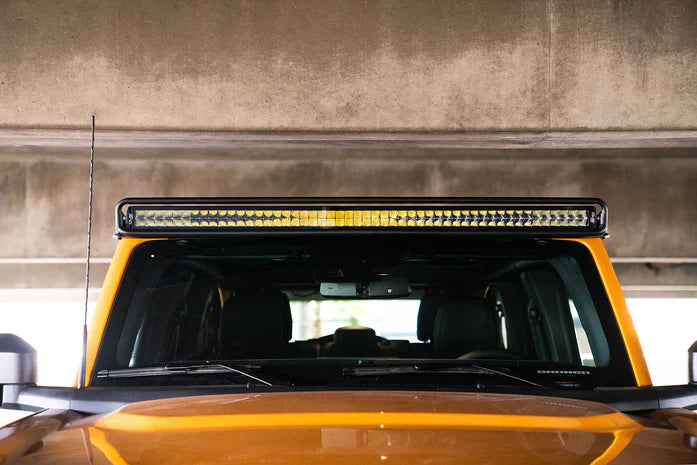

Roof-mounted bars sit highest on the vehicle, which gives them the longest unobstructed throw down the trail. That height advantage is also why roof-mounted bars are the ones most often flagged in public road light bar laws, since they sit well above headlight height.
Bumper-mounted bars sit low and close to the ground. That position trades distance for a wider, closer field of view right in front of the tires, which matters more than you'd think when you're picking a line through rocks at walking speed.
Windshield or ditch-mounted bars split the difference. They sit at roughly headlight height on brackets that run up the A-pillar area, giving you a middle-ground mounting point that some state laws treat more favorably than a full roof bar. This location also keeps the wiring run shorter than a roof mount while still clearing most obstructions a bumper-mounted light would run into.
None of these locations is universally correct. The right one depends on how you actually use the Bronco, which is exactly what the rest of this guide walks through.
Spot vs Flood vs Combo: Which Beam Pattern Do You Need?
Beam pattern matters more than almost anything else you'll pick when shopping for a light bar, and it's the spec most buyers skip past to look at lumens instead.
A spot beam concentrates light into a narrow cone, typically somewhere in the 10 to 30 degree range. That tight focus is what lets it throw light hundreds of feet down the trail. Spot beams are built for higher speed driving where you need to see obstacles well before you reach them, not for lighting up what's directly around the vehicle.
A flood beam does the opposite. It spreads light across a wide arc, commonly 60 to 120 degrees, which lights up everything nearby but doesn't reach nearly as far. Flood beams are what you want for slow-speed rock crawling, campsite setup, or seeing the edges of the trail rather than what's 300 feet ahead.
A combo beam blends the two in a single housing, usually with spot-pattern LEDs concentrated in the center of the bar and flood-pattern LEDs on the outer edges. This is the most common choice for Bronco owners who don't want to run two separate lights, since it gives you usable light both close in and further out, even if it doesn't match a pure spot bar's max distance or a pure flood bar's max spread.
If you're only buying one light bar and aren't sure which pattern to pick, combo is the safer default. If you already know you're doing mostly high-speed desert running or mostly slow technical crawling, a dedicated spot or flood bar built for that specific use will outperform a combo bar in that scenario.
Roof-Mounted vs Bumper-Mounted: Which Should You Choose?
Roof mounting gives you the longest wire run in the vehicle, which is worth knowing before you buy, since that length affects both cost and voltage drop over the run. It also puts the light bar in the best position for a long spot or combo beam, since nothing on the hood or bumper blocks the throw.
The trade-off is legal exposure. A roof-mounted bar sits well above the height most state laws treat as acceptable for on-road auxiliary lighting, which we'll get into in the legality section below. If you're planning to run the Bronco on public roads with the light bar uncovered, roof mounting is the location most likely to get you a citation.
Bumper mounting keeps the wire run shorter and the light closer to bumper height, which is closer to where headlights already sit. That lower position is why bumper-mounted lights face fewer legal restrictions in most states, though you should still confirm this for where you actually drive.
Bumper mounting also puts the light bar in a more exposed position for trail damage. Brush, rocks, and hard landings off an obstacle all sit closer to bumper height than roof height. Roof-mounted bars are largely immune to that specific risk, since nothing on the trail reaches that high.
Does Light Bar Size Actually Matter?
Length and wattage get advertised heavily, but neither one tells you as much as beam pattern does about how a light bar will actually perform on your Bronco.
A longer bar generally means more LEDs, which generally means more total lumens. But total lumens spread across a wide flood pattern behave very differently than the same lumen count concentrated into a narrow spot pattern. A shorter, well-designed spot bar can out-throw a longer flood bar by a wide margin, even with lower total output.
Wattage is a similarly incomplete number on its own. Two bars with identical wattage can perform very differently depending on LED quality, optic design, and how the reflectors or lenses are shaped. Don't assume a higher watt rating automatically means a better light.
What actually matters more than either spec is matching bar length to your mounting location. A 50 inch bar looks impressive in a product photo, but if it doesn't physically fit your bumper or roof rack's available mounting width, the wattage number is irrelevant. Measure your actual mounting space before you shop by length.
Is a Light Bar Legal on Public Roads?
This depends entirely on your state, and there's no single national rule that covers it. Federal standards set a baseline through FMVSS 108, but individual states layer their own restrictions on top, and those restrictions vary a lot from state to state.
What's consistent almost everywhere: forward-facing auxiliary lights, including light bars, generally have to emit white or amber light. Blue, red, and color-changing modes are treated seriously in most states, sometimes as seriously as impersonating an emergency vehicle, since those colors are reserved for law enforcement and emergency vehicles.
Many states also require the light bar to be covered or switched off while driving on public roads, particularly for roof-mounted bars that sit above typical headlight height. Some states set specific mounting height windows for auxiliary lights used on the road, generally somewhere in the range of 16 to 42 inches, with anything mounted higher restricted to off-road use only.
We're not going to tell you your specific state's rules here, because they genuinely differ enough that a general guide risks getting it wrong for your situation. Check your state's vehicle code or DMV site before you run a light bar uncovered on a public road, and when in doubt, keep it covered or switched off until you're off-road.
What Do You Need for Wiring?
A light bar draws more current than a factory switch and factory wiring are built to handle safely, which is why a proper wiring harness with a relay isn't optional, it's the difference between a safe install and a fire risk.
The relay is what makes this work. Your dash switch only carries a small signal current to trigger the relay, and the relay handles the actual high current load between the battery and the light bar. This keeps the heavy current off your factory switch and factory wiring entirely.
Fuse sizing should match the light bar's actual amp draw, not just be sized as large as possible. A light bar drawing around 10 amps typically wants a fuse in the 15 amp range, while a bar pulling closer to 20 amps wants a fuse closer to 25 or 30 amps. The general rule you'll see from harness manufacturers is sizing the fuse around 1.25 to 1.5 times the light's actual draw, which protects the wiring without tripping under normal use.
Wire gauge matters just as much as fuse size. Thinner wire over a long run, like a roof-mounted bar wired back to the battery, needs a heavier gauge than a short bumper-mounted run to avoid voltage drop and heat buildup. Most single light bar installs land in the 12 to 14 gauge range, with heavier bars or longer roof runs pushing toward 10 gauge.
Grounding is the part people skip and regret. A weak or corroded ground point causes dim output, flickering, or intermittent operation that looks like a bad light bar but is actually a bad connection. Always ground to clean, bare metal on the chassis, not to a painted surface or an existing ground point that's already carrying other loads. A five-minute check with a wire brush before you bolt down the ground wire saves a lot of troubleshooting later.
Can You Mount a Light Bar on a Bull Bar or Brush Guard?
Yes, many bull bars and brush guards include mounting points built for a light bar, though this varies by product, so it's worth confirming before you buy either piece separately.
A bull bar with integrated light mounting solves the bumper-mounting question in one step, since you're not drilling or fabricating a bracket to attach the light bar to the bumper itself. The bull bar structure becomes the mounting point.
If you're shopping for both a bull bar and a light bar at the same time, check that the bull bar's specific mounting locations match the light bar's length and mounting hardware before you commit to either one. A mismatch here is a common and avoidable return.
How to Decide Which Light Bar Fits Your Build
Start with where you'll mount it, not the beam pattern or the wattage. Roof, bumper, and windshield ditch brackets each come with different legal exposure and different wiring runs, so that decision narrows your options before you even look at specific bars.
From there, think honestly about how you actually drive at night. If most of your night driving is highway or graded dirt roads at real speed, a spot or combo bar earns its keep. If most of your night driving is slow technical crawling or setting up camp, a flood-heavy combo or a dedicated flood bar will serve you better than a bar built to throw light 500 feet down a straightaway you're never on.
If you're planning to run the Bronco on public roads regularly with the light bar installed, build your decision around your state's rules from the start rather than working around them after the fact. A bumper-mounted light bar that stays within your state's legal mounting height avoids the cover-it-or-remove-it hassle that a roof bar usually creates.
Finally, don't buy the wiring as an afterthought. A light bar that's the right beam pattern, the right size, and mounted in the right spot still isn't safe if the wiring behind it is undersized or missing a relay. Budget for a proper harness kit as part of the purchase, not as a separate project for later.
Frequently Asked Questions
What's the best light bar for a Bronco?
There isn't one universal answer, since the right light bar depends on your mounting location and how you actually drive. A combo beam bar is the safest general-purpose pick if you're only buying one, but a dedicated spot bar for high-speed desert running or a dedicated flood bar for slow technical crawling will outperform a combo bar in that specific use case.
Does the light bar I need change by Bronco model year?
We couldn't confirm any real year-to-year mounting differences specific to light bars themselves across the 2021-2026 Bronco lineup. Fitment differences you'll run into are more often tied to which bumper or roof rack you're mounting to rather than the model year itself, so check compatibility against your specific bumper or rack rather than your Bronco's year alone.
What's the difference between a light bar and off-road lights in general?
Light bar specifically refers to the elongated bar-shaped fixture, while off-road lights is a broader term that also includes round pod lights, cube lights, and other shapes. A light bar is one type of off-road light, not the only type, and some Bronco builds run both a light bar and separate pod lights in different locations for different purposes, like a roof-mounted bar for distance paired with bumper-mounted pods for close-in fill light.
How many amps does a typical light bar draw?
It depends heavily on wattage, but as a rough guide, a 60 watt bar draws around 5 amps, a 120 watt bar draws around 10 amps, and a 240 watt bar draws around 20 amps on a 12 volt system. Always check the specific bar's actual rated draw rather than estimating from length alone, since LED efficiency varies by manufacturer.
Can I run a light bar without a relay?
Technically the light will turn on, but running it through your factory switch without a relay puts more current through wiring and contacts than they're built to handle. That's a real fire risk over time, not just a theoretical one, and it's the single most common corner people cut on a light bar install.
