1 / 5
DV8 Offroad
Part # BE20EW200W
Elite Series 20-Inch Dual Row LED Light BarUniversal fit
$289.95
This part + add-ons
Free shipping
Same-Day, before 2 PM
Fitment checkedWe review every order
1-year warrantyFully covered
Authorized dealerGenuine parts
Bronco Forge has been so easy to contact. I've talked to them on a Saturday, texted, and called. They are very responsive and helpful.
Fitment & Sensor Notes
Compatible with DV8 bracket BESLDBKTLG. Back rail mount requires DV8 Large Elite Series Light Bar Mounts sold separately. Overall dimensions 21.5L x 2.75H x 2.65D inches. Wiring harness required. For off-road use only.
Military discount
Active duty, veterans and families
Not ready yet?
Order or email contact@broncoforge.com and we'll review your year, trim, door configuration, and any other fitment details relevant to the product so you can avoid any surprises later.
30 min
Install time
Universal + wire
Fitment
Aluminum
Material
All trims
Universal
Details
200W Dual Row LED Light Bar for Maximum Bronco Trail Output

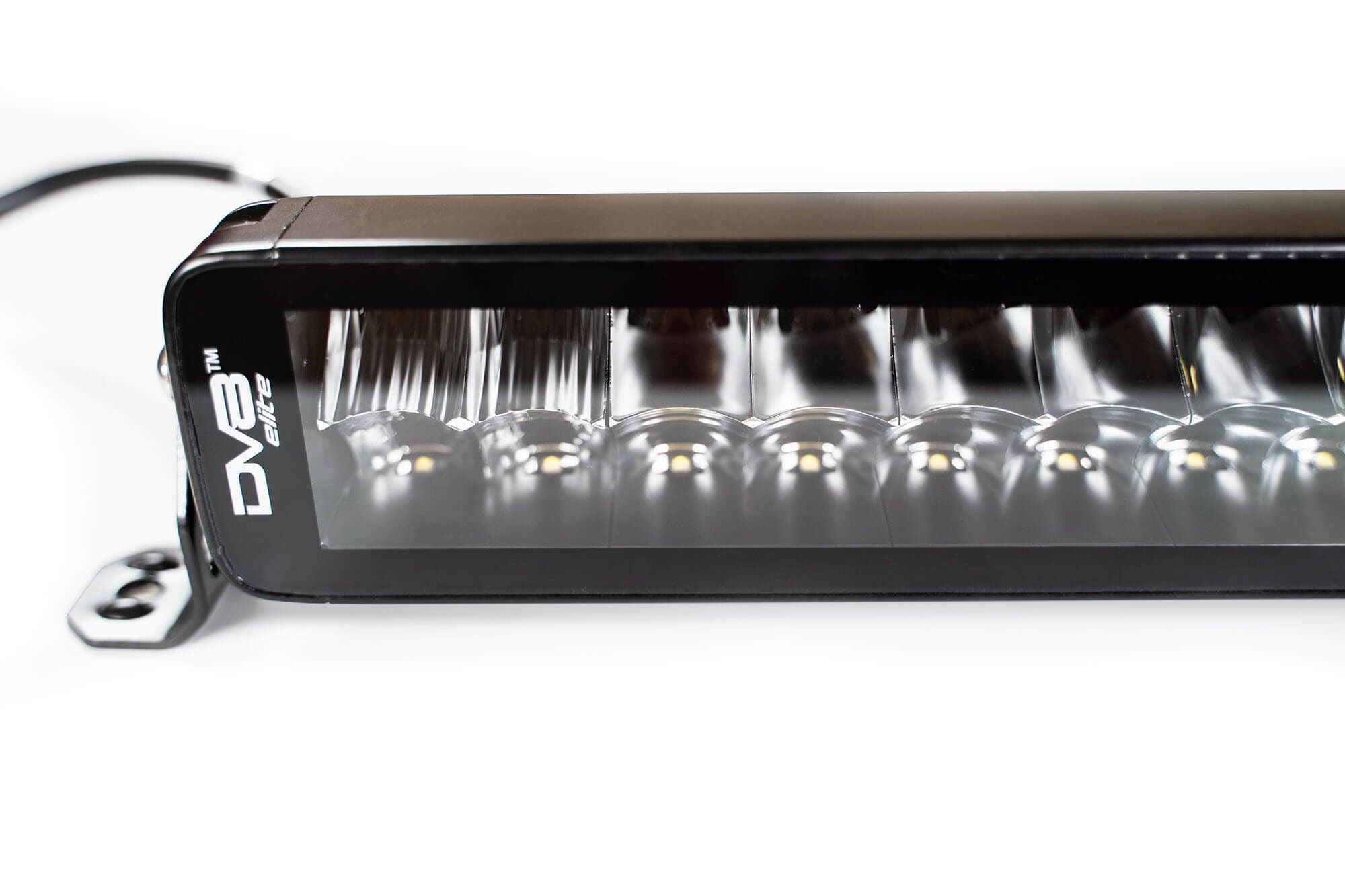

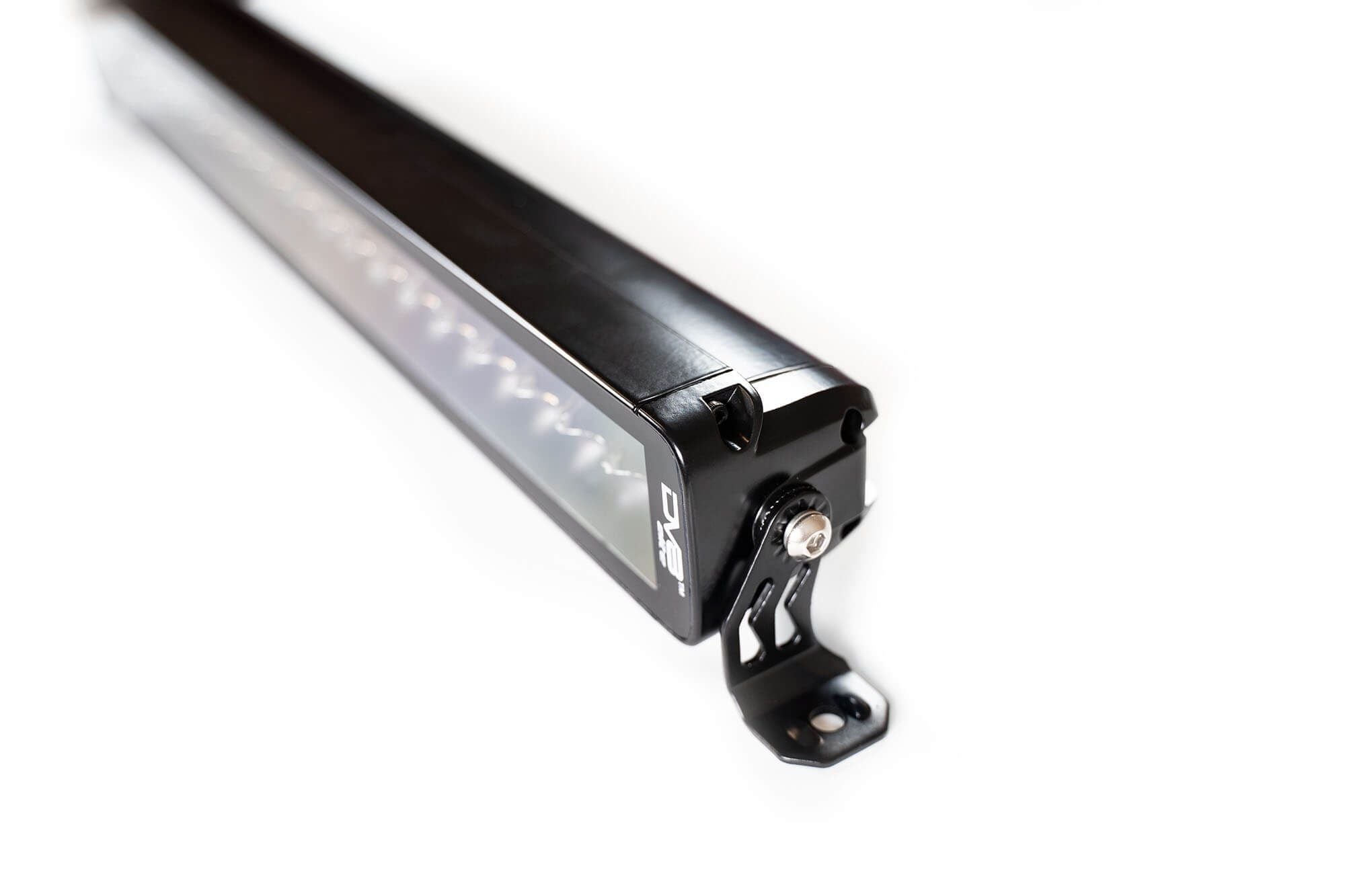

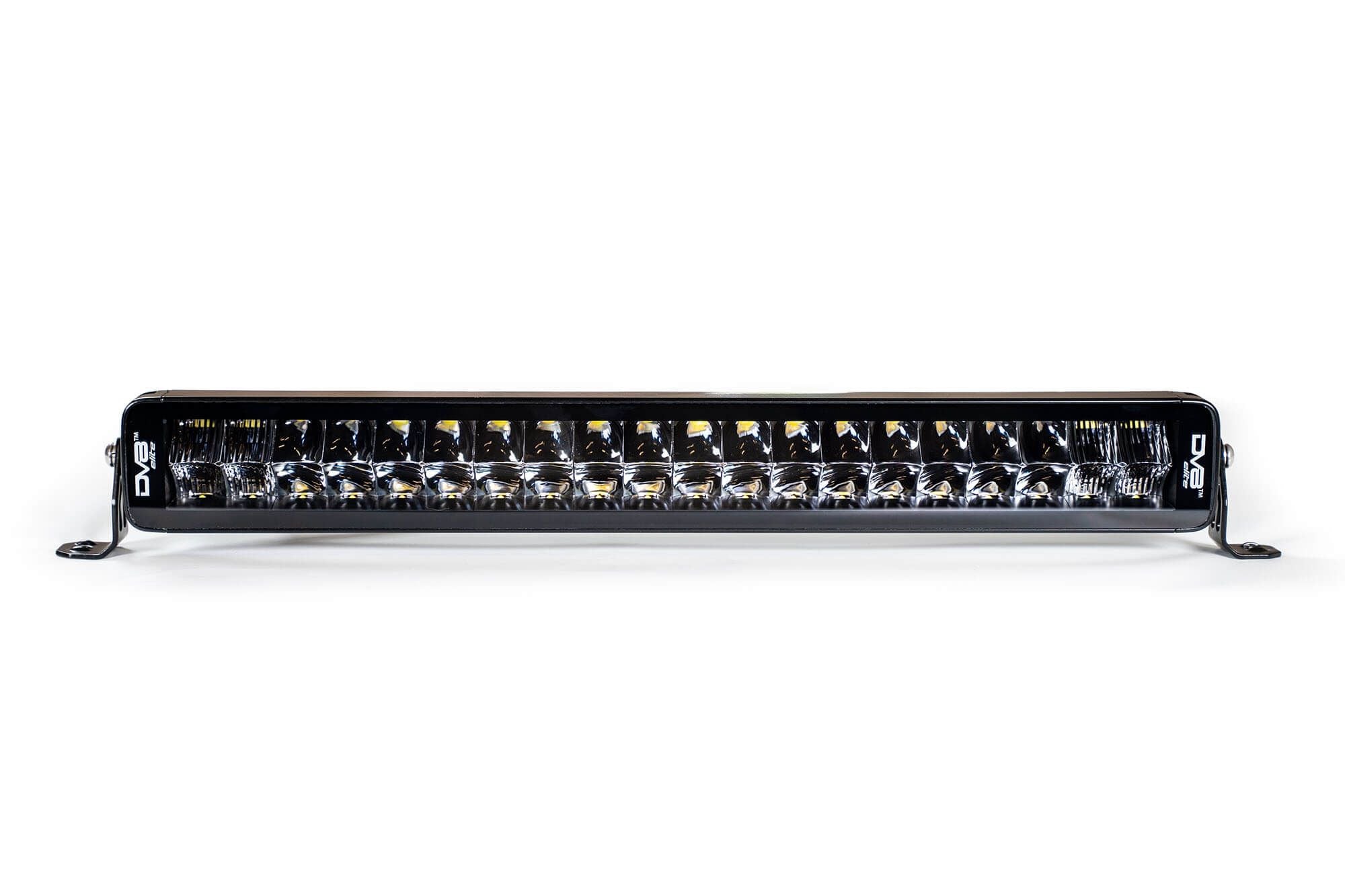

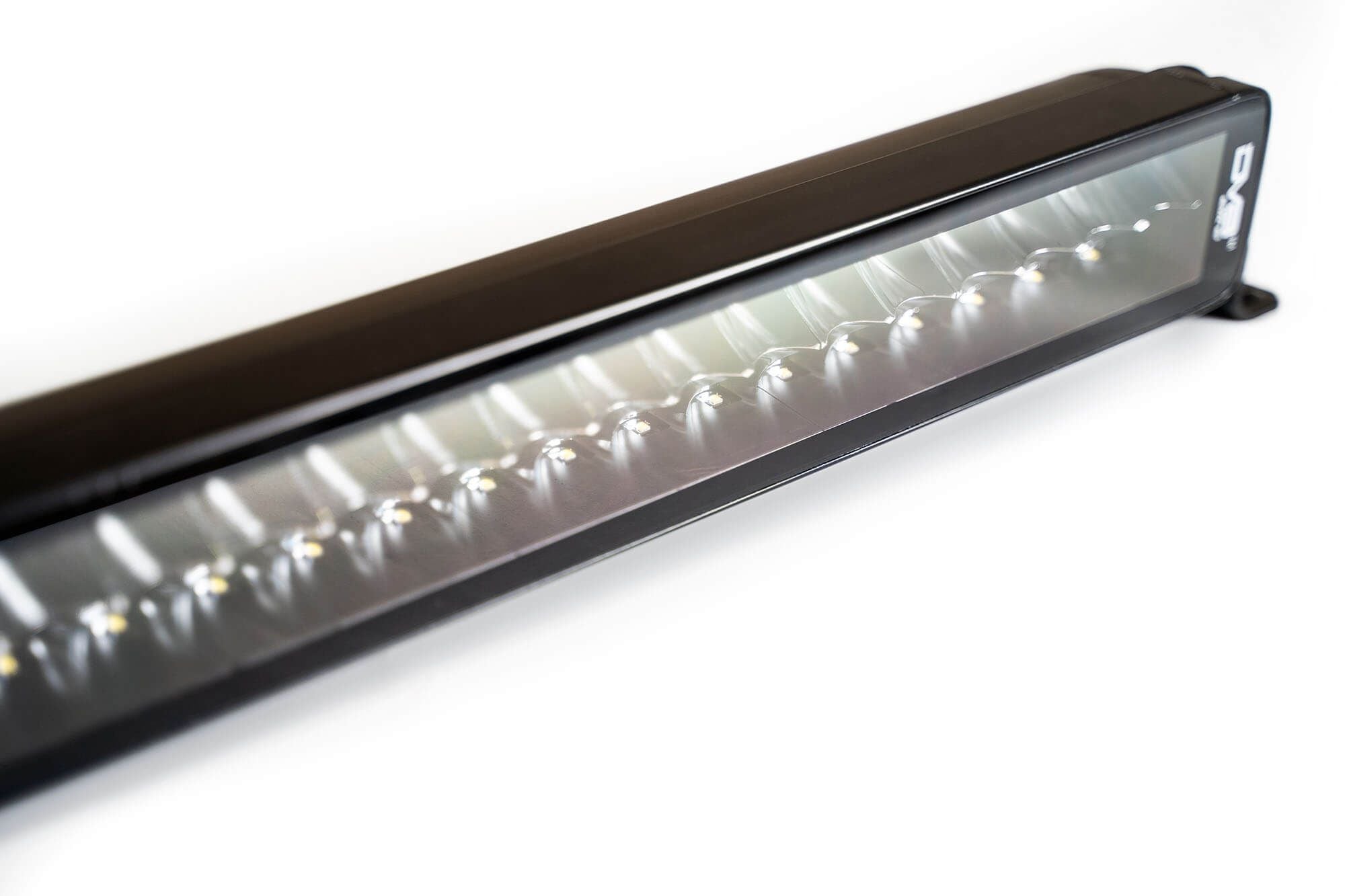

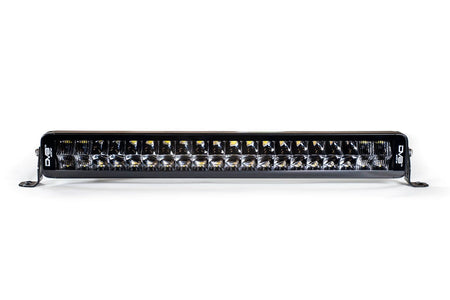

The DV8 Offroad Elite Series 20-Inch Dual Row LED Light Bar is built for Bronco owners who want maximum light output in a standard 20-inch format without a halo ring. 200W total output, 16,800 lumens, IP68 waterproof rated, straight dual row configuration. For off-road use only. Overall dimensions: 21.5L x 2.75H x 2.65D inches.
Use the UNWH-01 60 Amp Harness
The UNWH-01 60 Amp Wire Harness with DTP Connector is the only plug-and-play harness for this specific light bar. Do not use a lower-rated harness. Compatible with the DV8 Large Elite Series Light Bar Mount (BESLDBKTLG).

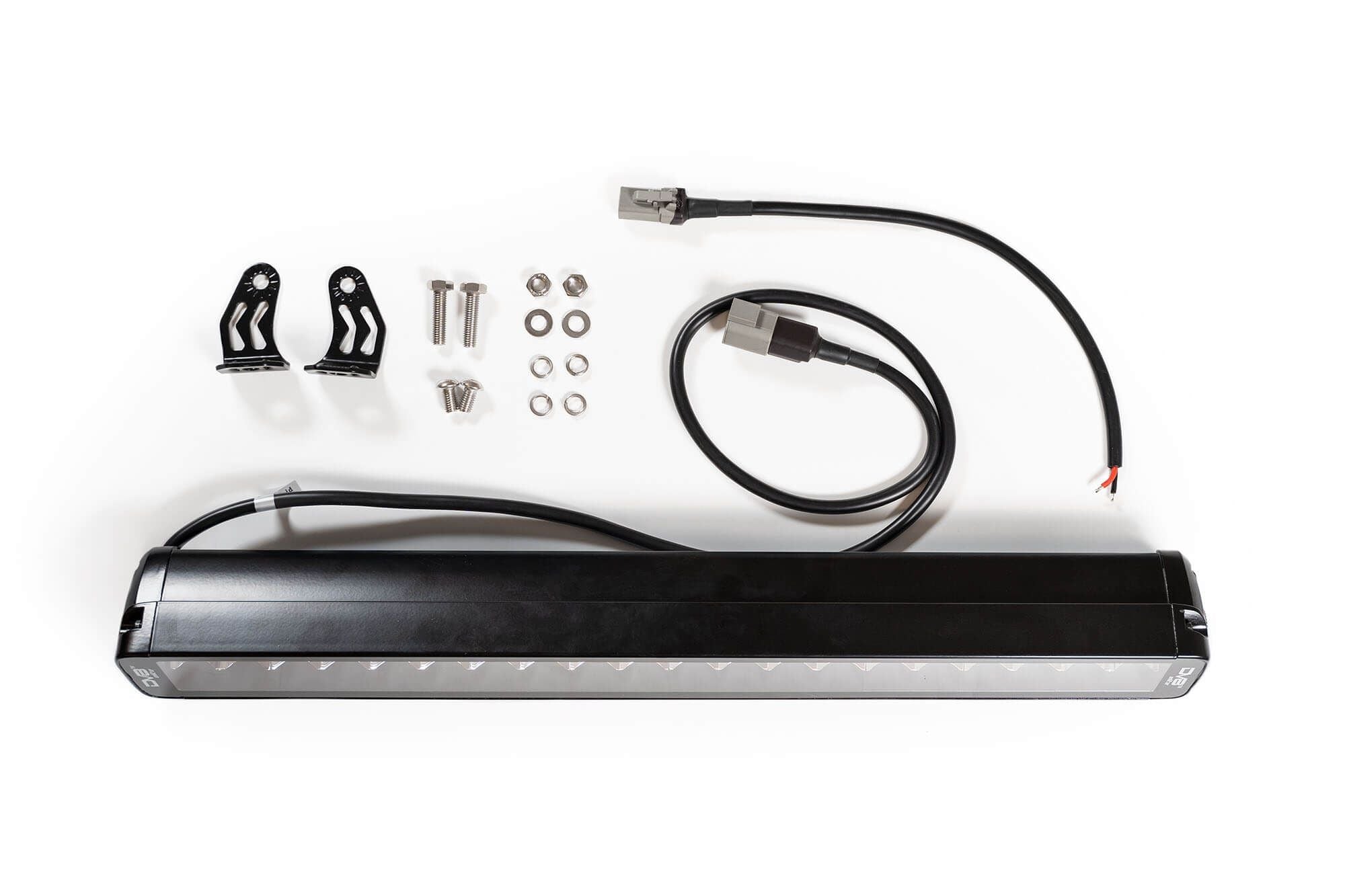

What's Included
- DV8 Elite Series 20" Dual Row LED Light Bar
- Mounting hardware
Key Specs
- Output: 200W
- Lumens: 16,800
- IP Rating: IP68
- Length: 20 inches
- Dimensions: 21.5L x 2.75H x 2.65D inches
- Required harness: UNWH-01 (sold separately)
- Compatible mount: BESLDBKTLG
Specs
| Vehicle | Universal |
|---|---|
| Trims | All trims |
| Doors | 2-Door / 4-Door |
| Fitment | Universal + wire |
| Install time | 30 min |
| Material | Aluminum |
| In the box | DV8 Elite Series 20" Dual Row LED Light Bar Mounting hardware |
| Technology | LED |
| Wattage | 200W |
| Beam pattern | Dual Row, Flood and Spot |
| Lumens | 16,800 Lumens |
| Warranty | 1 Year |
| Brand | DV8 Offroad |
| Part number | BE20EW200W |
| GTIN | 810087810139 |
Questions
Will 200W of draw cause my factory alternator to struggle with other accessories also running?
200W draws about 16.7 amps. The factory alternator has enough headroom to handle this alongside normal vehicle loads. If you're running a full electrical build with multiple heavy accessories simultaneously, a battery monitor is a smart addition.
Is a 200W light bar legal for road use or is it off-road only?
Auxiliary lights are legal on California roads when aimed properly and not blinding oncoming traffic. A 200W bar aimed correctly at a downward angle is within legal territory. Aimed flat at eye level it creates excessive glare.
What is the correct wiring harness for this bar?
The DV8 60 Amp Wire Harness with DTP Connector (UNWH-01) is the correct match for the 200W dual row.
How hot does this bar get after extended trail use?
The housing will be warm to the touch. That's part of the thermal management design. Don't cover the back of the bar housing during operation.
