The Complete Guide to Building a Ford Bronco

Building out a Ford Bronco is one of the more satisfying projects in the off-road world, and also one of the easiest to get expensive and disorganized if you don't have a plan. This guide covers the whole process: what building out a Bronco means, the order that saves money, the terminology you'll run into, every major category of parts, concrete costs, realistic timelines, common mistakes, and how it all interacts with your factory warranty. Consider this the starting point, with links throughout to the full depth on each topic.

What Does "Building Out" a Bronco Mean?

Building out a Bronco means adding aftermarket parts and equipment on top of the factory truck, ranging from a single skid plate to a fully armored, lifted, winch-equipped rig ready for sustained trail use. There's no single finish line. Some owners stop after a bumper and a set of lights. Others keep adding for years. What matters is understanding the categories involved and building toward a specific use case rather than buying parts at random because they look good on someone else's truck.

Where to Start: Sequencing Your Build

Decide your tire size before anything else. Tire size drives fender clearance, suspension height, and gearing considerations that touch nearly every other category on this list. Buying a lift kit or fenders before locking in tire size is one of the most common expensive do-overs in this hobby: a 2-inch leveling kit bought without a tire-size decision, followed by a change of mind toward 37s, means buying the lift a second time instead of once, since a 2-inch kit doesn't clear 37s regardless of what else changes.

Once tire size is set, protection usually comes next, skid plates and rock sliders, since those parts see contact on the very first trail run and matter regardless of what else gets added later. Bumpers, winches, and lighting tend to follow once the truck's basic capability is settled. For a broader look at what to think through before spending anything, read our guide on what to know before modding your Ford Bronco.

Terms to Know Before You Start

A few terms come up constantly once you start shopping parts, and knowing them upfront saves a lot of confused product descriptions later. Approach angle measures how steep an incline the front of the truck can climb before the bumper scrapes, and it's the direct reason some bumpers get replaced. A locking differential forces both wheels on an axle to spin together even if one is off the ground, a genuine capability jump over an open differential. A sway bar disconnect temporarily frees up front wheel articulation for technical terrain.

Two more terms matter before you shop suspension: GVWR (Gross Vehicle Weight Rating) is the maximum total weight your Bronco can safely carry, including passengers, cargo, and every part you've bolted on, and it's the number winch and suspension sizing formulas are built around. RTI, or Ramp Travel Index, measures how much wheel travel a suspension setup has by scoring how far a vehicle can drive up a ramp before a wheel lifts off the ground; higher numbers indicate more available articulation. Knowing these five terms clears up most of the confusion in bumper, suspension, and trim comparisons across the rest of this guide.

Bumpers: Front and Rear

Bumpers are usually the first major purchase in a build, both for looks and for genuine functional upgrades: winch mounting, recovery points, and improved approach and departure angles over the factory setup. Pricing varies significantly by brand and manufacturing origin, DV8 Offroad builds overseas and prices its steel bumpers at a flat rate across most of its lineup, while Addictive Desert Designs builds domestically in Chandler, Arizona at a meaningfully higher price point. Our front bumper buying guide and rear bumper guide cover what to look for, and our DV8 vs ADD front bumper comparison and rear bumper comparison break down the two most common brand choices head to head.

Before ordering any bumper, read our breakdown of common aftermarket bumper problems, since fitment mistakes involving sensors, adaptive cruise control, and the front camera are avoidable with the right questions asked up front. Relocating the adaptive cruise module alone, when a bumper doesn't integrate it directly, typically requires a dedicated bracket to be added to the order rather than being handled for free.

Rock Sliders and Skid Plates

Rock sliders and skid plates protect the parts of the truck most likely to take a hit on any trail run: the rocker panels, the differentials, and the underside of the frame. Frame-mounted rock sliders also double as a hi-lift jack point, something factory rock rails and body-mounted running boards can't safely do.

Skid plates aren't one part; they're a category of several. A front skid plate protects the engine and front differential, a rear differential skid plate covers the rear axle housing, trailing arm skid plates protect the suspension mounting points, and rear shock guard skid plates protect the shock bodies themselves from rock strikes. A full skid plate setup across all four areas typically costs several hundred dollars in total, since each piece is sold separately rather than as one combined shield. Our rock rails vs running boards breakdown and skid plate buying guide covers what to prioritize for your specific terrain.

Fenders and Body Protection

Fenders come into the build once tire size pushes beyond what the factory flares cover. Wider aftermarket fenders, whether a tube-style design or a full steel flare kit, extend clearance for larger tires and protect the body from thrown rocks and mud that a factory flare isn't built to handle at that size. Fender choice has to match tire size exactly, since flares sized for 35s don't provide the same coverage margin once a build moves to 37s, and buying fenders before tire size is settled is one of the more common ordering mistakes covered later in this guide.

Suspension and Lift Kits

Suspension is the category most tied to tire size, and it's also the category where buyers most often overspend or underspend by skipping the sequencing step covered earlier. A leveling kit, a full lift kit, and a long travel suspension system solve three different problems at three different price points. As a general range: 1 to 2 inches of lift covers leveling and minor clearance work, 2.5 to 3 inches is the common range for running 35s on a non-Sasquatch Bronco, and 4 to 4.5 inches plus fender work is typical for 37s regardless of starting configuration. Picking the wrong height for your tire and terrain goals is the single most common and expensive mistake in this category. Our complete suspension and lift kit guide breaks down the differences, and our guide on the signs you need one helps confirm the upgrade is genuinely necessary before you spend anything.

Winches and Recovery Gear

Winch sizing follows a standard formula: multiply your Bronco's GVWR, roughly 5,700 pounds depending on trim, by 1.5. That comes out to about 8,550 pounds minimum, which is why most Bronco owners land on a 10,000 to 12,000 pound rated winch rather than an 8,000 pound unit, since aftermarket weight from bumpers, sliders, and gear pushes the effective total well past the factory number once a build is finished.

A winch only works as well as the gear supporting it. The fairlead guiding the rope, the shackles connecting a strap to the recovery point, and the bumper's winch cradle all have to be sized and matched correctly, and skipping any one of them undercuts what the winch itself was built to do. Our winch buying guide covers rope type and full recovery kit costs in depth, and our fairleads and D-ring shackles guide covers the supporting hardware most buyers skip. Before assuming a winch solves every stuck scenario, read what a winch can and can't do on the trail.

Lighting

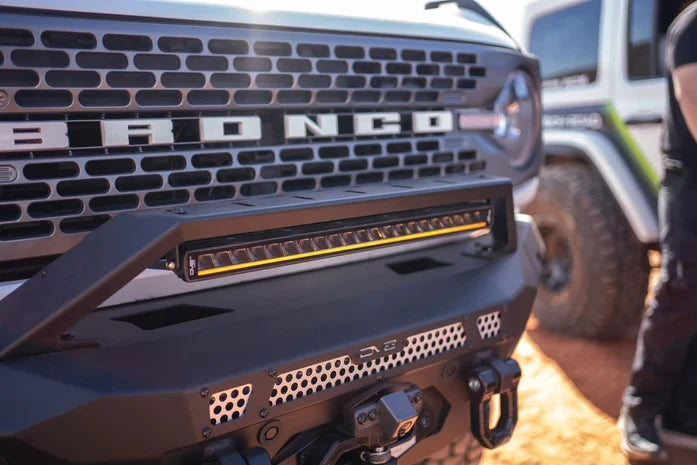

Lighting splits into a few categories that get confused constantly: fog lights that replace the factory bumper housing, ditch lights (also called pod lights) that mount at the A-pillar and fit every trim including the Raptor, and light bars that mount separately on the roof or bumper. Fitment depends entirely on which bumper the truck has, not just the trim name, and fog lights specifically only fit the Standard or Capable bumper's square opening, not the round opening on an HD Modular bumper. Our fog vs ditch vs pod lights guide untangles the terminology, and our headlights comparison and light bar guide cover the rest of the category.

Roof Racks and Tops

Roof rack fitment depends on door count and top type, hard top or soft top, and mixing those up is one of the more common ordering mistakes in this category. Weight capacity varies widely by rack design, commonly anywhere from 200 pounds up past 600 pounds for dynamic loads while driving, with higher static ratings for parked loads like a rooftop tent. A soft top roof rack adds noticeably more highway wind noise than a hard top setup, a genuine consideration before committing to one over the other. Our roof rack guide covers fitment by configuration, and our soft top and hard top problems guide covers the documented issues with each factory top before you decide whether to keep it or upgrade.

What a Full Build Costs

Costs scale in tiers. A light armor and lighting setup lands under $800 using current pricing on skid plates and fog lights alone. A trail-ready build adding front and rear bumpers, rock sliders, and a winch setup pushes past $4,500. A full exterior build adding a roof rack, tail lights, fenders, and supplemental lighting on top of that lands in the $7,500 to $8,000 range, not including suspension or tires, which vary too widely by lift height and tire size to fit a single number. Our full cost breakdown by build tier covers specific figures category by category.

How Long a Full Build Takes

Parts in this category ship differently than most online purchases, and it changes how long a full build takes to complete. Steel bumpers, sliders, and skid plates commonly weigh 65 pounds or more, so they ship via LTL freight rather than parcel carrier, with freight transit alone typically running 7 to 14 business days once an item leaves the warehouse. Backordered items, common on fully fabricated, powder-coated bumpers in particular, commonly run 2 to 12 weeks depending on the brand and the manufacturer's current production queue, a timeline set by the manufacturer rather than any retailer. Our full breakdown of aftermarket shipping timelines covers why, including the difference between domestic and imported brands on lead time.

Ordering the longest-lead-time part of a build first, and working backward from there, keeps the rest of the timeline from being held hostage by whichever single piece takes longest to arrive.

Common Mistakes to Avoid

Beyond the sequencing mistake covered earlier, a few specific errors show up repeatedly across every category. Buying fenders before confirming tire size and lift height leads to gaps or rubbing that a proper measurement upfront would have avoided, covered in our fender flare mistakes guide. Ordering a bumper without checking sensor and ACC compatibility is the single most common bumper complaint, covered above. Buying a lift kit before deciding tire size, and buying without confirming Sasquatch versus non-Sasquatch geometry, both show up constantly in owner communities. Our guide on common Ford Bronco buying mistakes covers the broader list of decisions to make before spending anything on the truck at all.

Does Building Out Your Bronco Affect Your Warranty?

Not automatically. Federal law under the Magnuson-Moss Warranty Act prevents a dealer from voiding your entire factory warranty simply because an aftermarket part is installed. The dealer has to show the specific aftermarket part caused the specific failure being claimed. Low-risk parts like bumpers, rock sliders, and skid plates rarely create warranty disputes on unrelated systems. Suspension modifications and engine tunes carry more genuine risk, since a dealer has an easier argument that a lift affected a CV axle failure than that a rock slider affected an air conditioning compressor. Our full warranty guide covers exactly what's protected, what carries more risk, and what to do if a dealer denies a claim.

Where to Go From Here

Building out a Bronco is a long project made up of a series of smaller decisions, tire size, protection, bumpers, suspension, recovery gear, and lighting, each with its own fitment, cost, and timeline considerations covered in depth throughout this guide. Start with tire size, build toward a specific use case rather than buying parts at random, and check fitment against your exact trim and configuration before ordering anything.
