A 2-inch leveling kit and a 4.5-inch long travel suspension system get lumped together under "lift kit" constantly, and that's exactly how people end up buying the wrong thing. Before you spend a dollar on your Bronco's suspension, here's what each option actually does, how much lift you really need, and what changes once Sasquatch enters the picture.
What's in This Guide
- Leveling Kit vs Lift Kit vs Long Travel: What's the Difference?
- How Much Lift Do You Actually Need?
- Sasquatch vs Non-Sasquatch Lift Kits
- What's Actually in a Lift Kit?
- Tire Size and Lift Height: What Fits Without Rubbing
- Long Travel Suspension: When Height Isn't the Goal
- Install Cost and Difficulty
- Will a Lift Kit Void Your Warranty?
- Does a Lift Kit Affect Towing Capacity?
- Signs Your Lift Kit Was Installed Wrong
- FAQ
Leveling Kit vs Lift Kit vs Long Travel: What's the Difference?
Three different products are sold under roughly the same search term, and they solve three different problems. Here's the honest breakdown before you spend anything.
A leveling kit corrects rake, the slight forward lean most Broncos have from the factory because the front sits a little lower than the rear. It typically adds one to two inches up front and does not touch suspension travel or off-road capability. If your only complaint is that the front looks like it's dipping compared to the rear, this is the fix, and it's the cheapest of the three by a wide margin.
A lift kit is a bigger job. It raises the entire truck, usually comes with new shocks built for the added height, and genuinely increases ground clearance and tire clearance in a way a leveling kit never will. This is what most people actually mean when they search "bronco lift," even if a chunk of the results they get back are leveling kits mislabeled to catch that traffic.
Long travel suspension is a different category entirely, and it's not really about height at all. It increases how far the suspension can compress and extend, which is what keeps your tires planted at speed over rough terrain rather than just raising the body. We cover this one in more detail further down, since it's the option most people don't realize exists until they've already outgrown a standard lift.
How Much Lift Do You Actually Need?
Here's the part most buying guides skip: more lift isn't automatically better, and the right height depends entirely on what problem you're actually solving.
1 to 2 inches (leveling territory): Corrects rake, minor clearance improvement. Doesn't require new tires and doesn't meaningfully change your off-road capability. If your Bronco is stock and you just want it to sit even, stop here.
2.5 to 3 inches: The most common real lift height. Enough clearance to run 35s comfortably on a non-Sasquatch Bronco, noticeable improvement in ground clearance, and still within the range where most kits are a straightforward bolt-on with new shocks.
4 to 4.5 inches: Needed for 37-inch tires on most builds. At this height you're usually looking at control arm and trackbar upgrades in addition to the lift itself, since factory geometry starts working against you past this point.
6 inches and beyond: This is where you're solving for something specific, usually extreme tire size or a dedicated rock crawling build, not general trail use. Kits at this height typically require the most extensive supporting modifications and the steepest install cost. Most owners never need to go this far, and going here without a real reason usually means paying for capability you won't use.
Decide your target tire size before you decide your lift height. Buying a 2-inch kit and then deciding you want 37s later means buying the lift twice instead of once, and that's the single most common expensive mistake in this whole category.
There's a second decision hiding inside this one that people miss: how you actually use the truck matters as much as tire size. Two owners running identical 35s can need different kits entirely if one is a daily driver with the occasional weekend trail and the other is running technical terrain every weekend. The daily driver benefits from a kit tuned for a comfortable ride at that height. The weekend wheeler benefits more from a kit that prioritizes articulation and durability, even if the ride is firmer on pavement. Don't just buy for the tire size. Buy for the tire size and the use case together.
Sasquatch vs Non-Sasquatch Lift Kits
This is the fitment detail that trips up more buyers than anything else on this list. Sasquatch-equipped Broncos already run 35-inch tires (315/70R17), wider fenders, and a different suspension tune straight from the factory, with 11.6 inches of ground clearance built in. A lift kit engineered for a non-Sasquatch Bronco running smaller stock tires does not automatically fit a Sasquatch build, and the reverse is just as true.
The practical difference: Sasquatch kits typically need less additional lift to reach a given tire size, since the truck already starts from a higher baseline. Confirm your build is Sasquatch or non-Sasquatch before you shop, not just your trim and model year. Two Badlands with the same trim name can need completely different kits depending on whether Sasquatch was optioned.

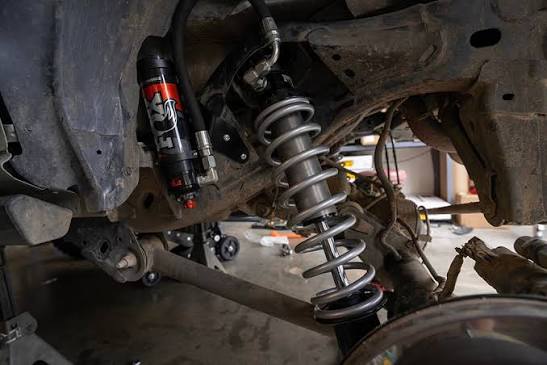

What's Actually in a Lift Kit?
A real lift kit is more than a set of taller springs. Here's what you're actually paying for, and why cutting corners on any of these pieces tends to show up later as a problem.
Shocks. New shocks are almost always part of a real lift kit, not an optional add-on. Factory shocks are valved for factory ride height, and running them at a taller height without a matched shock means poor damping and a rougher ride than the lift should produce.
Control arms. At 3 inches and above, upper and sometimes lower control arms often need replacing to correct suspension geometry that changes as ride height increases. Skipping this on a taller lift is how you end up with premature tire wear and steering that feels off.
Trackbar or adjustable relocation brackets. These correct axle centering that shifts as the suspension lifts. Without one, your Bronco can sit slightly off-center side to side, which is a subtle problem until you notice uneven tire clearance on one side.
Extended brake lines. Often overlooked. Factory brake lines are sized for factory travel. A taller lift without extended lines can stretch the lines at full droop, which is a real safety issue, not a cosmetic one.
Bump stops. Factory bump stops are set for factory ride height and travel. Run a taller lift without adjusting or extending them and you can end up with less usable travel than the lift height suggests, since the suspension bottoms out against the old bump stop position before it reaches the new geometry's actual limit. This is one of the more common corners cut on budget kits, and it's also one of the hardest problems to diagnose after the fact if you don't know to look for it.
Here's the thing about cheaper kits that skip these pieces: the truck will still go up. It just won't ride, handle, or hold up the way a properly engineered kit does, and the difference usually shows up months later as premature wear rather than something you'd catch on a test drive around the block. A kit that includes every piece above costs more upfront and almost always costs less over the life of the truck.
Tire Size and Lift Height: What Fits Without Rubbing
One honest note before the numbers below: Ford doesn't publish official lift-height-to-tire-size specs, since Ford doesn't design or sell aftermarket lift kits. What follows is general aftermarket convention pulled from fitment data across multiple suspension and wheel manufacturers, and it can vary somewhat by brand, kit, and even wheel offset. Treat these as a solid starting range to shop from, not an exact promise for your specific kit.
Tire clearance and lift height are directly connected, and getting this wrong is the single most common lift kit mistake. As a general range for non-Sasquatch Broncos: 33s generally fit with minimal to no lift, 35s typically need around 2 to 3 inches depending on trim, and 37s usually need 4 to 4.5 inches plus fender modification regardless of lift height. Sasquatch builds shift these numbers down since they already start from 35s and a taller baseline.
If you're seeing rubbing at full articulation even after a lift, that's often a clearance problem the lift alone didn't solve, and it usually points to needing fender flares or a fender delete in addition to the suspension work, not more lift height.
Long Travel Suspension: When Height Isn't the Goal
If your goal is running sustained speed across rough terrain rather than crawling over rocks, height alone won't get you there. Long travel kits increase how far your suspension can compress and extend, which is what actually keeps your tires planted at speed over whoops and rough sand, not how tall the truck sits.
This is a different build goal than a standard lift kit, and it usually costs more because you're buying travel, not just inches. Most owners looking at long travel are building specifically for desert running rather than technical rock crawling, and the kit selection reflects that different priority.
Install Cost and Difficulty
A basic leveling kit is often a manageable DIY job with basic tools in a few hours. A full 3-inch lift kit with new shocks, control arms, and a trackbar is a much bigger job, frequently running a full day or more even for an experienced installer, and most owners have it done at a shop rather than attempting it in a driveway.
Where the real cost jump happens isn't always obvious upfront. A shop quote for "installing a lift kit" often doesn't include the alignment, and it rarely includes the extended brake lines if your kit doesn't come with them standard. Ask specifically what's included before you approve any install estimate, because the difference between a quote that covers everything and one that doesn't can run into real money once you're already committed.
Long travel systems take this further. Because they often involve custom or semi-custom fabrication rather than a bolt-on kit, install time and cost both climb, and not every shop that handles standard lift kits is equipped to install a long travel system correctly. If you're going this route, find a shop with specific experience on long travel Broncos rather than defaulting to whoever installed your last set of tires.
Budget for alignment after any lift install, not as an optional extra. Suspension geometry changes enough at 2.5 inches and above that skipping the alignment means uneven tire wear starting almost immediately, and that wear can cost more over a year than the alignment itself would have.
Will a Lift Kit Void Your Warranty?
Not automatically, but this is genuinely the riskiest modification category when it comes to warranty claims. Federal law limits how much a dealer can deny coverage over aftermarket suspension parts, and they have to prove the specific part caused the specific failure, not just that a lift is present. We break down exactly what is and is not protected, and how to handle a dealer who pushes back, in our full guide to aftermarket parts and your Ford Bronco warranty.
Does a Lift Kit Affect Towing Capacity?
The lift itself doesn't directly change your rated towing capacity, but the larger tires that usually come with a lift do affect real-world towing behavior, added rolling resistance, changed gearing math, and reduced effective payload once you're loaded and hitched. If towing is part of your plan, read our breakdown of what actually affects Ford Bronco towing capacity before finalizing your lift and tire combination.
Not sure if you're even at the point of needing a lift yet? Start with our guide on the signs your Bronco actually needs one before you commit to a height.
Signs Your Lift Kit Was Installed Wrong
Even a good kit can end up feeling wrong if the install missed something, and catching it early saves you from driving on a suspension that's quietly wearing itself out.
Uneven ride height side to side. If one side sits visibly higher than the other after the dust settles, that's not something that corrects itself. It usually points to a trackbar that wasn't adjusted or a component that wasn't torqued to spec.
Clunking over bumps that wasn't there before. A properly installed kit shouldn't introduce new noise. Clunking after a lift often traces back to sway bar end links that weren't replaced or extended to match the new ride height.
Uneven tire wear appearing within the first few thousand miles. This is almost always an alignment issue, either skipped entirely after the install or not adjusted enough for the new geometry. Catch this early and it's a quick fix. Ignore it and you're replacing tires well ahead of schedule.
If you notice any of these, go back to whoever did the install before you put more miles on it. Most of these are quick to correct when caught early and expensive to ignore.
Ford Bronco Suspension and Lift Kit FAQ
What's the difference between a leveling kit and a lift kit on a Ford Bronco?
A leveling kit corrects the factory rake, the front sitting slightly lower than the rear, usually adding one to two inches up front only. A lift kit raises the entire truck, increases ground clearance, and usually includes new shocks built for the added height and travel.
How much does it cost to lift a Ford Bronco?
Costs vary widely by height and components. A basic leveling kit is the cheapest option. A full 3-inch lift with shocks and control arms costs considerably more, and long travel systems sit at the top of the range given the additional engineering involved. Installation adds to the total, especially at heights requiring control arm and trackbar work.
Do I need a lift kit to run 35-inch tires on a Ford Bronco?
On a non-Sasquatch Bronco, generally yes, though the exact amount varies by trim and kit. Sasquatch-equipped Broncos already run 35s (315/70R17) from the factory with 11.6 inches of ground clearance and typically don't need a lift for that tire size alone.
Does a Sasquatch lift kit fit a non-Sasquatch Bronco?
Generally no. Sasquatch and non-Sasquatch builds start from different baseline geometry and tire sizes, so kits engineered for one typically don't transfer cleanly to the other. Confirm your specific configuration before ordering.
Will a lift kit hurt my Ford Bronco's fuel economy?
Yes, to some degree. Larger tires and increased ride height both add rolling resistance and wind resistance. The tire size increase that usually comes with a lift affects fuel economy more than the lift height itself.
