DV8 Offroad
Part # WB12K-SR
Xtract 12,000 lb Synthetic Rope WinchUniversal fit
This part + add-ons
Bronco Forge has been so easy to contact. I've talked to them on a Saturday, texted, and called. They are very responsive and helpful.
Fitment & Sensor Notes
Universal fit. Mounting foot pattern 10 x 4.5 inches. Wiring to battery required. Confirm bumper winch pocket dimensions before ordering.
Install manual
Military discount
Active duty, veterans and families
Not ready yet?
Order or email contact@broncoforge.com and we'll review your year, trim, door configuration, and any other fitment details relevant to the product so you can avoid any surprises later.
Details

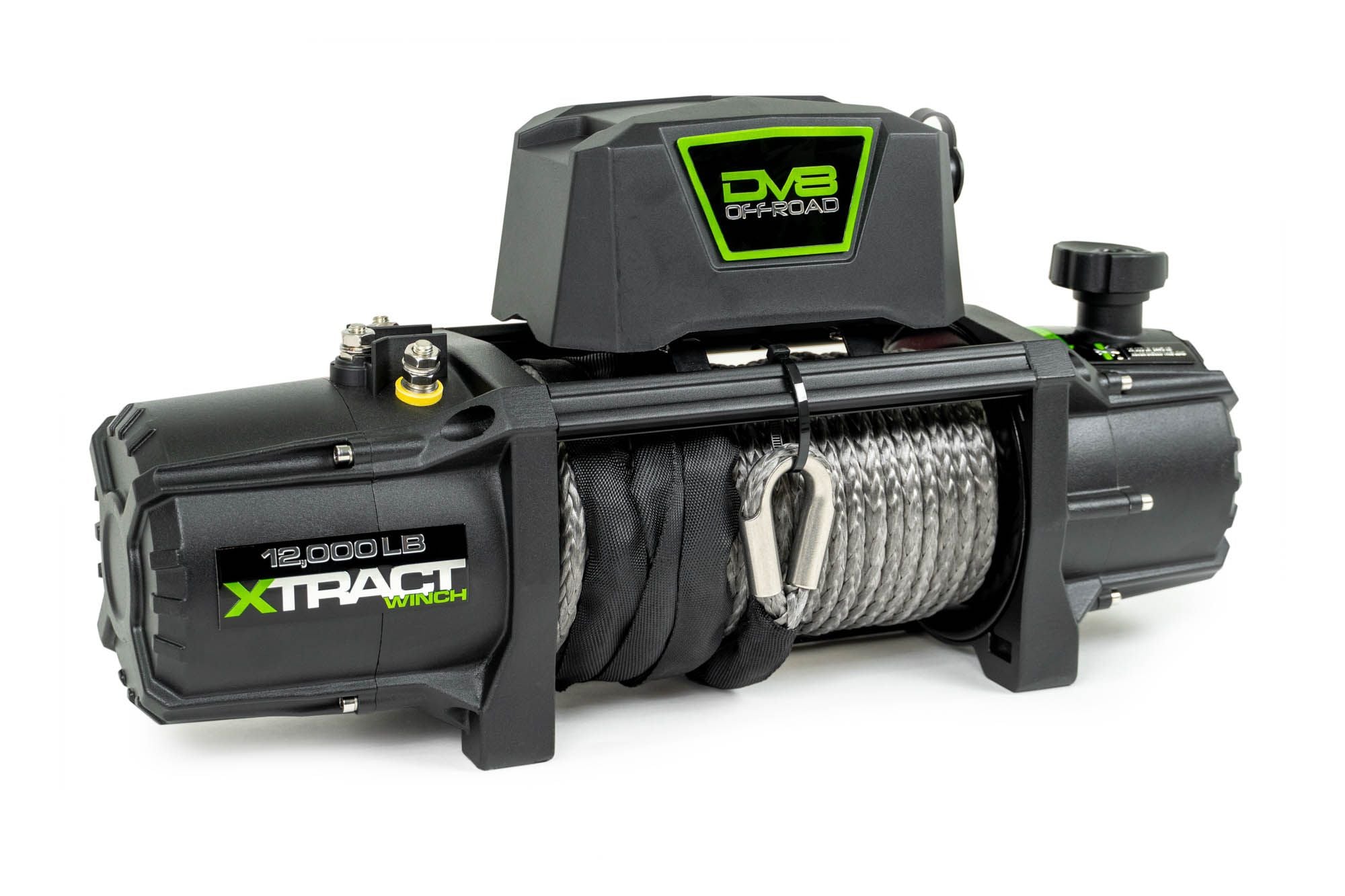

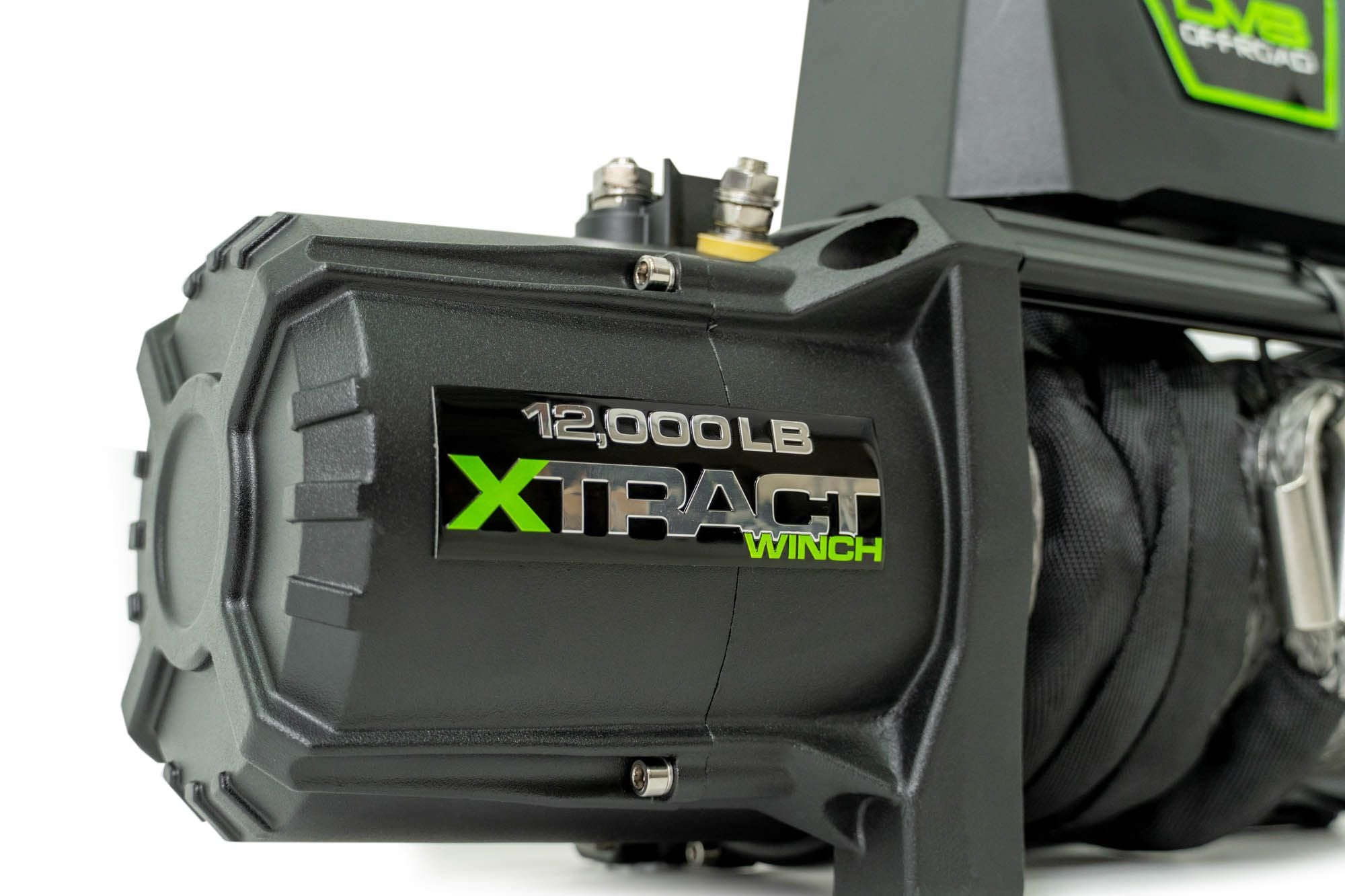

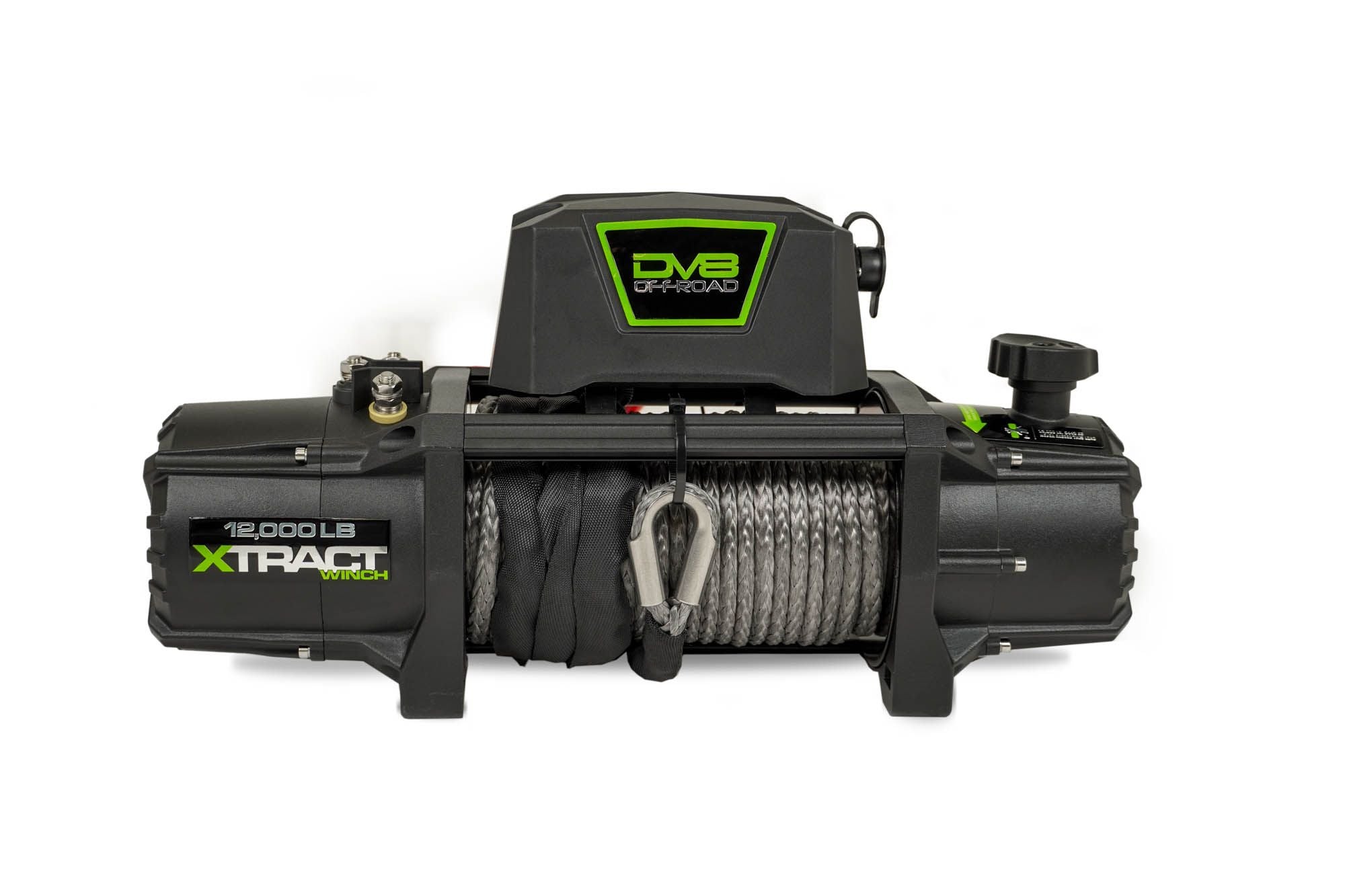

The DV8 Offroad Xtract 12K synthetic rope winch (WB12K-SR) is rated for a 12,000 lb pull and uses a standard 10 x 4.5-inch mounting footprint. It includes 80 feet of 3/8-inch synthetic rope, wired and wireless remotes, and an aluminum hawse fairlead.
12,000 lb Pulling Capacity and Synthetic Rope

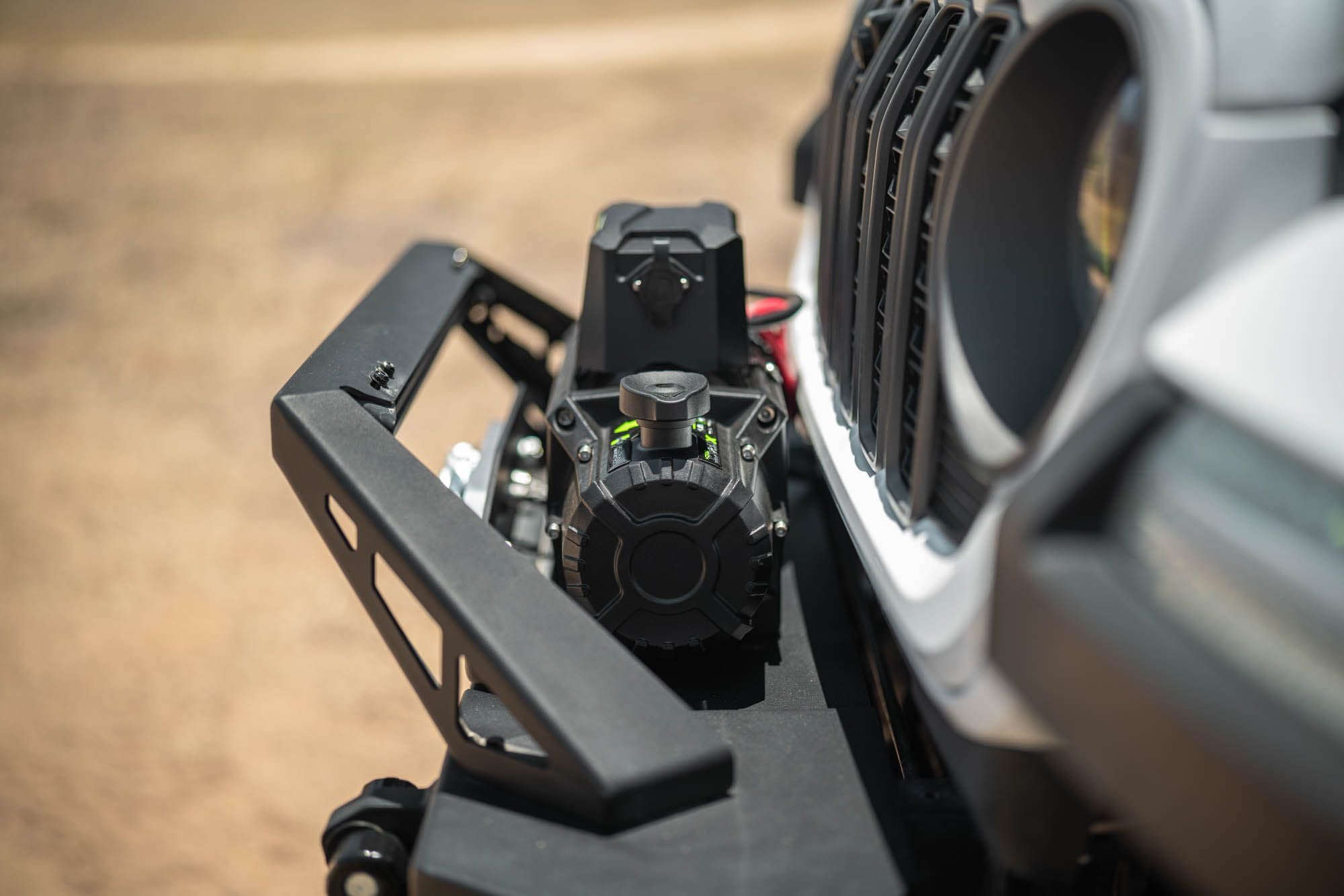

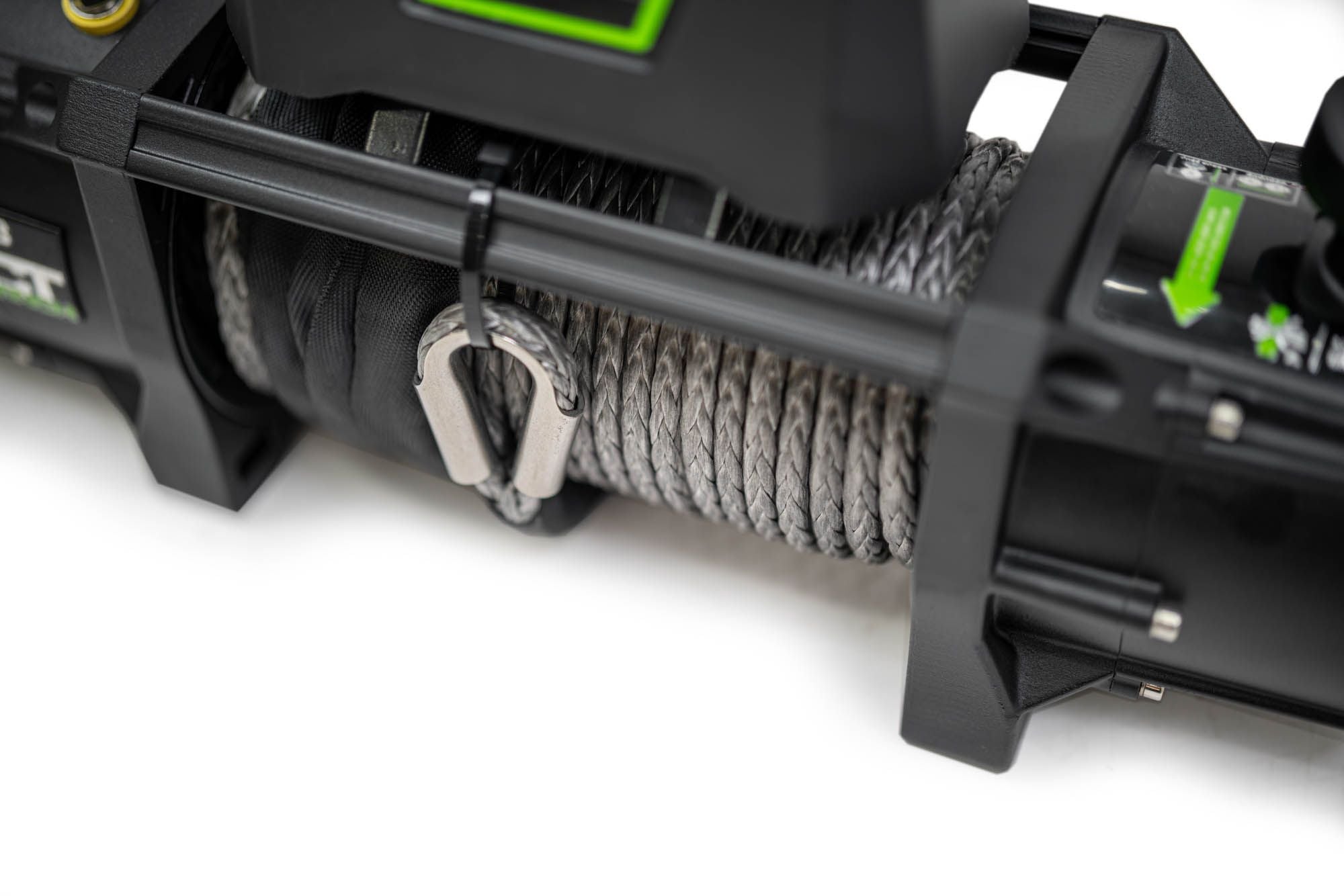

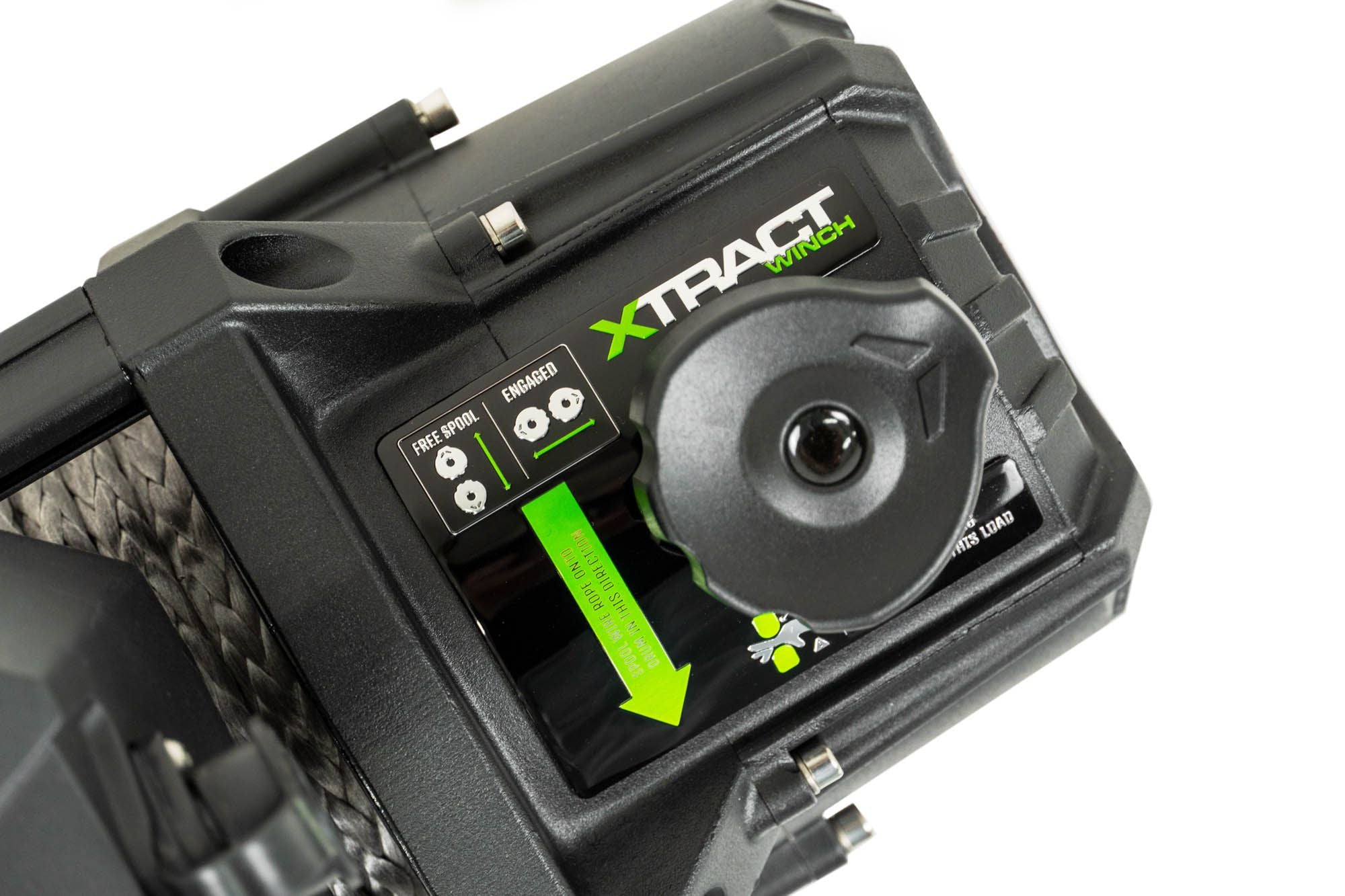

The synthetic winch line measures 3/8 inch by 80 feet and includes a 5-foot chafe guard for protection where the rope contacts abrasive surfaces. DV8 combines an aluminum housing with steel mechanical components and a manually operated clutch.
Wired and Wireless Controls

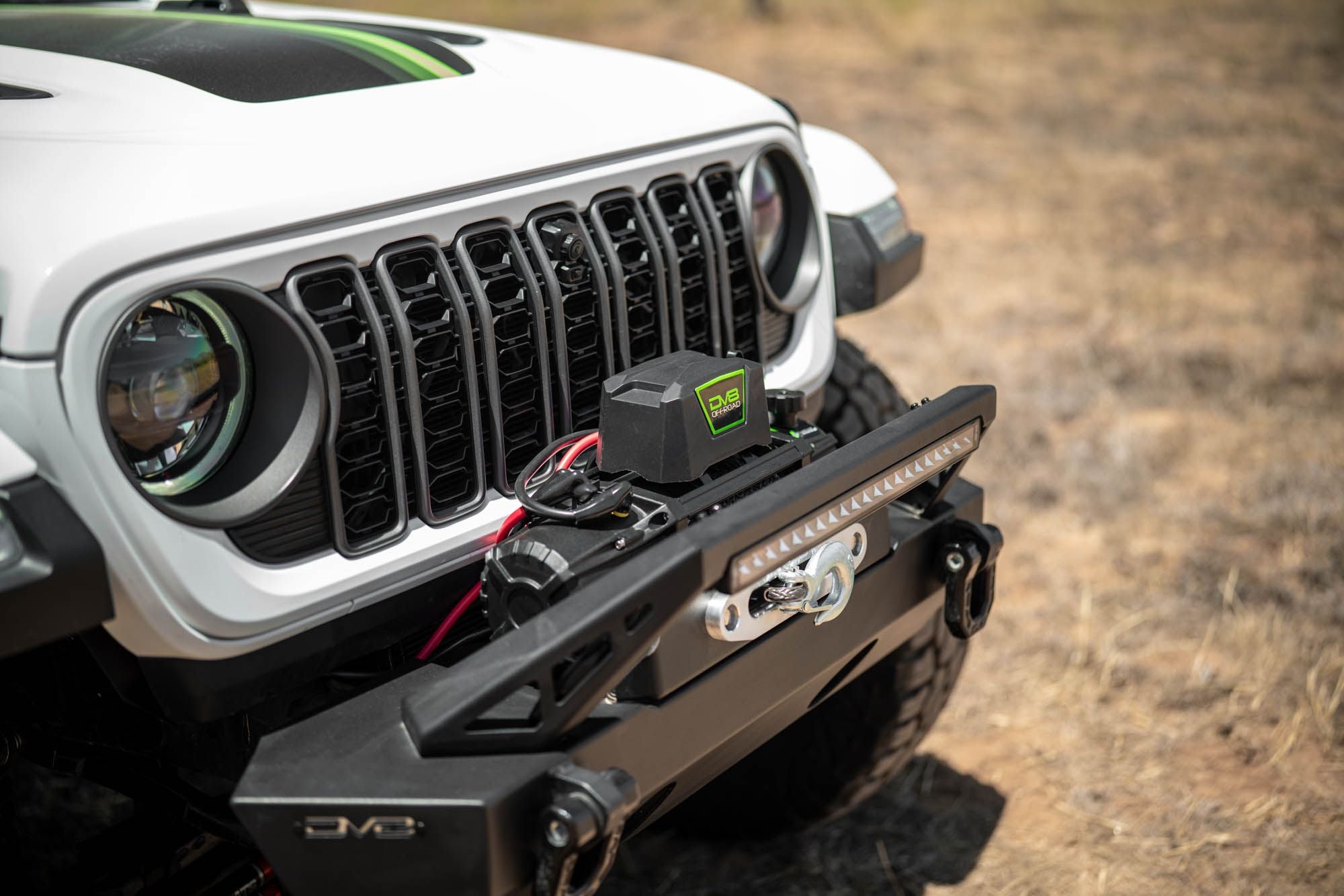

The included wired remote has a 12-foot lead. The wireless remote has a specified working range of up to 150 feet. A relocatable solenoid box allows additional positioning options where bumper and grille clearance is limited.
Mounting and Electrical Requirements

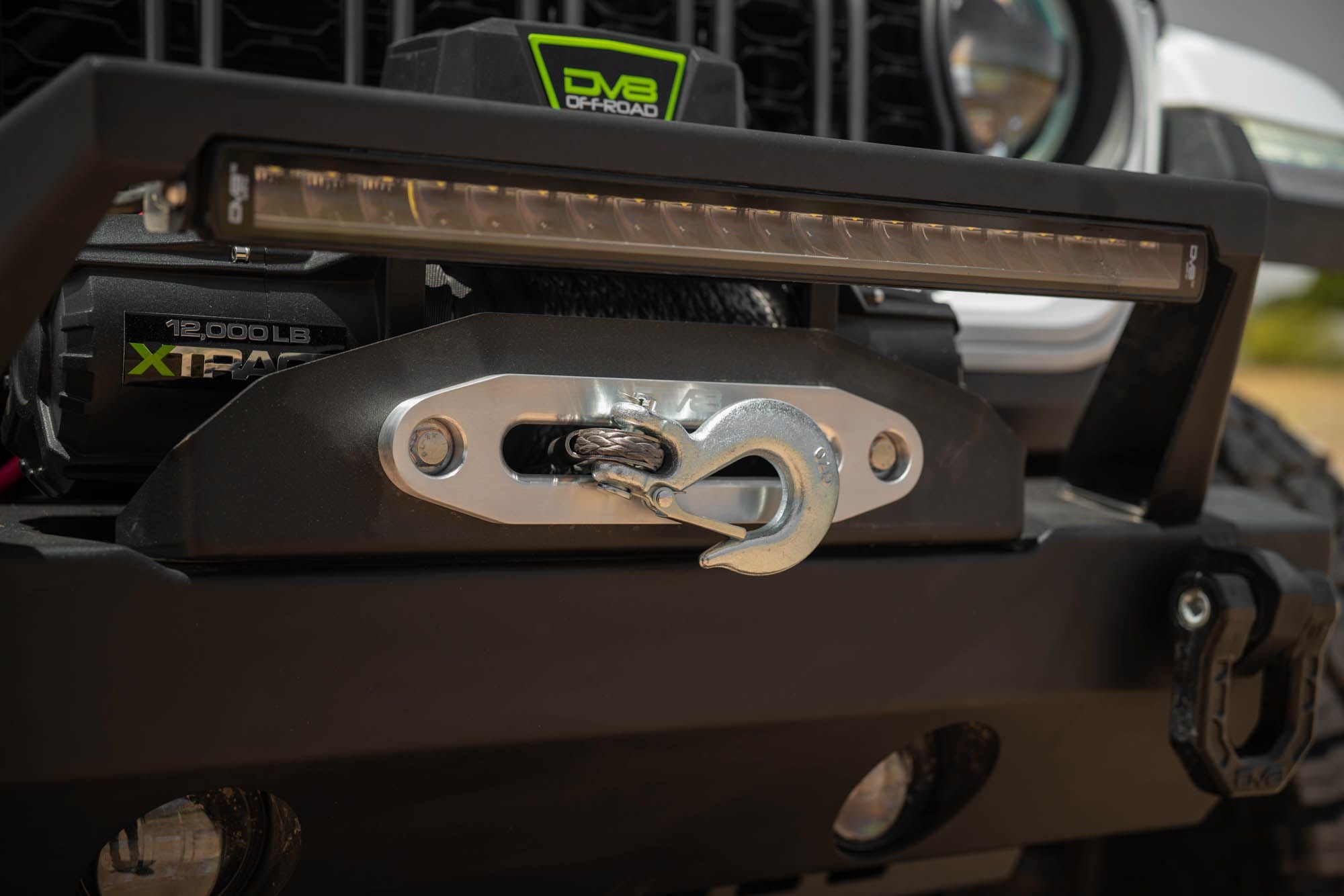

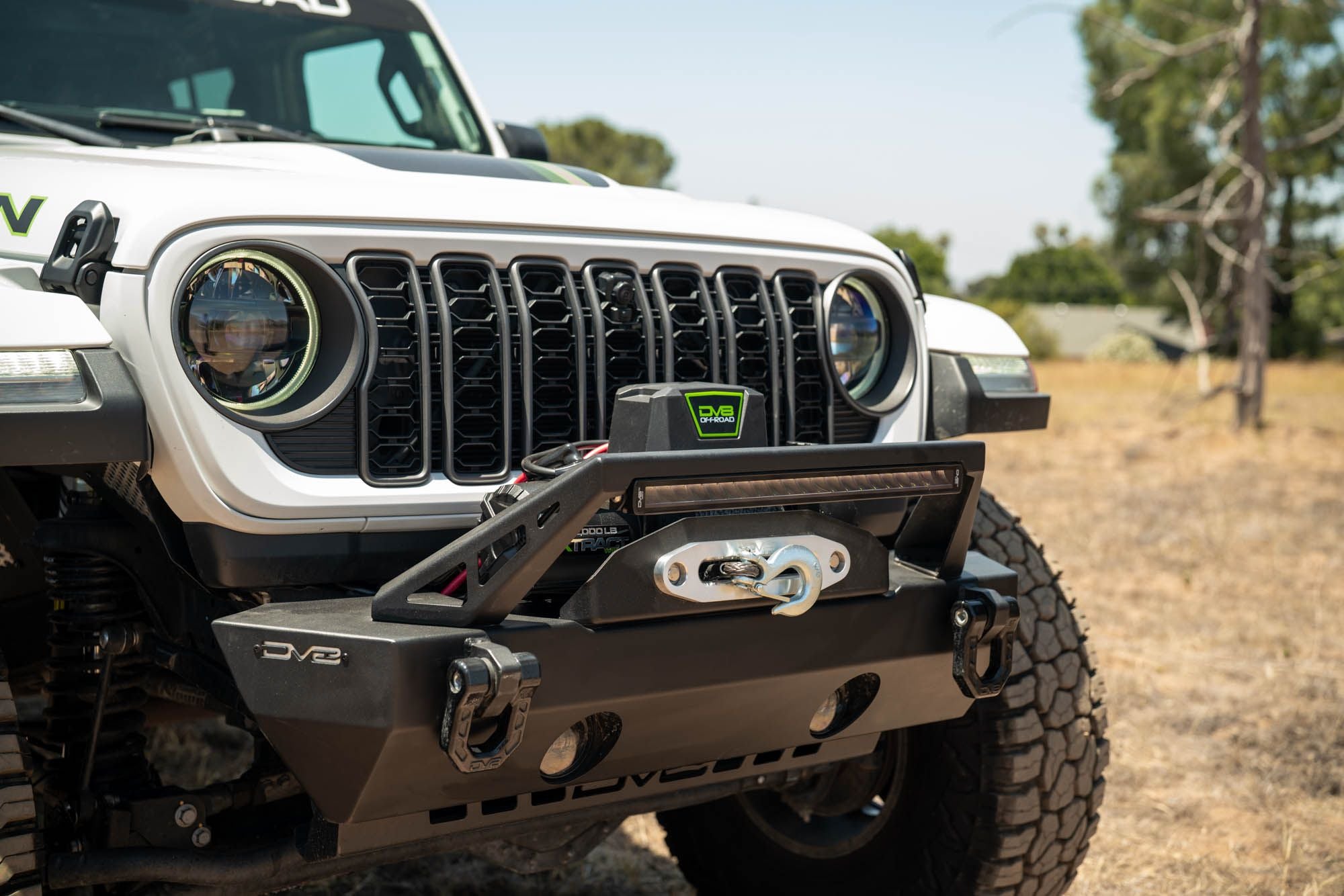

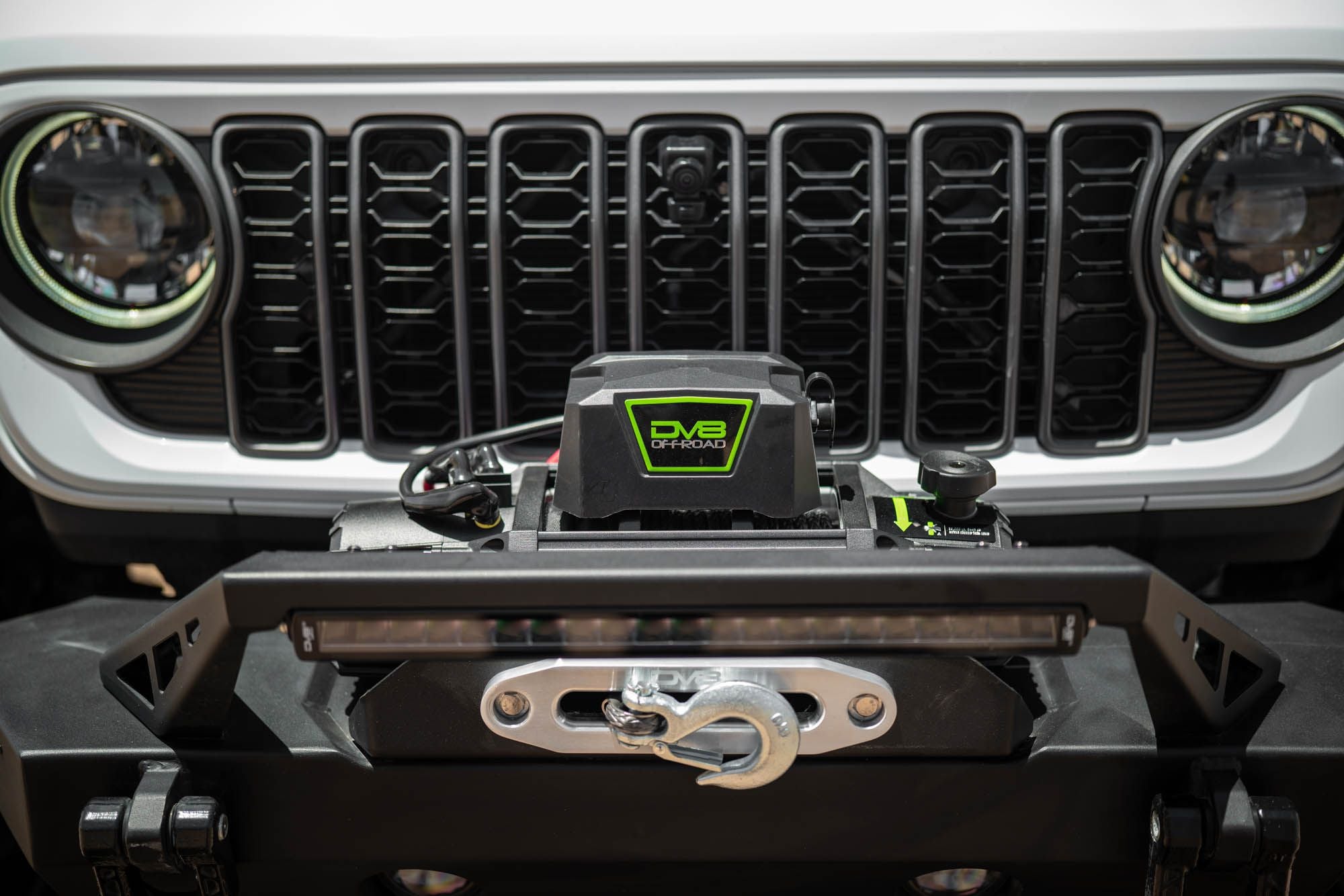

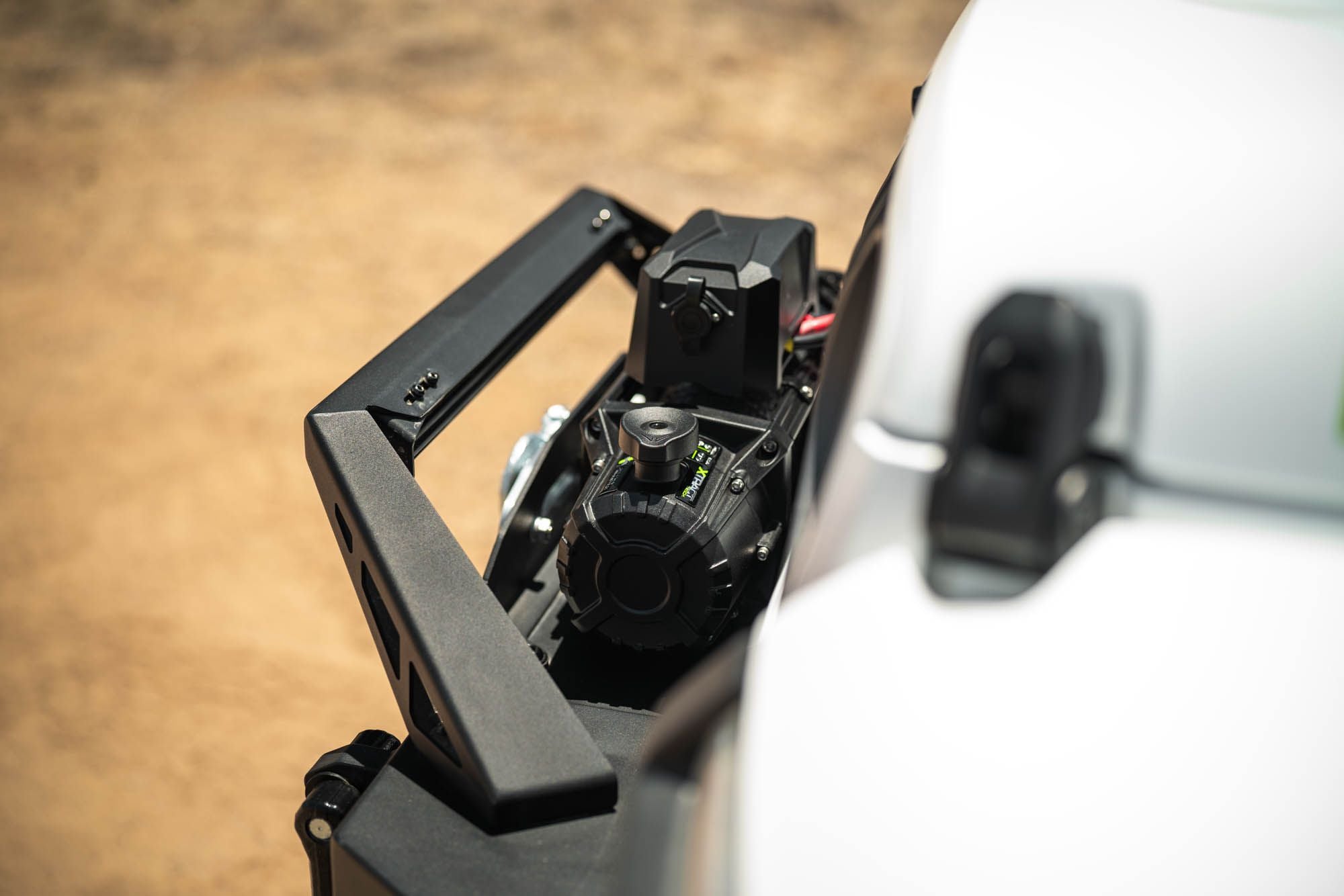

The winch uses a 10 x 4.5-inch mounting pattern and includes an aluminum hawse fairlead. Check your bumper's winch tray, fairlead opening, clutch access, body clearance, and electrical requirements before ordering. Wiring directly to the vehicle battery is required; a matching bolt pattern alone does not establish fitment with every winch bumper.

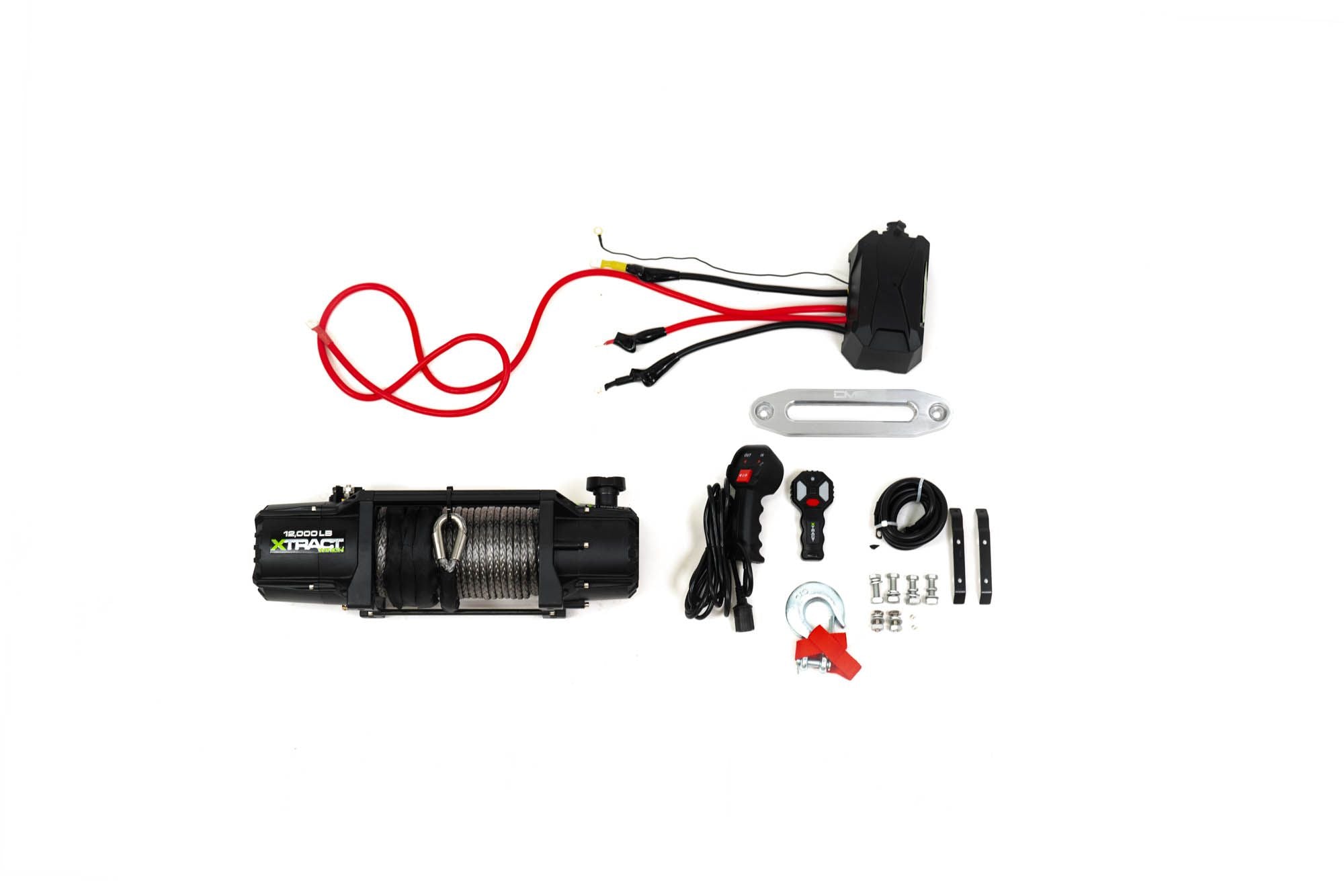

What's Included
- DV8 Xtract 12K Winch
- 80 feet of 3/8-inch synthetic rope
- Aluminum hawse fairlead
- Wired remote
- Wireless remote
- Hardware kit
Specs
| Vehicle | Universal |
|---|---|
| Trims | All trims |
| Doors | 2-Door / 4-Door |
| Fitment | Bolt-on + wire |
| Install time | 1.5 hr |
| Material | Aluminum + steel |
| Warranty | 1 Year |
| Brand | DV8 Offroad |
| Part number | WB12K-SR |
| GTIN | 810087816315 |
Questions
Do I need to upgrade my battery or alternator to run this reliably?
Peak draw under full load is 400 to 500 amps. Stock battery handles typical recovery bursts. Keep the engine running during recoveries. For heavy regular use with multiple pulls, a secondary battery is worth the investment.
How do I care for the synthetic rope after a water crossing, especially salt water?
Rinse with fresh water after any salt water or muddy crossing. Allow the rope to dry fully before spooling tight. Storing synthetic rope wet causes mildew and accelerated fiber degradation.
What is the chafe guard that comes in the box actually for?
It protects the rope where it contacts the fairlead edge during angled pulls. Slip it over the rope at the fairlead contact point before pulling at an angle. On a straight pull it's less critical.
Can this winch overheat on a sustained long pull?
Yes. Allow cool-down time between pulls. Reduced pulling power when hot is your signal to pause. Pushing a hot motor is how you damage it.
