DV8 Offroad
Part # MPBR-HP
M5 Hardware Kit for DV8 Digital Device MountsUniversal fit
$14.99
This part + add-ons
Free shipping $150+
Same-Day, before 2 PM
Fitment checkedWe review every order
1-year warrantyFully covered
Authorized dealerGenuine parts
Bronco Forge has been so easy to contact. I've talked to them on a Saturday, texted, and called. They are very responsive and helpful.
Fitment & Sensor Notes
Compatible with all DV8 Offroad dash mounts, center console bridges, and molle products containing M5 PEM nuts. Does NOT fit products using 10/24 SAE hardware without an adapter.
Military discount
Active duty, veterans and families
Not ready yet?
Order or email contact@broncoforge.com and we'll review your year, trim, door configuration, and any other fitment details relevant to the product so you can avoid any surprises later.
30 min
Install time
DV8 M5 PEM
Fitment
Stainless steel
Material
All trims
Universal
Details
Replacement and Extra Hardware for DV8 Dash Mounts, Center Console Bridges, and Molle Products
The DV8 Offroad M5 Hardware Kit covers replacement and supplemental fasteners for any DV8 digital device mount, center console bridge, or molle product that uses M5 PEM nuts. If you stripped a PEM nut mounting a RAM diamond base, lost a bolt during install, or need extra washers for a multi-device setup, this kit has you covered. Black coated stainless steel throughout. Sold as one kit.

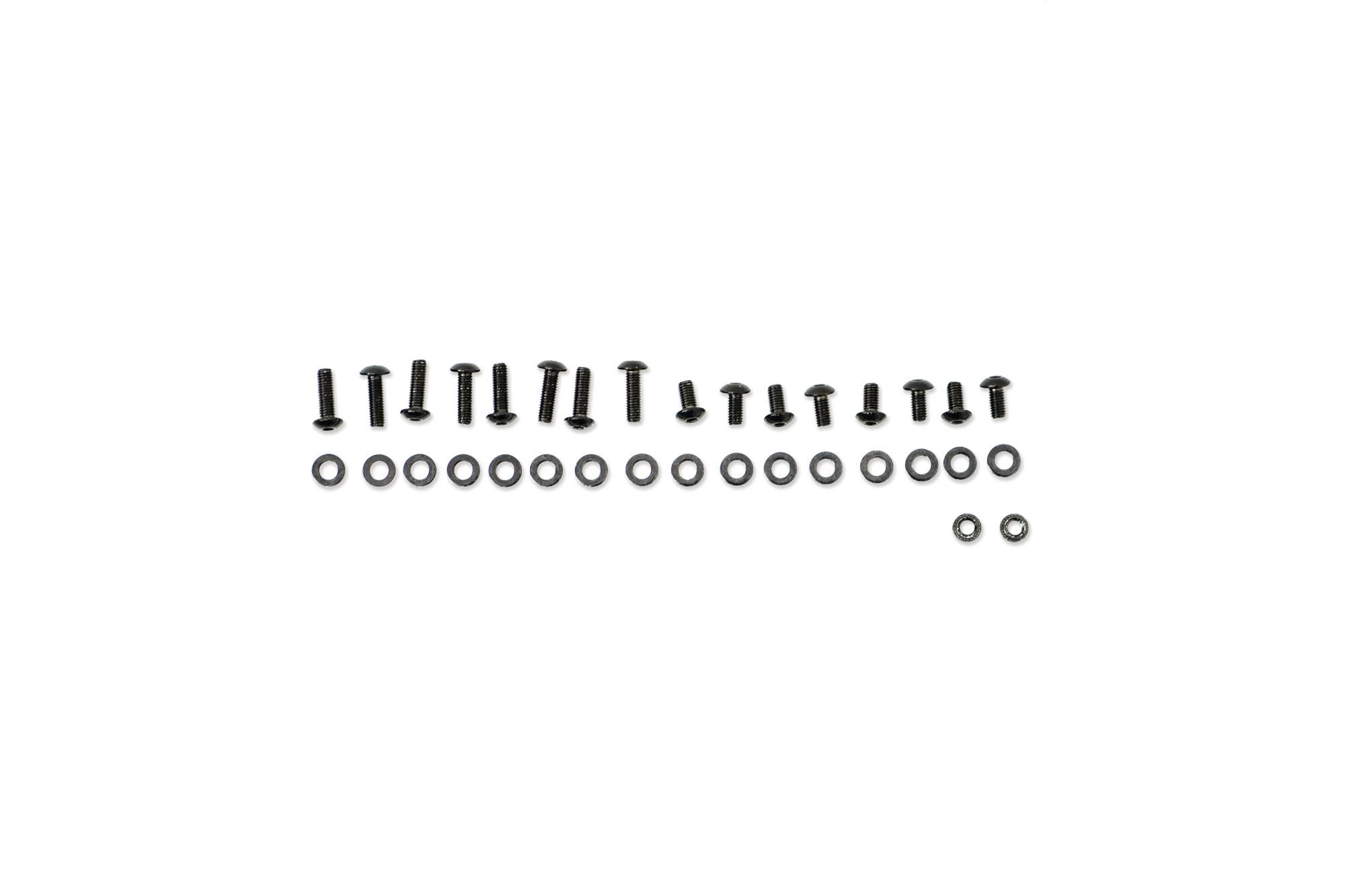

What's Included
- 8x M5x12mm bolts
- 8x M5x16mm bolts
- 16x M5 flat washers
- 2x M5 replacement PEM nuts
Fitment
Universal. Compatible with all DV8 Offroad dash mounts, center console bridges, and molle products containing M5 PEM nuts. Works with RAM diamond base mounts and other accessories that use M5 hardware. Does NOT fit products using 10/24 SAE hardware without an adapter.
Key Specs
- Material: Black coated stainless steel
- Bolt sizes: M5x12mm and M5x16mm
- Washers: M5 flat, 16 included
- Replacement PEM nuts: M5, 2 included
- Warranty: 1 year
- SKU: MPBR-HP
- UPC: 810087811242
WARNING: This product can expose you to chemicals including lead and lead compounds, DEHP and bisphenol A (BPA) which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Specs
| Vehicle | Universal |
|---|---|
| Trims | All trims |
| Doors | 2-Door / 4-Door |
| Fitment | DV8 M5 PEM |
| Install time | 30 min |
| Material | Stainless steel |
| In the box | 8x M5x12mm bolts 8x M5x16mm bolts 16x M5 flat washers 2x M5 replacement PEM nuts |
| Warranty | 1 Year |
| Brand | DV8 Offroad |
| Part number | MPBR-HP |
| GTIN | 810087811242 |
Questions
Which DV8 products does this hardware kit work with?
Any DV8 Offroad dash mount, center console bridge, or molle panel that uses M5 PEM nuts, including the DMBR-01 dash mount and CCBR-01 center console bridge.
What is the difference between the M5x12mm and M5x16mm bolts?
The two lengths accommodate different RAM diamond base mount depths and stacking configurations. Use M5x12mm for standard single mounts and M5x16mm where additional clearance is needed.
Does this work with RAM mounts?
Yes. This hardware is designed to mount RAM diamond base mounts to DV8 products with M5 PEM nuts.
Does this fit 10/24 SAE holes?
No. This kit is M5 metric hardware only. It does not fit products using 10/24 SAE holes without an adapter.
