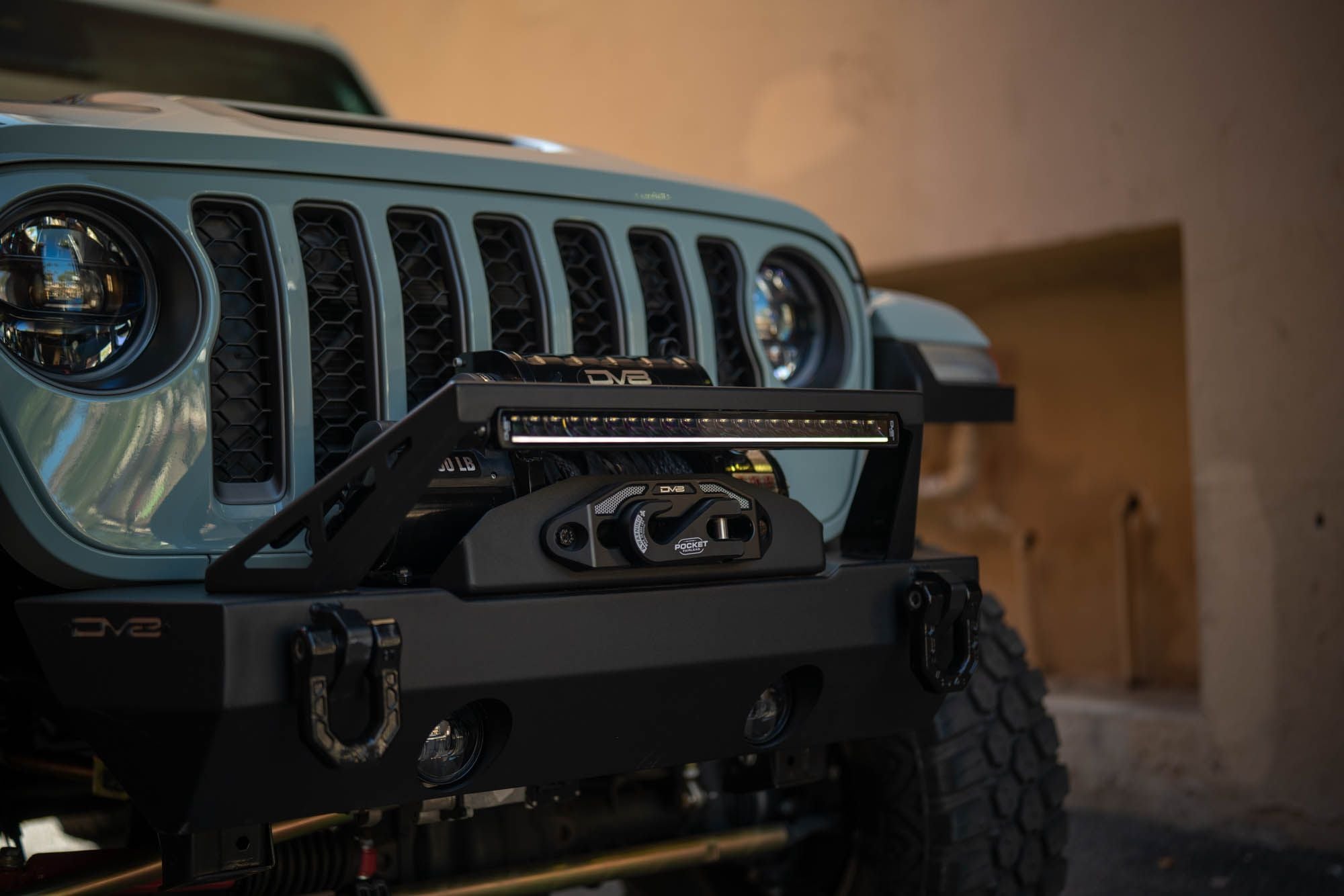

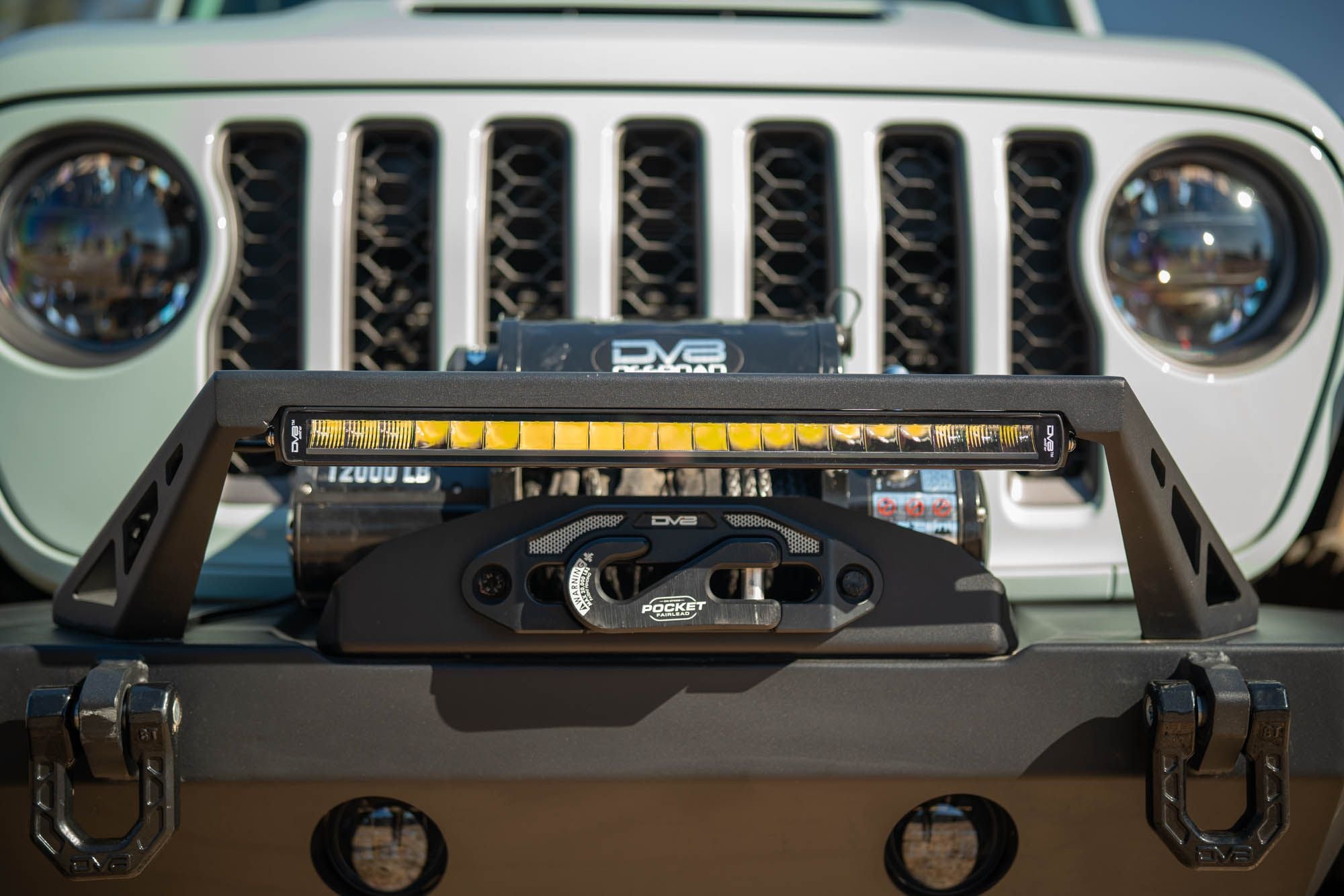

DV8 Offroad Elite Series 20-inch single-row LED light bar with halo, installed front close-up above a Jeep winch
DV8 Offroad Elite Series 20-inch single-row LED light bar with halo, amber halo illuminated, angled installed view

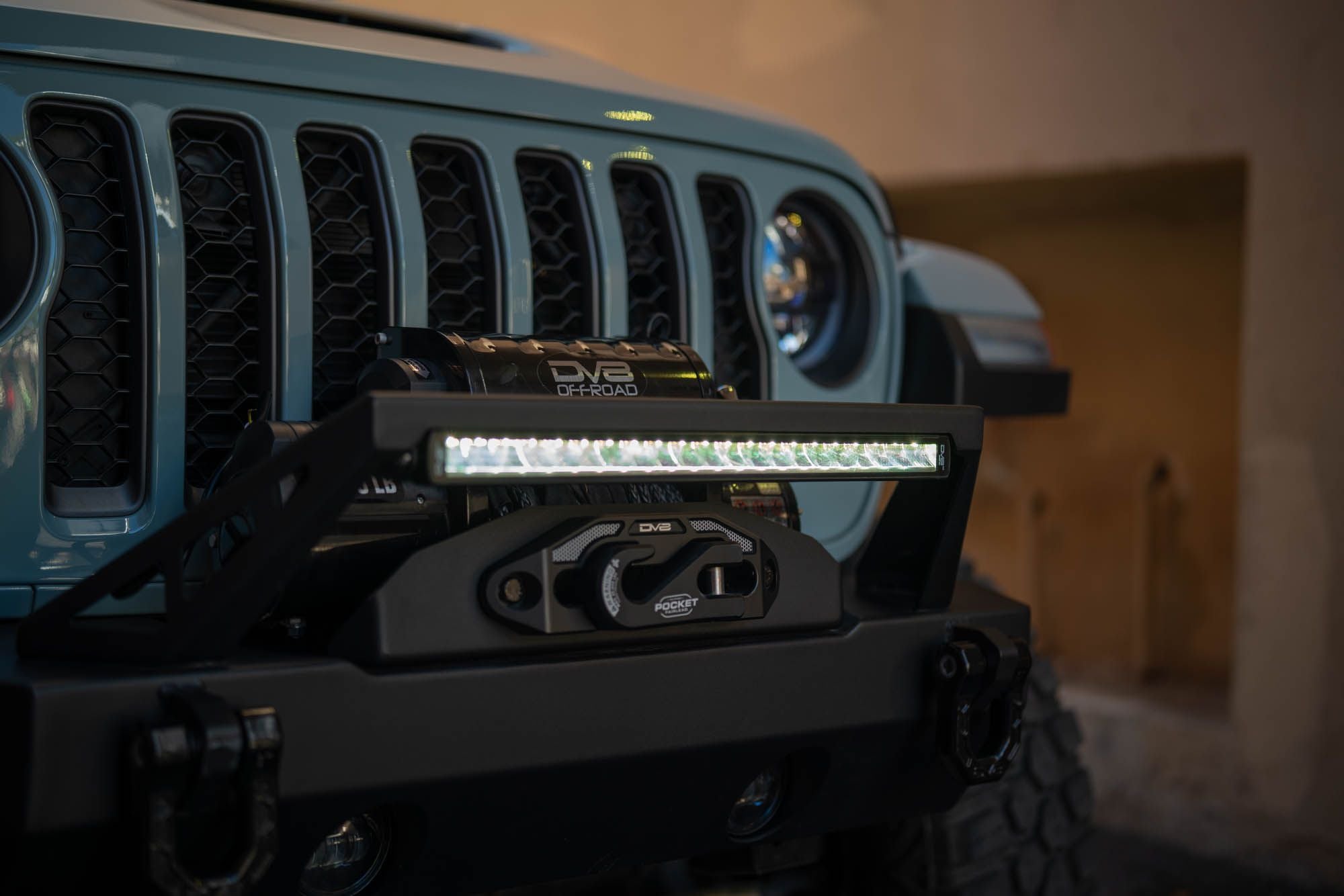

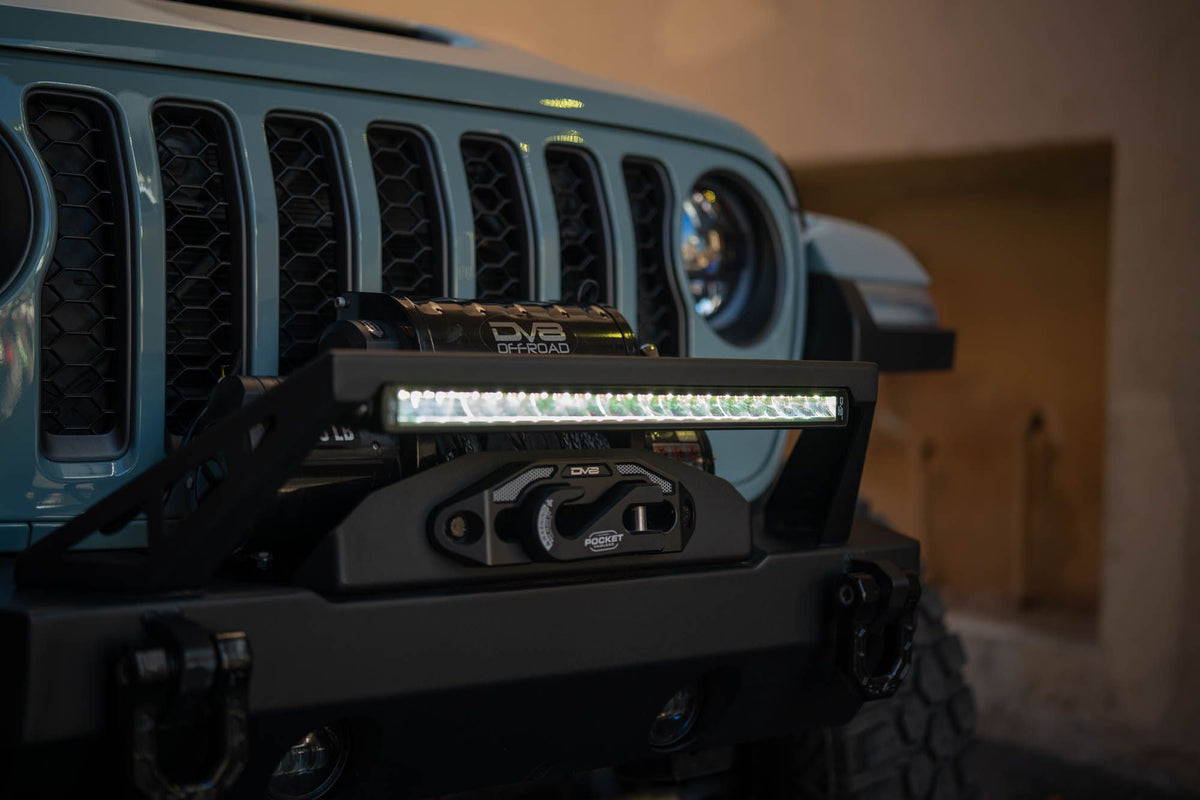

DV8 Offroad Elite Series 20-inch single-row LED light bar with halo, white LEDs illuminated on a Jeep bumper

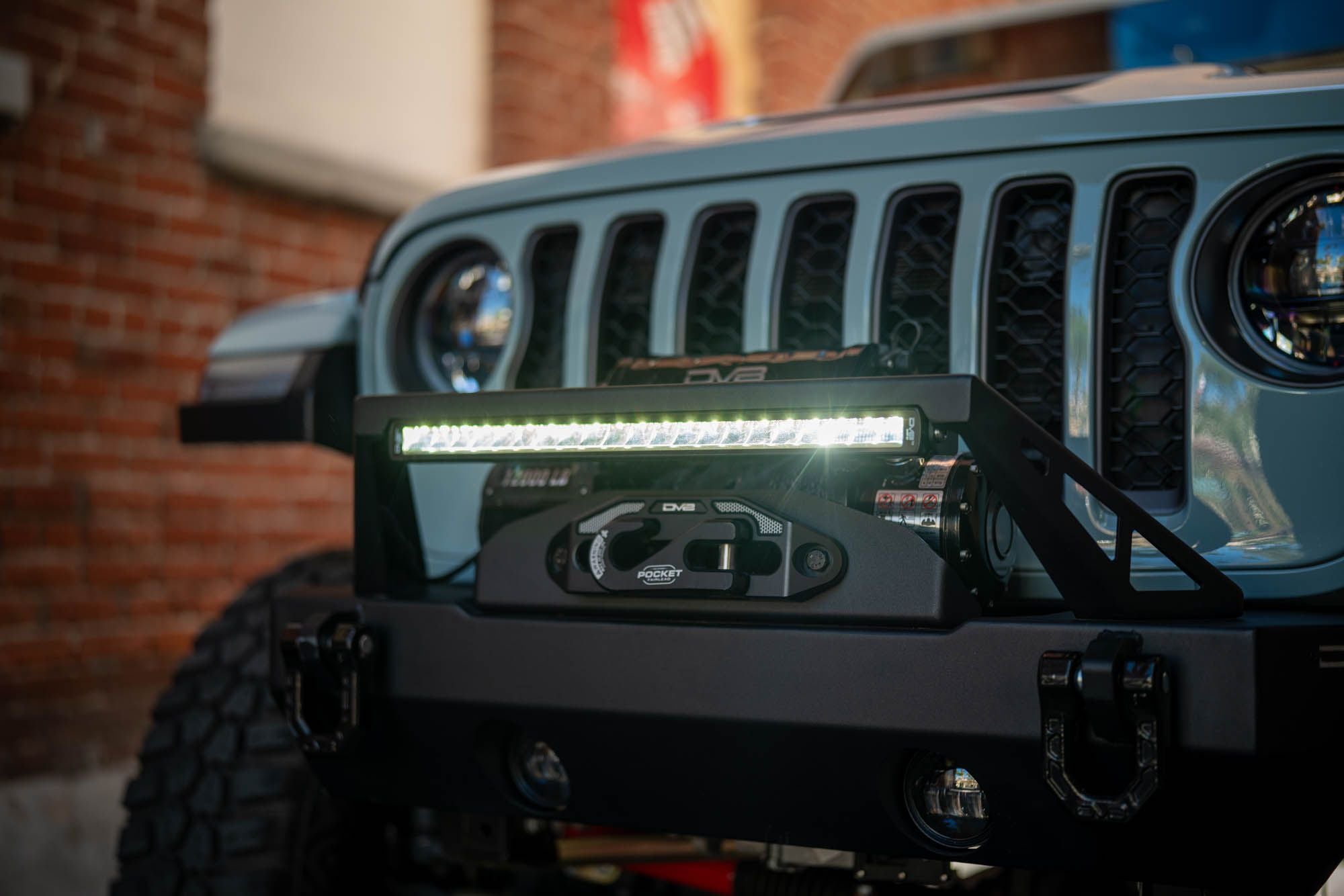

DV8 Offroad Elite Series 20-inch single-row LED light bar with halo, opposite front angle with white LEDs illuminated
DV8 Offroad Elite Series 20-inch single-row LED light bar with halo, wide installed view with the light switched off

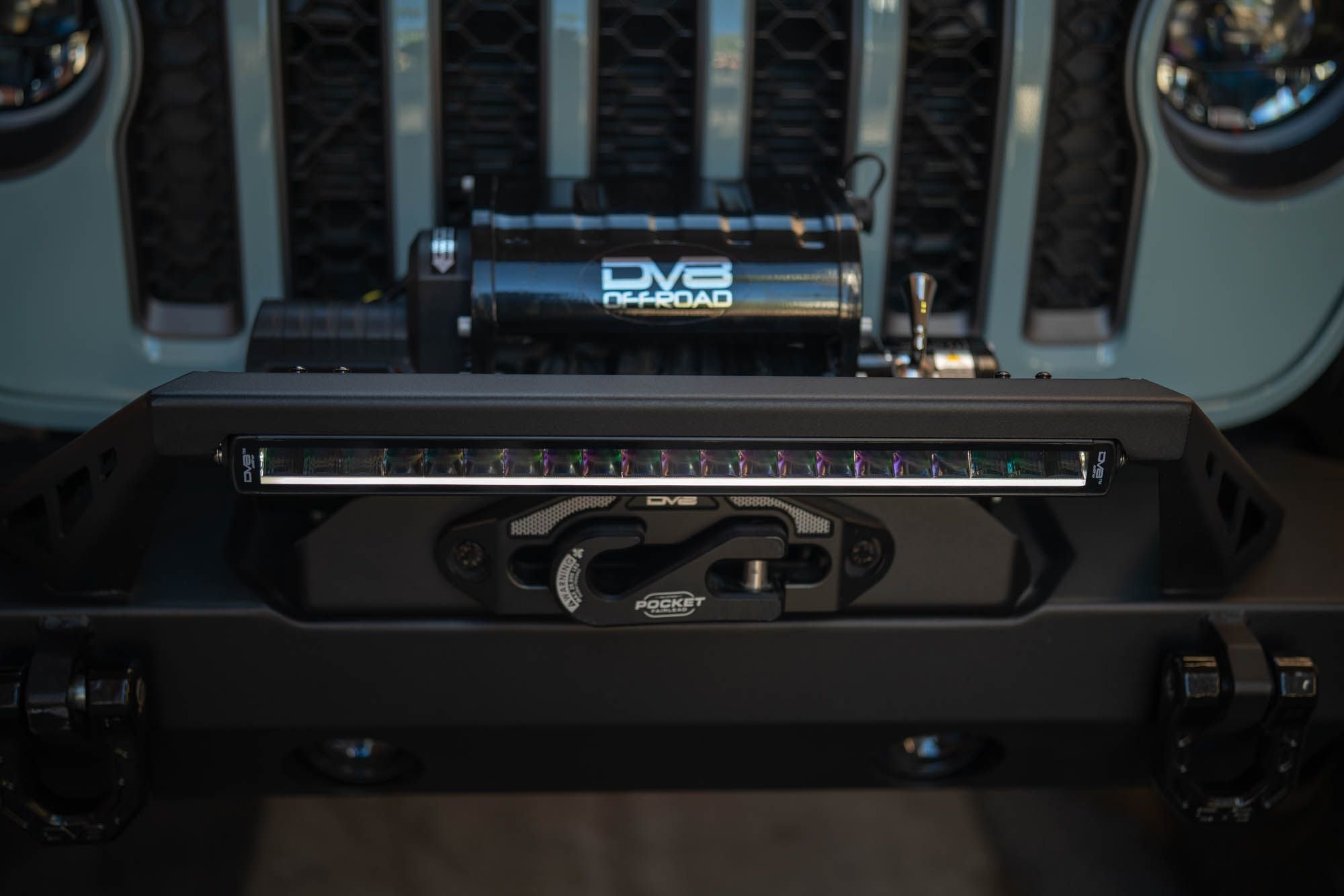

DV8 Offroad Elite Series 20-inch single-row LED light bar with halo, straight-on detail of the unlit LED row

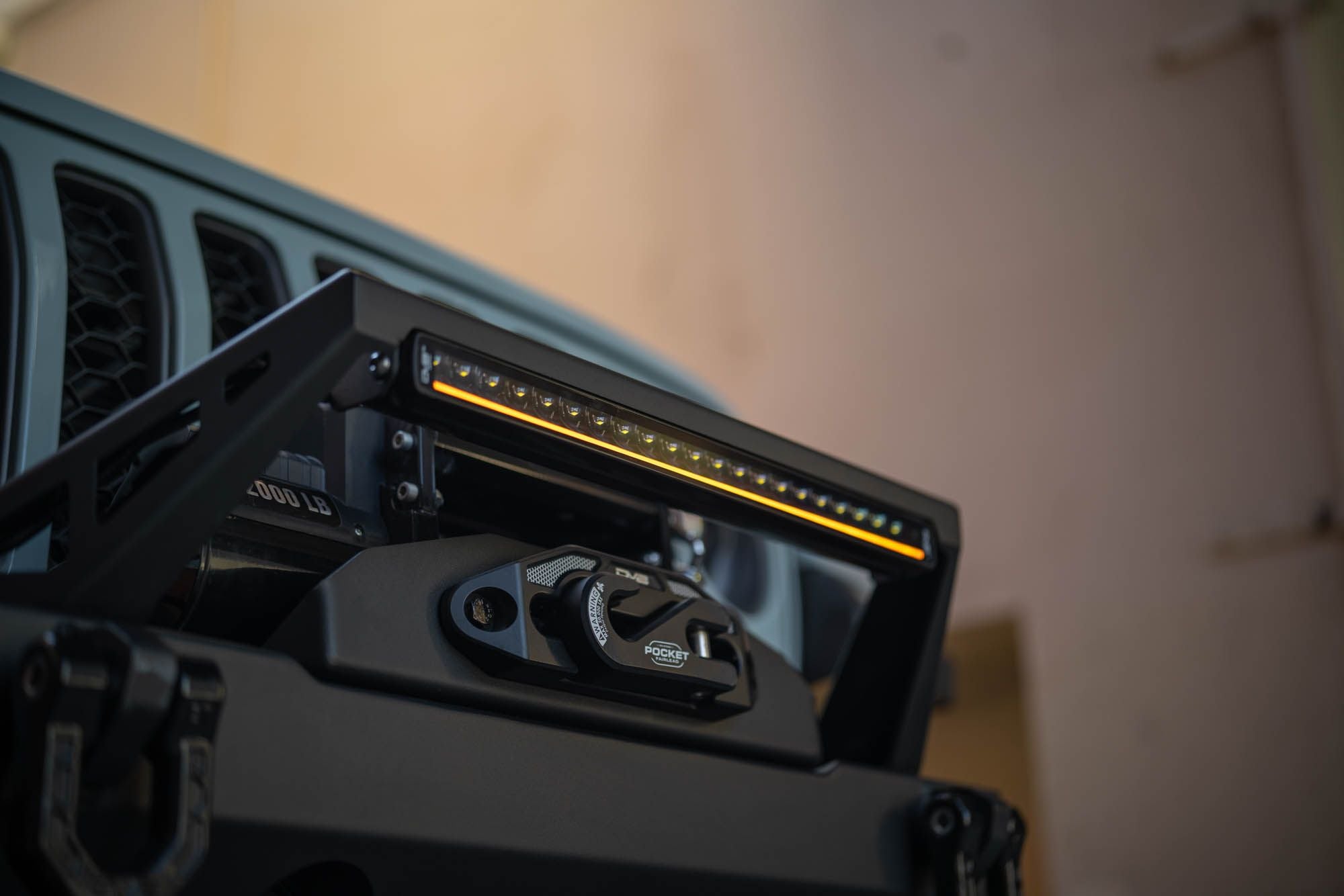

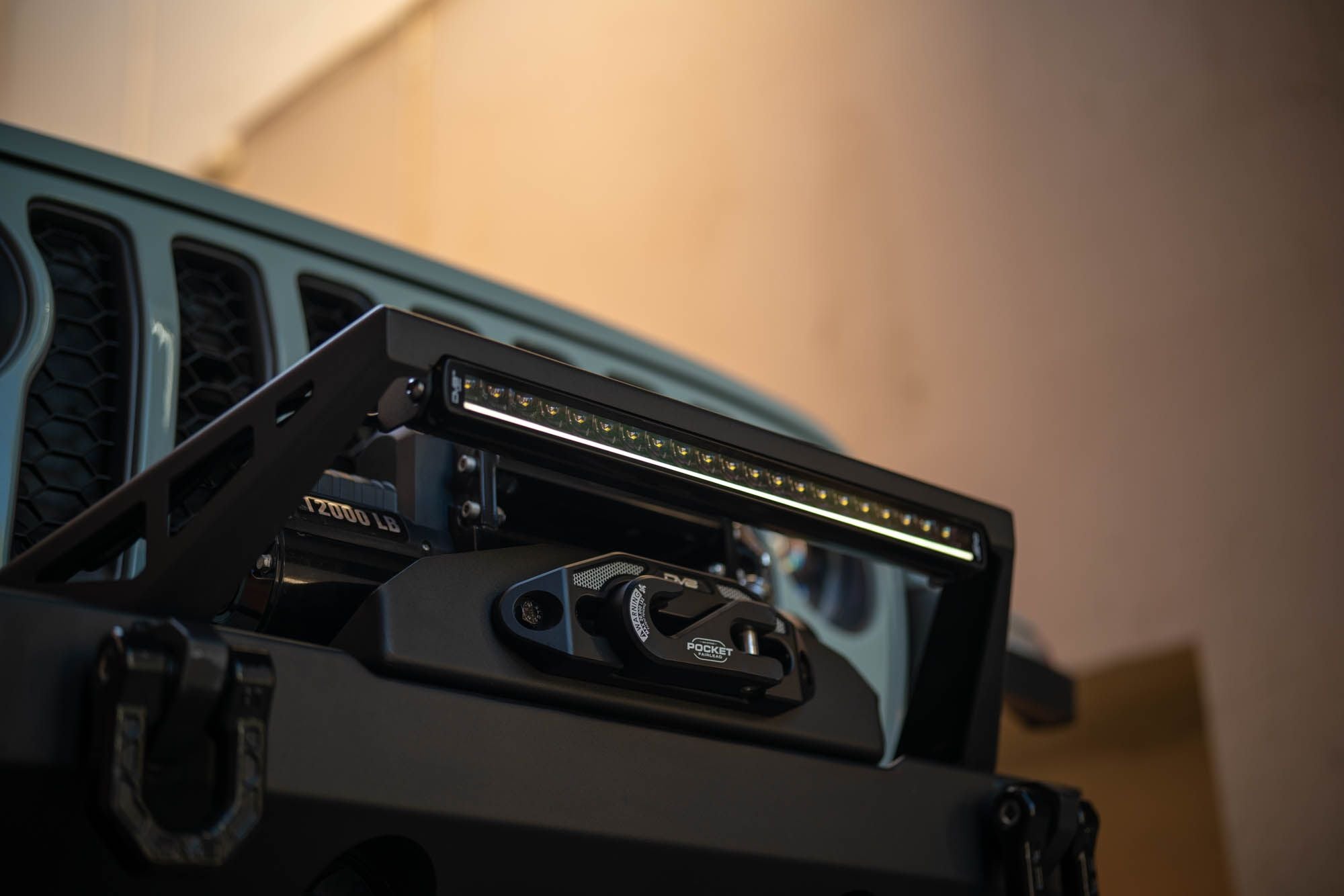

DV8 Offroad Elite Series 20-inch single-row LED light bar with halo, low-angle close-up with amber halo illuminated

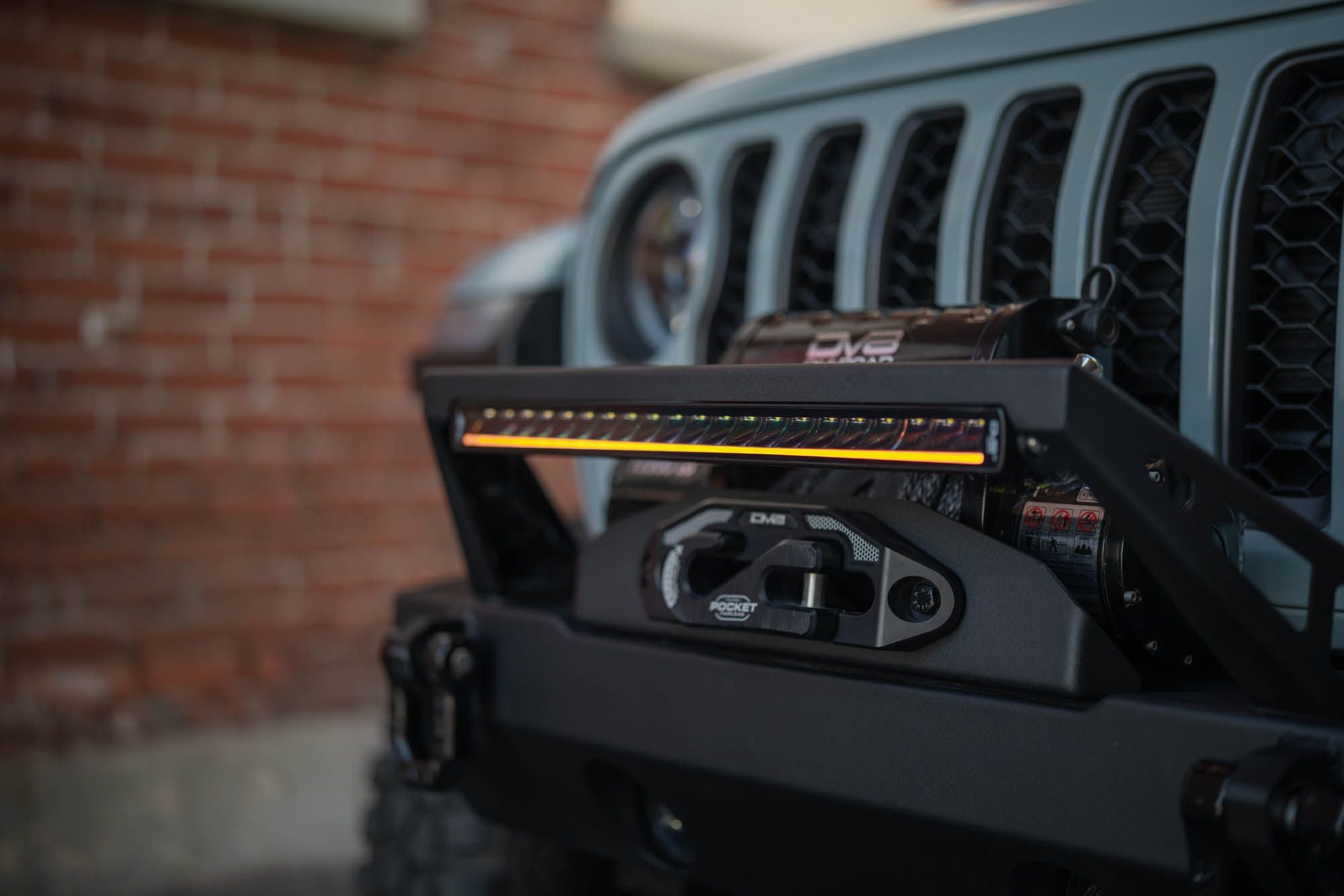

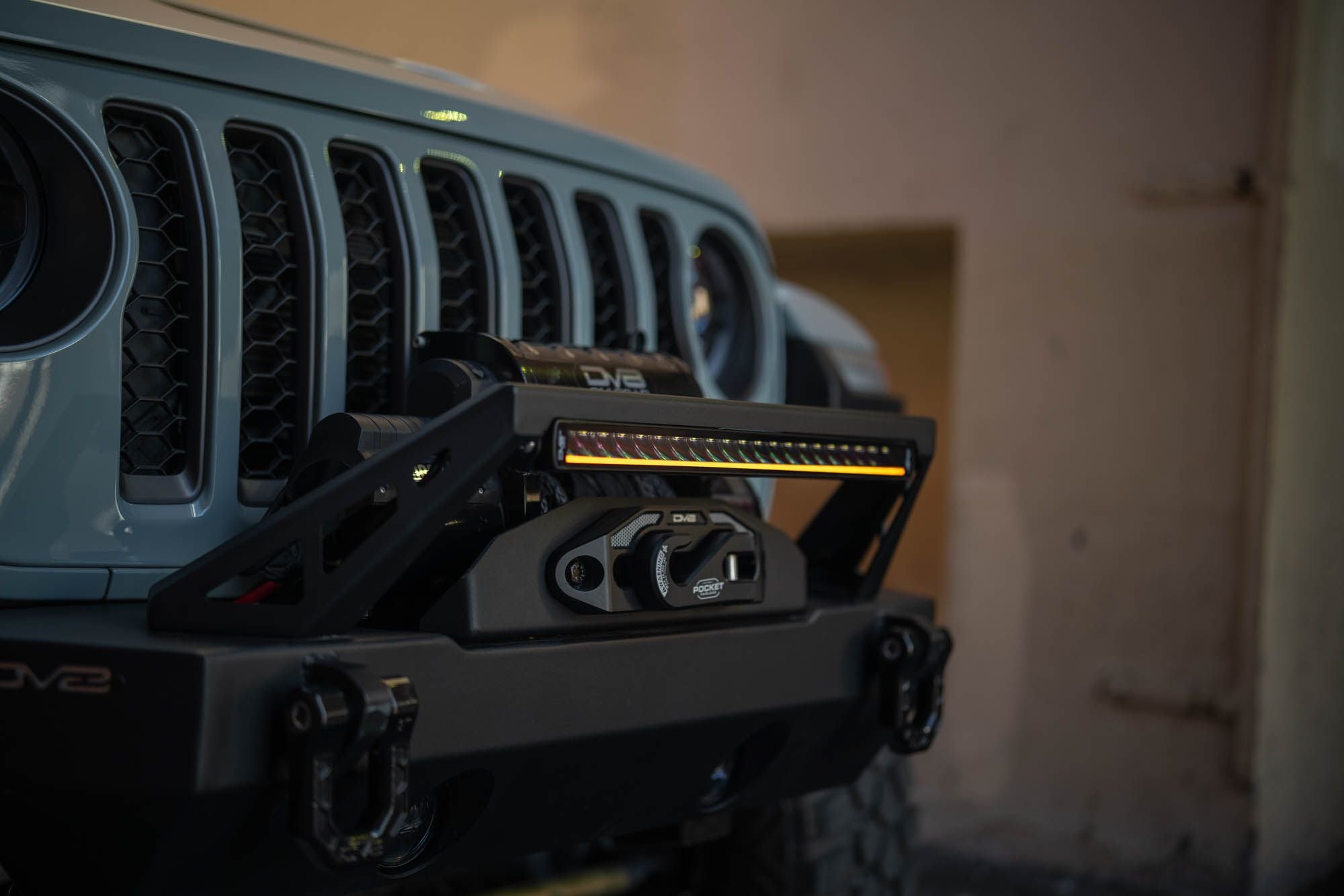

DV8 Offroad Elite Series 20-inch single-row LED light bar with halo, opposite quarter view with amber halo illuminated

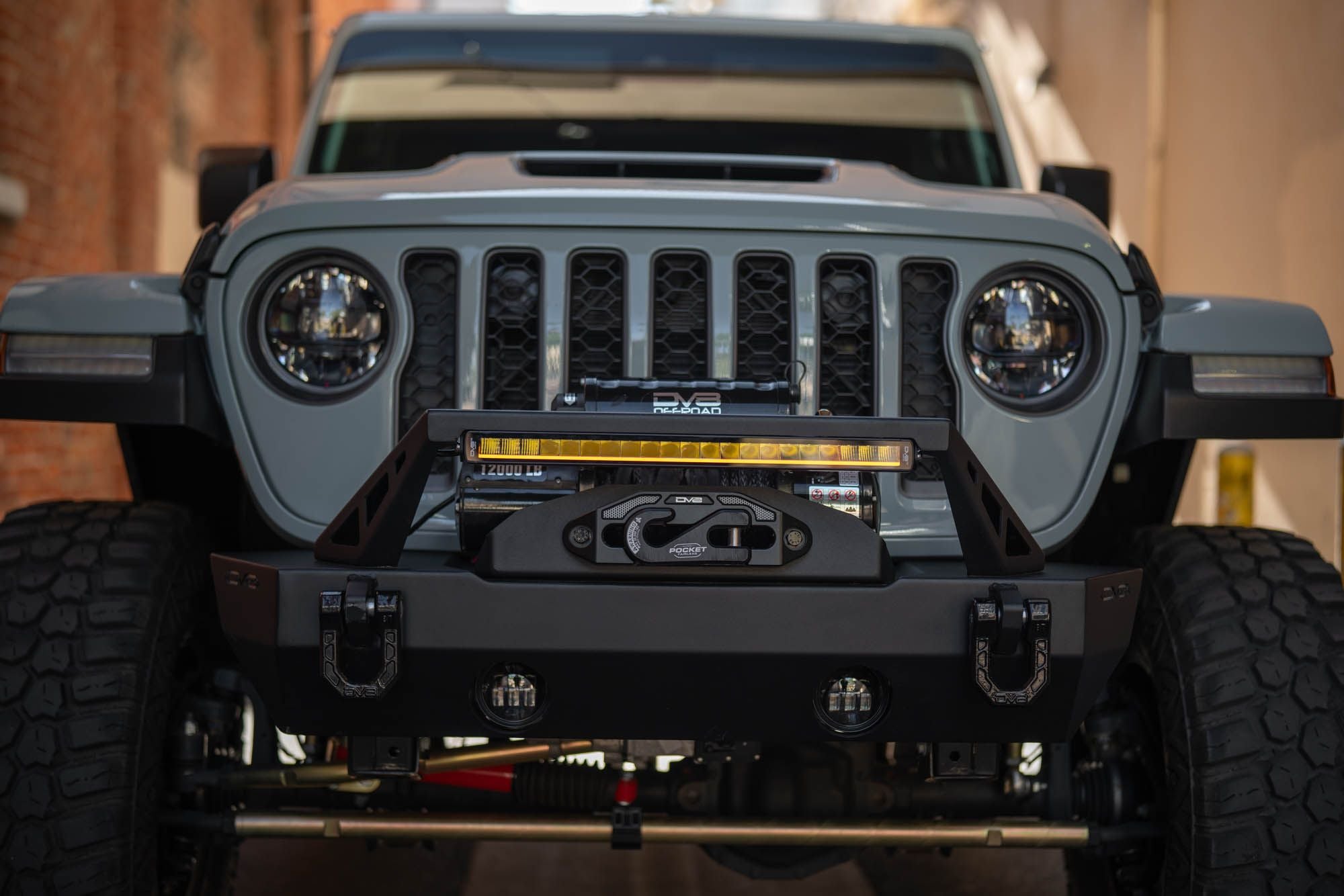

DV8 Offroad Elite Series 20-inch single-row LED light bar with halo, full front Jeep view with the amber halo glowing

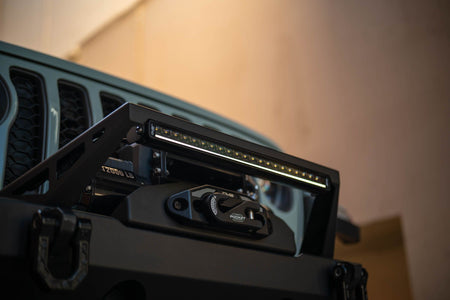

DV8 Offroad Elite Series 20-inch single-row LED light bar with halo, angled installed view of the unlit light bar

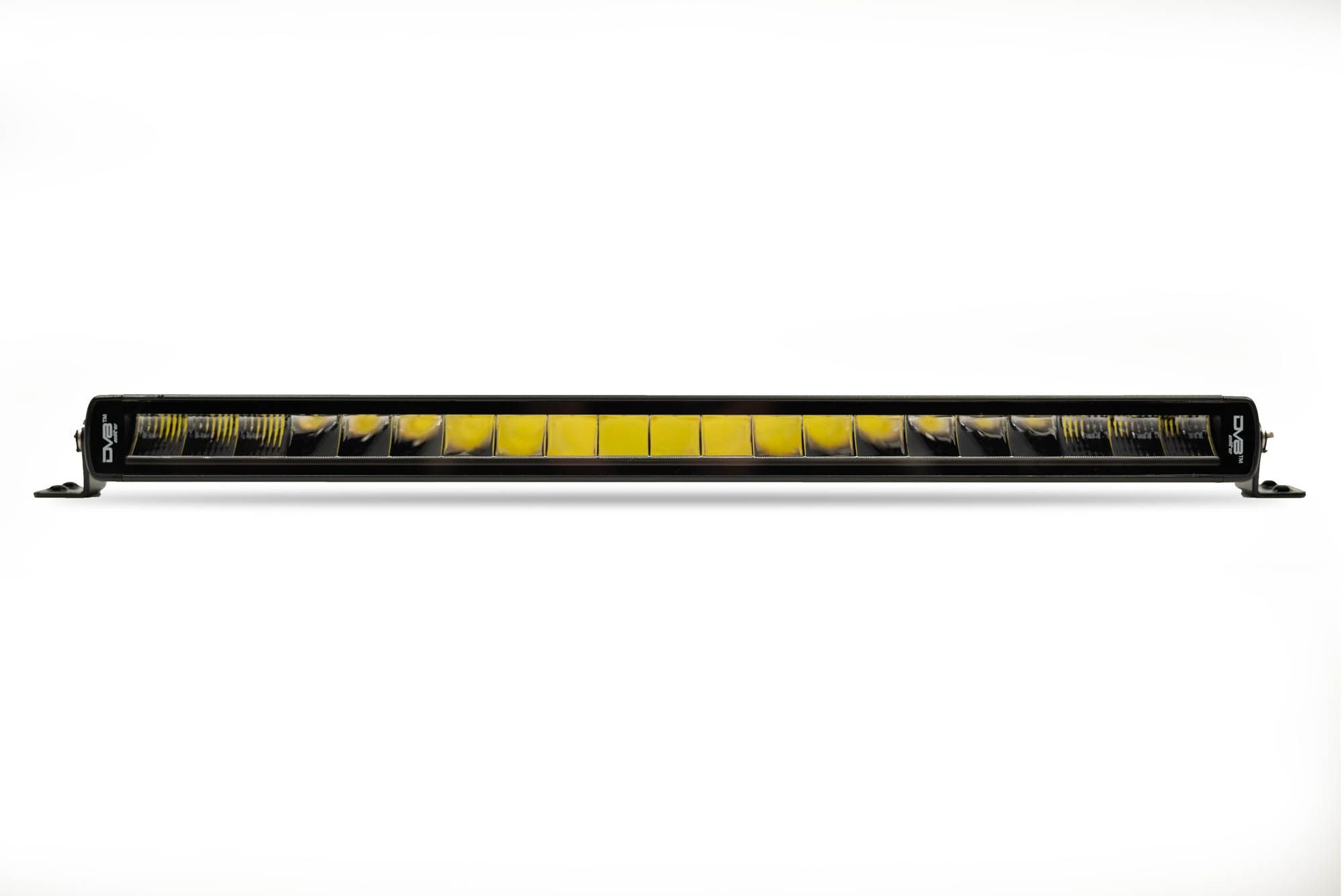

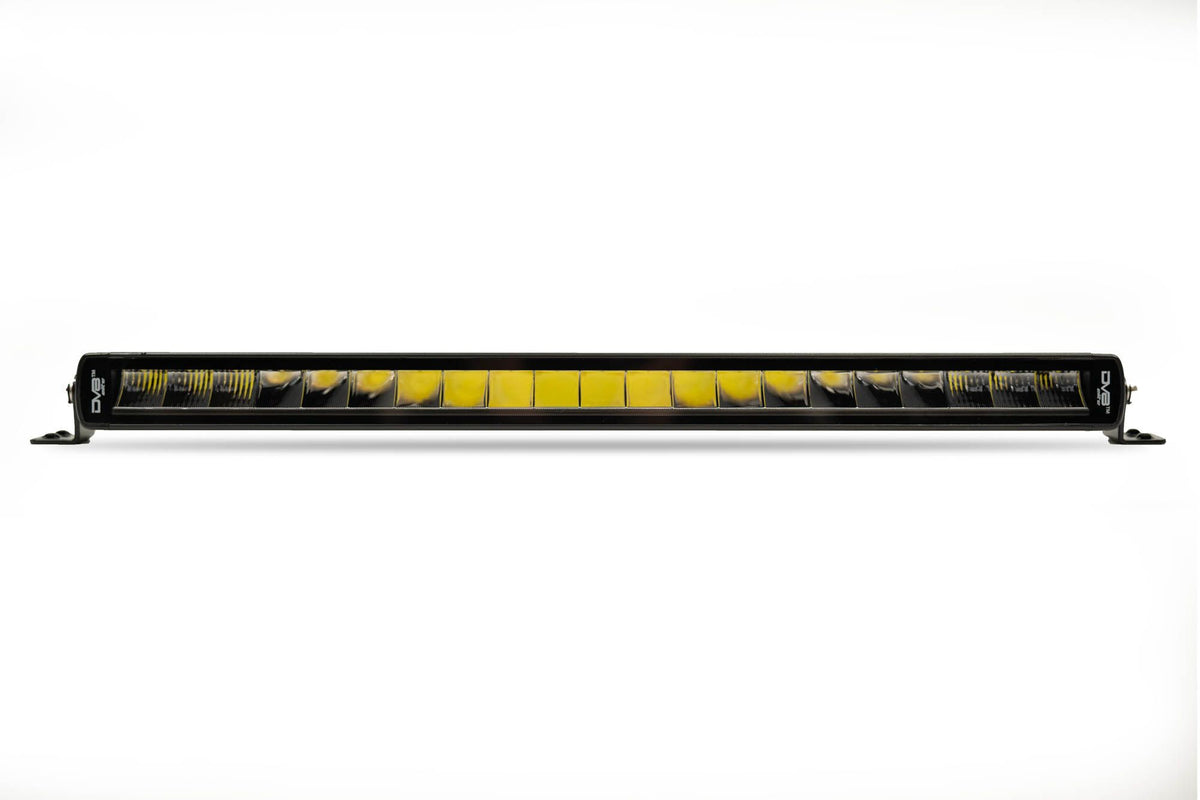

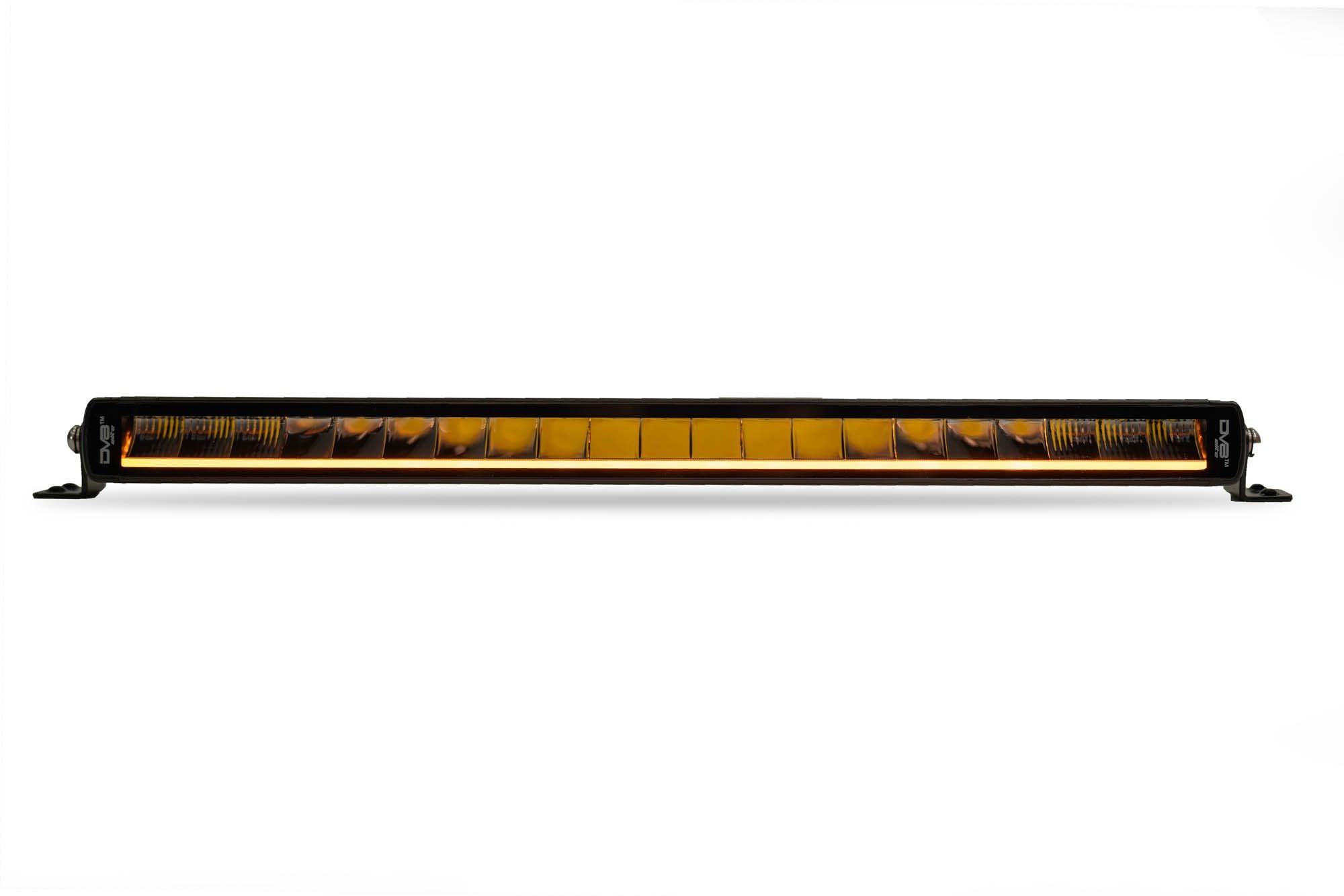

DV8 Offroad Elite Series 20-inch single-row LED light bar with halo, off-vehicle front view of the amber halo and reflectors

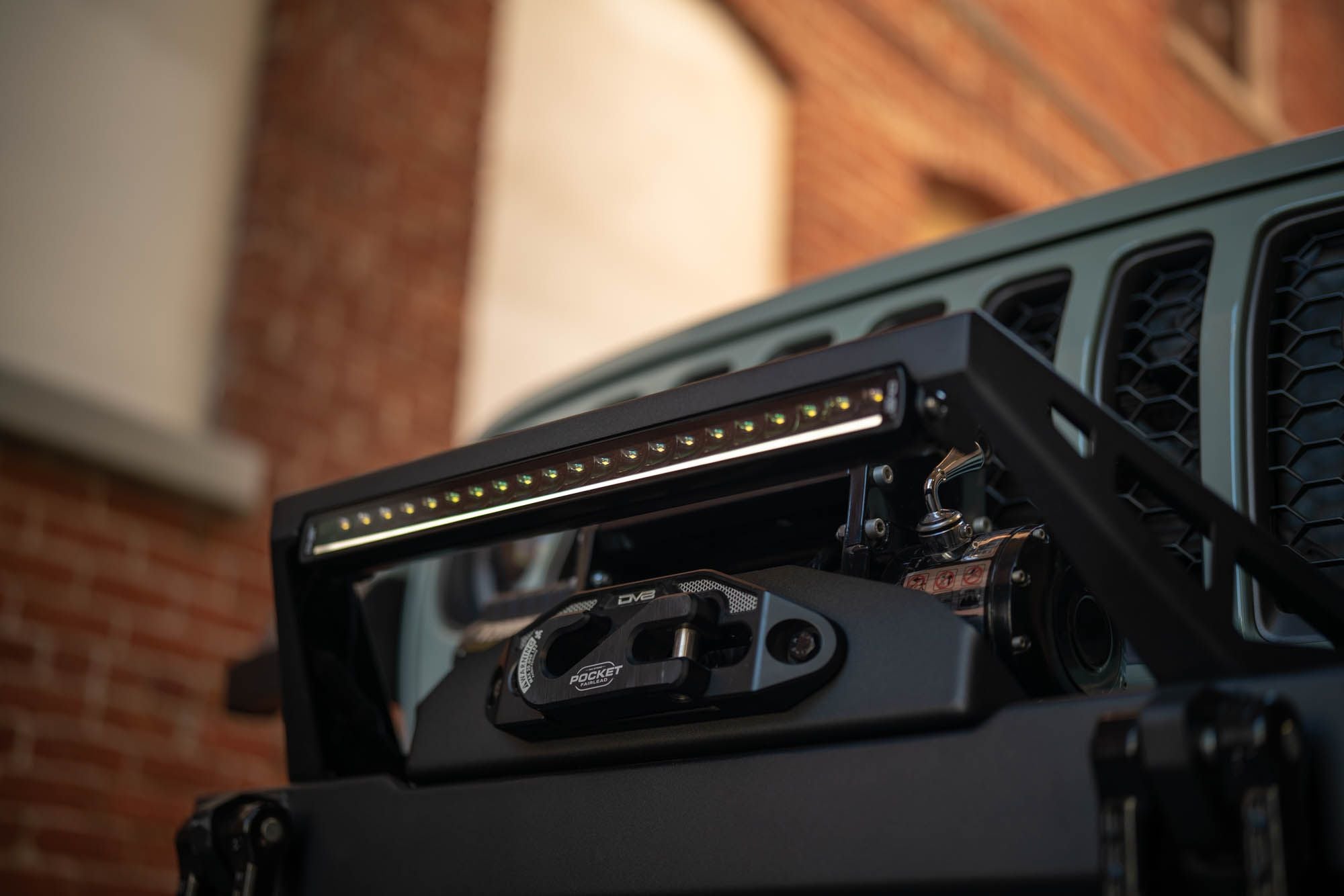

DV8 Offroad Elite Series 20-inch single-row LED light bar with halo, low side view of the LED lenses above the fairlead

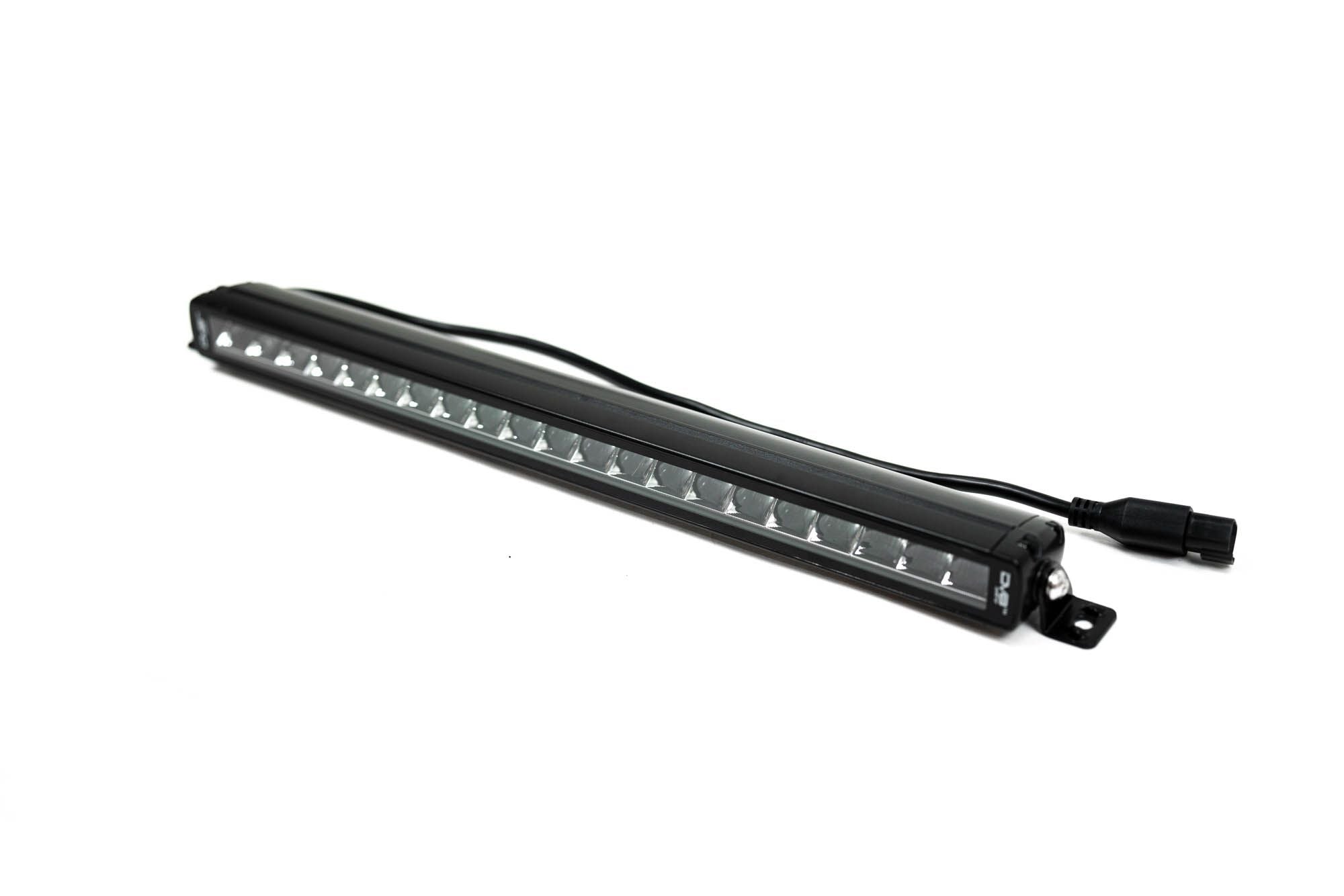

DV8 Offroad Elite Series 20-inch single-row LED light bar with halo, off-vehicle angled view with wiring connector
1 / 14

DV8 Offroad

Part # BE20SW105W-H

Elite Series 20-Inch Single Row LED Light Bar with HaloUniversal fit

$279.99
Pay in full $279.99 Today
Free shipping Same-Day, before 2 PM
Fitment checkedWe review every order
1-year warrantyFully covered
Authorized dealerGenuine parts
Jared YoungVerified buyer2025 Badlands, SAS · Glendale, Arizona
Bronco Forge has been so easy to contact. I've talked to them on a Saturday, texted, and called. They are very responsive and helpful.
Not sure it fits?Send us a photo. We'll check it for you.

Check fitment with a photo

Text us photos and we'll confirm it fits before you order.

Your message, ready to send

Hi Bronco Forge! Can you check if this fits my Bronco?
DV8 Offroad · BE20SW105W-H 20-Inch Single Row LED Light Bar with Halo
My Bronco
Add your photosYour roof and windshield area from the side and from the front.

No Bronco saved yet.

Text us photos
Text us from your phone Scan with your phone's camera. The message opens ready to send. Just add photos. Or text (909) 772-8050
Email us photos

Everything's filled in. Just tap + to add photos.
Fitment & Sensor Notes

Compatible with 20-inch light bar mounts on aftermarket and DV8 bumpers. White and amber halo turns off when main light activates. Proper wiring required.

Install manual
View Manual
Military discount

Active duty, veterans and families

Not ready yet?

Order or email contact@broncoforge.com and we'll review your year, trim, door configuration, and any other fitment details relevant to the product so you can avoid any surprises later.

1 hr
Install time
Universal + wire
Fitment
Aluminum
Material
All trims
Universal

105W Light Bar With an Independent Halo Accent Ring

White and amber halo ring runs separately from the main beam, so it stays on as a running light without activating full output. Driving mode runs within street parameters; off-road mode unlocks full output. IP68 rated. Requires the UNWH-04 40 Amp Halo Light Harness, sold separately.

Details

20-Inch LED Light Bar With an Accent Halo Ring That Runs as a Standalone Light

The DV8 Offroad Halo Elite 20-Inch Single Row LED Light Bar is built for Bronco owners who want a high-output light bar with a distinctive accent halo ring that stays on independently as a running light. 105W total output from the main single row beam, IP68 waterproof rated. The white and amber halo ring runs separately from the main beam so you can run the accent without activating full output. For off-road use only outside of driving mode.

Two Modes, Two Control Systems
The white and amber halo accent lights turn off automatically when the main light activates. Driving mode runs within street parameters. Off-road mode unlocks full output. Toggle between modes: turn on, wait 2 seconds, then toggle off and on three times within 5 seconds. The UNWH-04 40 Amp Halo Light Harness is required and sold separately. Compatible with most aftermarket and DV8 bumpers with a 20-inch light bar mount.

What's Included

  • DV8 Halo Elite 20" Single Row LED Light Bar
  • Mounting hardware

Key Specs

  • Output: 105W
  • IP Rating: IP68
  • Halo: Independent white and amber accent ring
  • Length: 20 inches
  • Required harness: UNWH-04 (sold separately)

What's Included

  • DV8 Halo Elite 20" Single Row LED Light Bar
  • Mounting hardware

Specs

Specifications for 20-Inch Single Row LED Light Bar with Halo | DV8 Offroad Elite Series
VehicleUniversal
TrimsAll trims
Doors2-Door / 4-Door
FitmentUniversal + wire
Install time1 hr
MaterialAluminum
TechnologyLED
Color temperature5700K
Wattage105W
Beam patternSingle Row, Flood and Spot
Lumens8,820 Lumens
Warranty1 Year
BrandDV8 Offroad
Part numberBE20SW105W-H
GTIN810087815035
Questions

Can I wire the halo to my factory DRL so it turns on automatically every time I start the truck?

Yes. Wire the halo circuit to the DRL or accessory circuit and it activates with the ignition. The main beam stays on its own dedicated switch.

On a slow technical trail section, can I run just the halo ring for ambient light without burning the full 105W beam?

Yes. The halo circuit is independent. Use it as a low-power ambient trail light at low speeds and switch the main beam on when you need full output.

How much more involved is the wiring on this vs a standard single-circuit light bar?

Two connections instead of one. The UNWH-04 dual-switch harness handles both cleanly. Add maybe 20 to 30 minutes to a standard light bar install.
