DV8 Offroad
Part # UNWH-04
40 Amp Halo Light Harness with Dual SwitchUniversal fit
$49.99
This part + add-ons
Free shipping $150+
Same-Day, before 2 PM
Fitment checkedWe review every order
WarrantyFully covered
Authorized dealerGenuine parts
Bronco Forge has been so easy to contact. I've talked to them on a Saturday, texted, and called. They are very responsive and helpful.
Fitment & Sensor Notes
Plug-and-play with BE7RW108W-H and BE20SW105W-H only. Designed for DV8 halo lights only. Powers one light only. One harness per light required.
Military discount
Active duty, veterans and families
Not ready yet?
Order or email contact@broncoforge.com and we'll review your year, trim, door configuration, and any other fitment details relevant to the product so you can avoid any surprises later.
1 hr
Install time
Direct fit + wire
Fitment
14-ga wire
Material
All trims
Universal
Details
The Dual-Switch Harness That Controls the Main Beam and Halo Accent Independently
The DV8 Offroad 40 Amp DT 4-Pin Halo Light Harness is the correct wiring solution for Bronco owners running DV8 Halo Elite lights with accent halos. Standard single-switch harnesses cannot independently control the main light and the accent halo. This dual-switch harness solves that by giving you separate control: one switch for the main beam, one to toggle the halo between off, white, and amber.
Plug-and-Play With Halo Elite Lights Only
Plug-and-play with the DV8 7-Inch Halo Elite Round Light (BE7RW108W-H) and the DV8 20-Inch Halo Elite Single Row Light Bar (BE20SW105W-H). Powers one light only. One harness per halo light required. Built with 14-gauge wiring, a 40-amp fuse, and a 40-amp relay. Install is rated at 1 hour.
What's Included

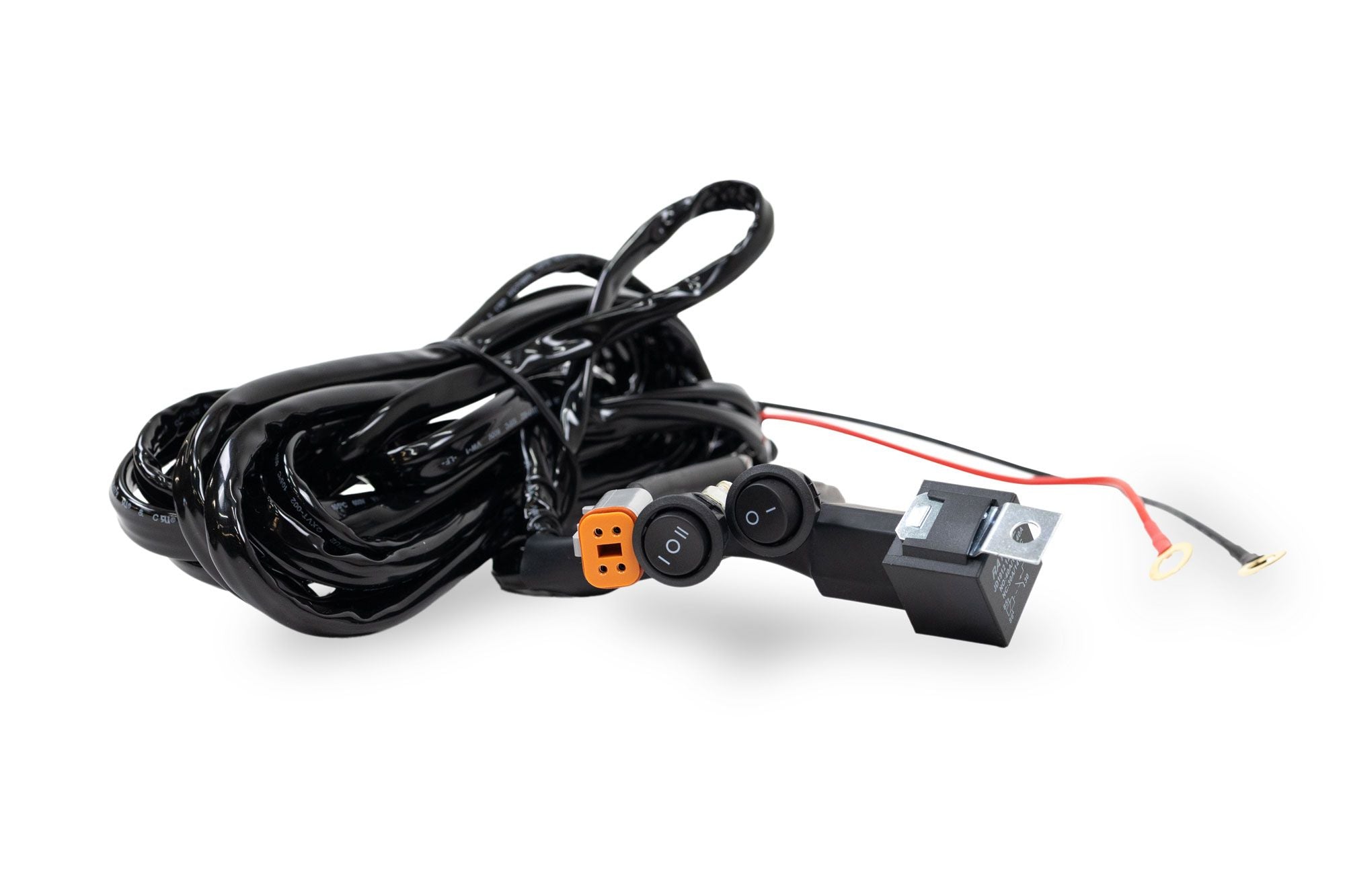

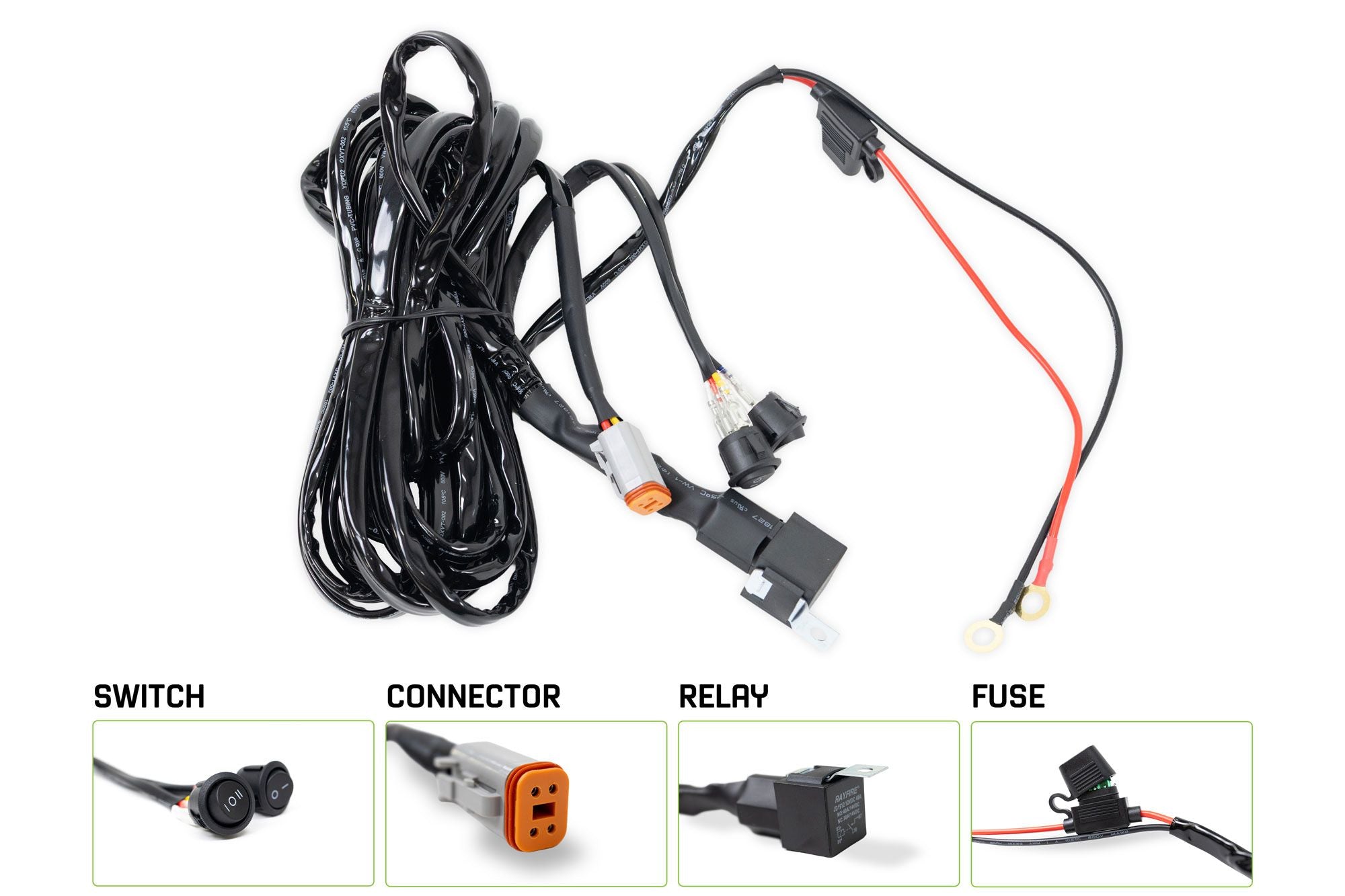

- DV8 40 amp DT 4-pin halo light harness

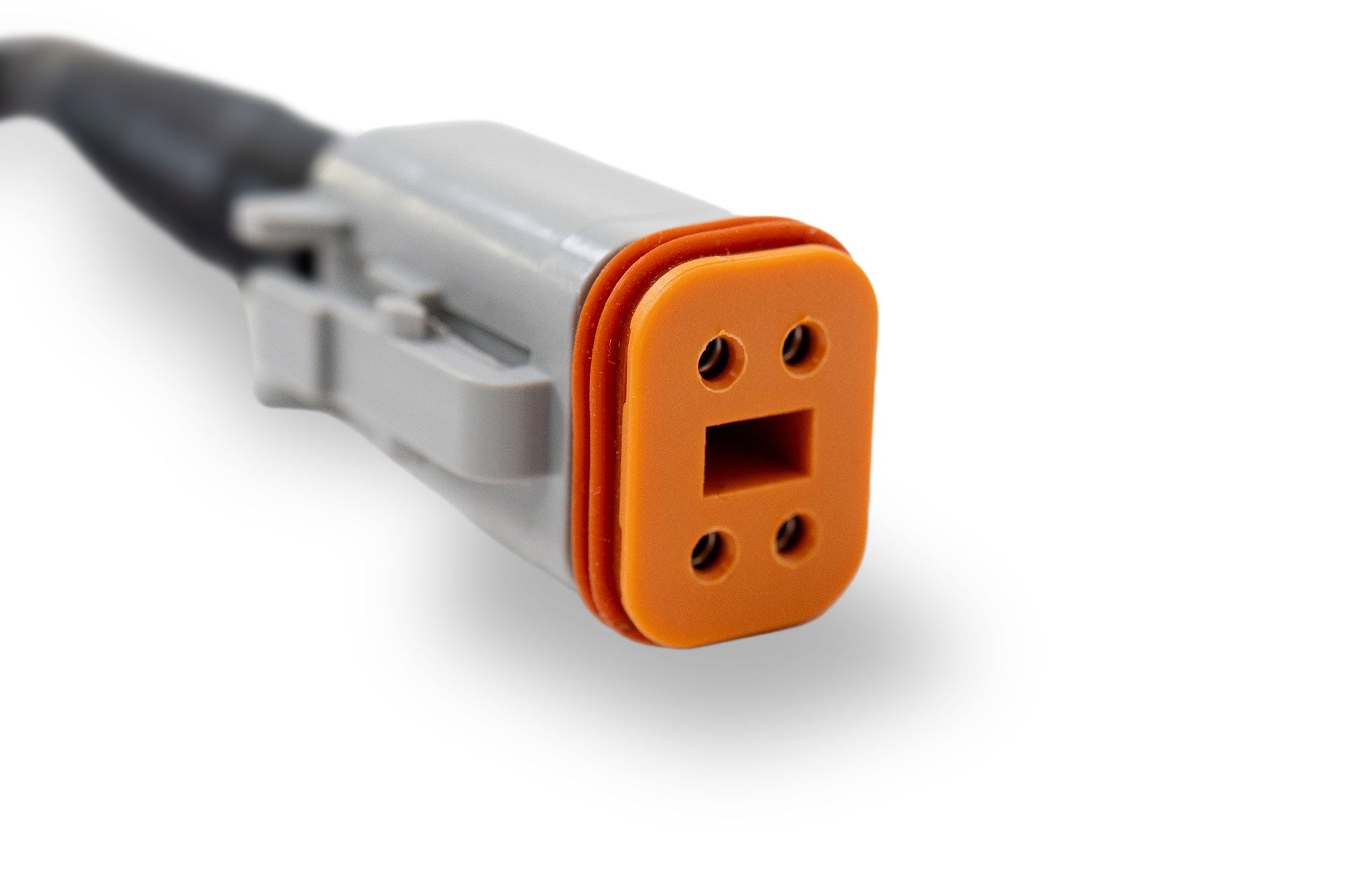

- 10-foot lead with 4-pin male Deutsch connector
- 8-foot lead with round housing switch

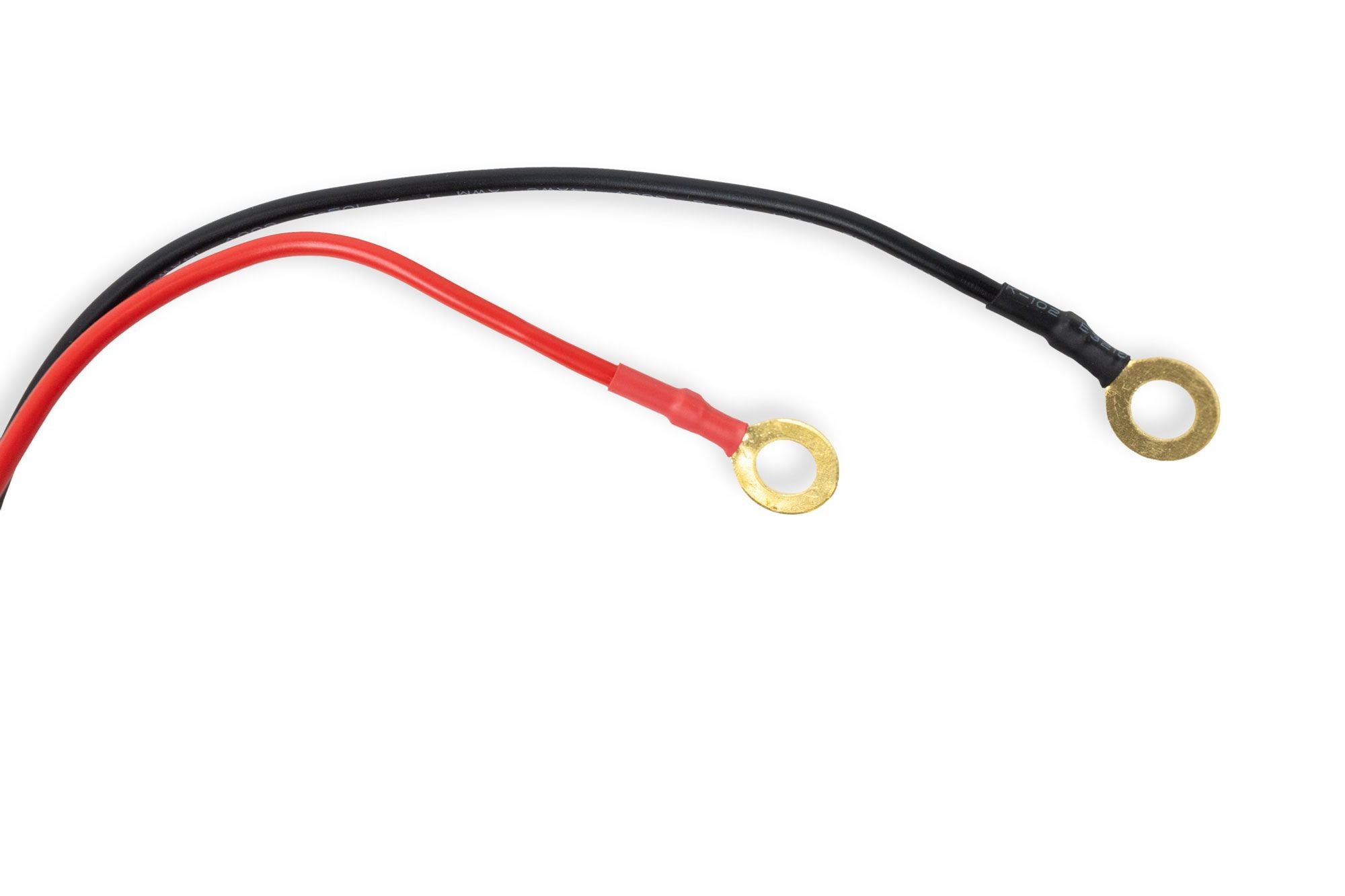

- 1-foot power and ground leads with in-line fuse and ring terminals
Key Specs
- Wire gauge: 14 AWG
- Fuse: 40 amp

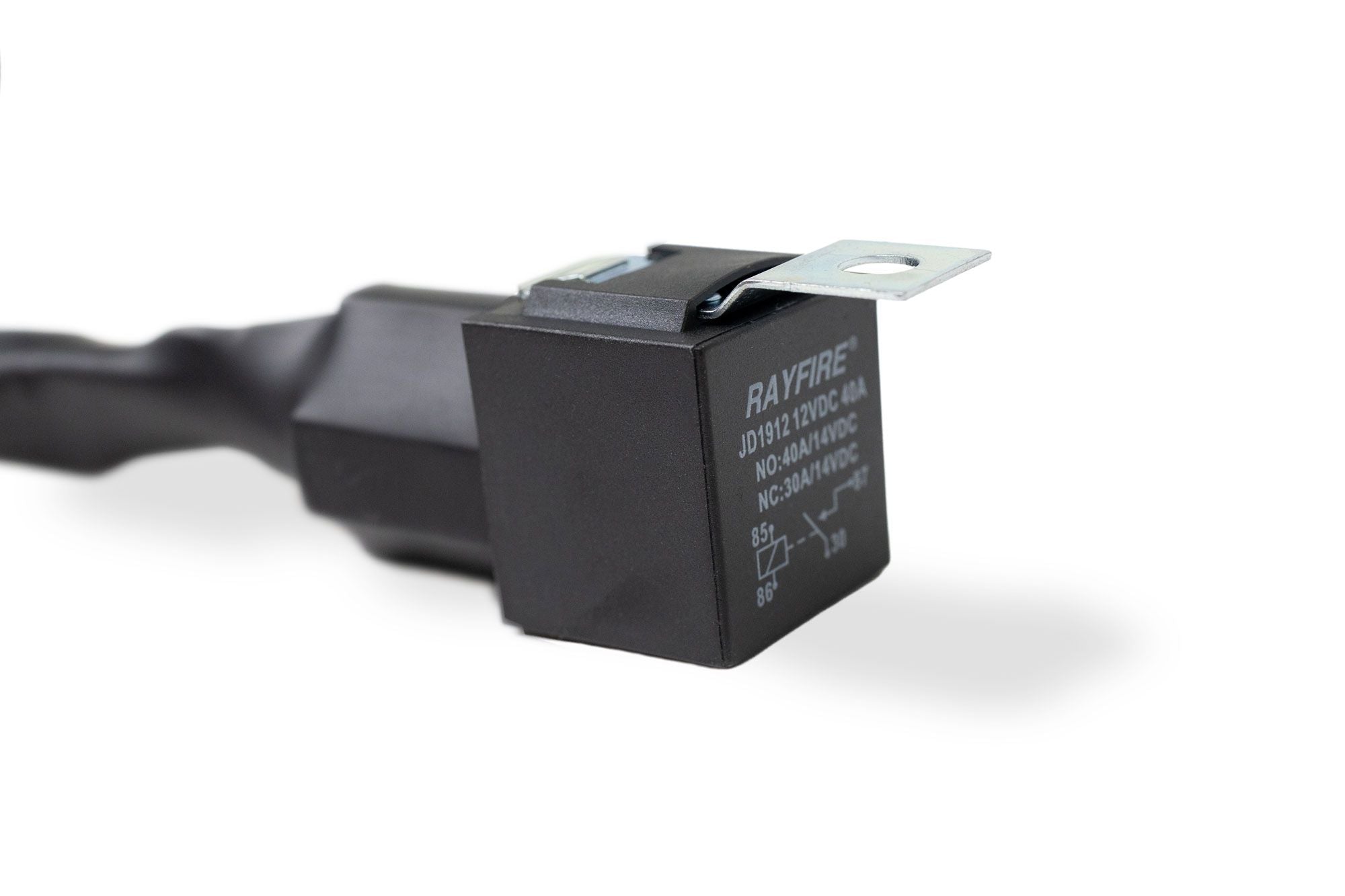

- Relay: 40 amp

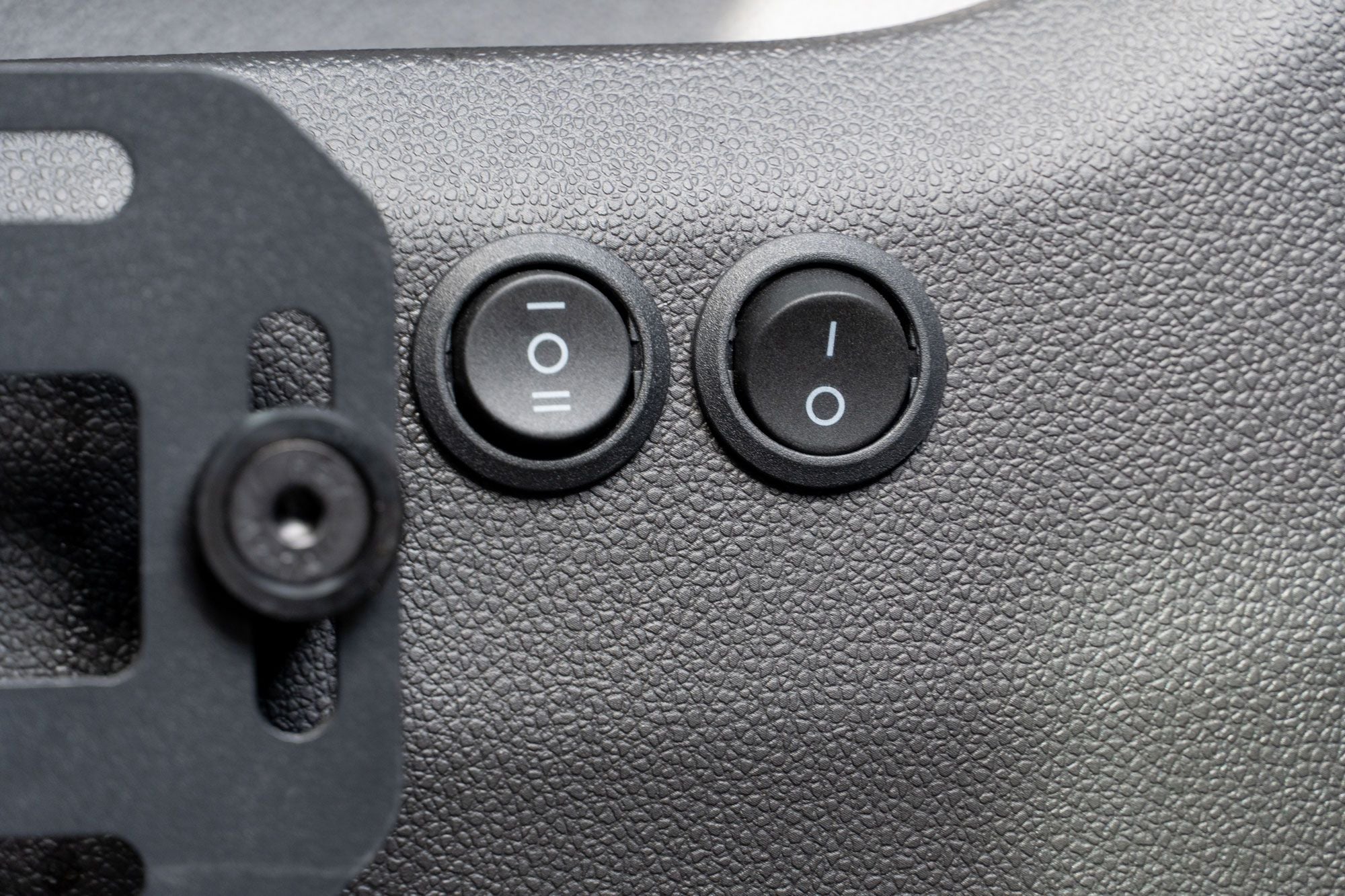

- Switch: Dual, independent main light and halo control
- Halo modes: Off, white, amber
- Install time: 1 hour
- Warranty: 1 year
Specs
| Vehicle | Universal |
|---|---|
| Trims | All trims |
| Doors | 2-Door / 4-Door |
| Fitment | Direct fit + wire |
| Install time | 1 hr |
| Material | 14-ga wire |
| In the box | DV8 40 amp DT 4-pin halo light harness 10-foot lead with 4-pin male Deutsch connector 8-foot lead with round housing switch 1-foot power and ground leads with in-line fuse and ring terminals |
| Brand | DV8 Offroad |
| Part number | UNWH-04 |
| GTIN | 810087817176 |
Questions
Which DV8 halo lights does this work with?
Plug-and-play with the DV8 BE7RW108W-H 7-inch Halo Elite Round Light and the DV8 BE20SW105W-H 20-inch Halo Elite Single Row Light Bar. Designed for DV8 halo lights only.
Why does this have two switches?
The dual switch system controls the main light and the accent halo independently. One switch runs the main beam. The other toggles the halo between off, white, and amber.
Can I power two halo lights from one harness?
No. One harness powers one light only. One harness per halo light is required.
