DV8 Offroad
Part # WB12SC
12,000 lb Steel Cable WinchUniversal fit
$729.99
This part + add-ons
Pay in full
$729.99
Free shipping
Same-Day, before 2 PM
Fitment checkedWe review every order
1-year warrantyFully covered
Authorized dealerGenuine parts
Bronco Forge has been so easy to contact. I've talked to them on a Saturday, texted, and called. They are very responsive and helpful.
Not sure it fits?Send us a photo. We'll check it for you.
Fitment & Sensor Notes
Universal fit. Wiring to battery required. Steel cable winch. Includes steel roller fairlead. Not compatible with hawse fairleads for synthetic rope.
Military discount
Active duty, veterans and families
Not ready yet?
Order or email contact@broncoforge.com and we'll review your year, trim, door configuration, and any other fitment details relevant to the product so you can avoid any surprises later.
1 hr
Install time
Bolt-on + wire
Fitment
Steel
Material
All trims
Universal
Details

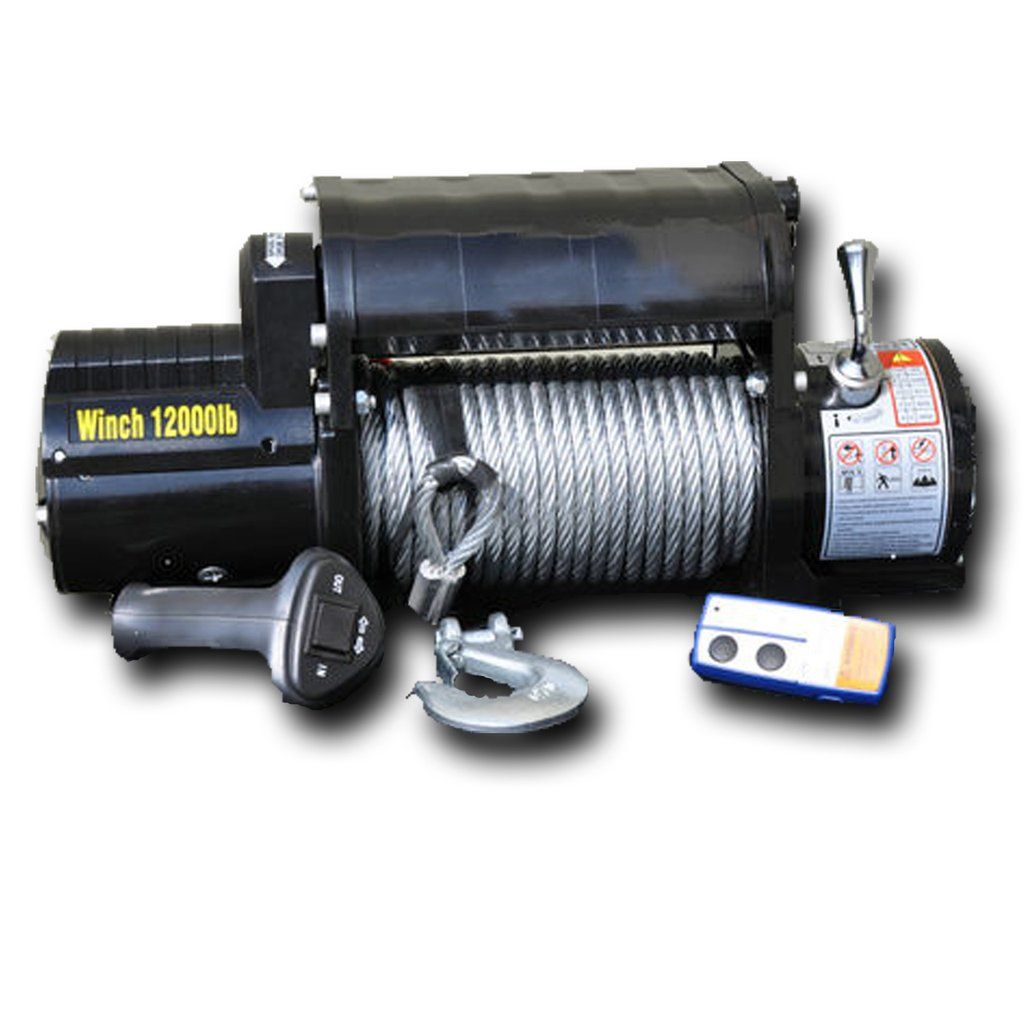

12,000 lb Steel Cable Winch for Bronco Owners Who Prefer Steel Over Synthetic
The DV8 Offroad 12,000 lb Steel Cable Winch gives Bronco owners running a winch-ready bumper a solid recovery winch matched to the DV8 system. 12,000 lb pulling capacity handles recovery situations without strain. Steel cable included. Fits the standard 10 x 4.5 inch winch bolt pattern used in DV8 bumpers and most aftermarket winch-ready bumpers.

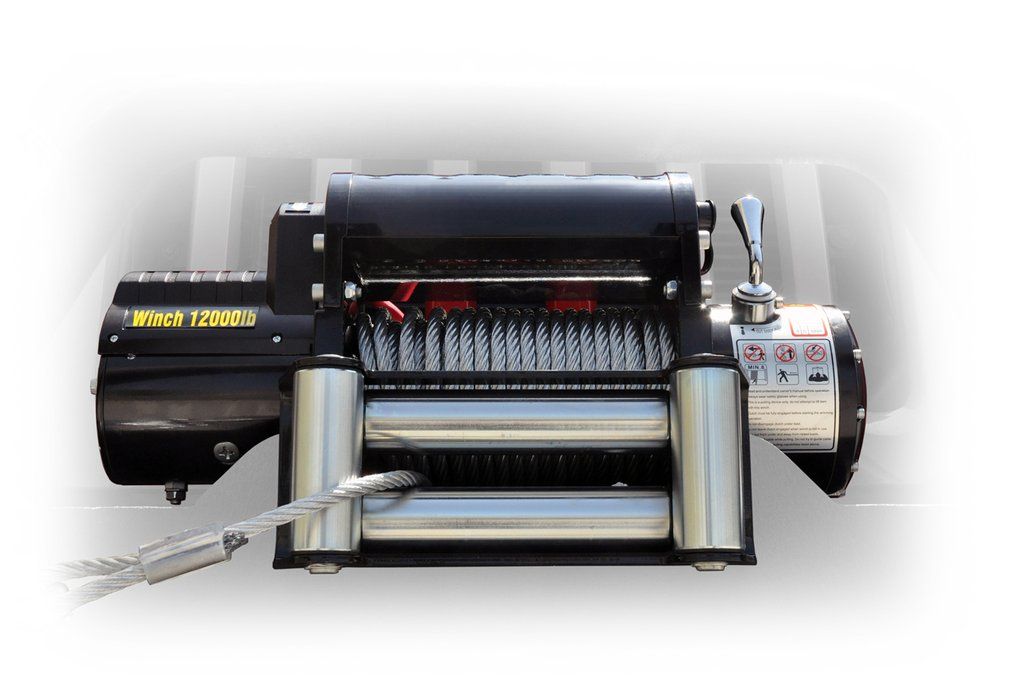

Steel Cable With a Roller Fairlead
Includes a steel roller fairlead. Not compatible with hawse fairleads designed for synthetic rope. Includes wired and wireless remotes. 3-stage planetary gear reduction at a 256:1 ratio. Wiring to the battery is required. Budget approximately 1 hour and have basic wiring tools on hand.
Before You Order
Confirm your bumper's winch cradle accepts a 10 x 4.5 inch bolt pattern before ordering.
What's Included
- DV8 12,000 lb Steel Cable Winch
- Steel cable
- Steel roller fairlead
- Wired remote
- Wireless remote
- Hardware kit
Key Specs
- Capacity: 12,000 lb
- Rope: Steel cable
- Gear ratio: 256:1, 3-stage planetary
- Mounting foot pattern: 10 x 4.5 inches
- Install time: 1 hour, wiring to battery required
Specs
| Vehicle | Universal |
|---|---|
| Trims | All trims |
| Doors | 2-Door / 4-Door |
| Fitment | Bolt-on + wire |
| Install time | 1 hr |
| Material | Steel |
| In the box | DV8 12,000 lb Steel Cable Winch Steel cable Steel roller fairlead Wired remote Wireless remote Hardware kit |
| Warranty | 1 Year |
| Brand | DV8 Offroad |
| Part number | WB12SC |
| GTIN | 756519630626 |
Questions
Do I need to upgrade my battery or alternator to reliably run a 12,000 lb winch?
Under hard pull, a 12K winch draws 400 to 500 amps at peak. Your stock battery handles normal recovery bursts. Keep the engine running during a recovery to let the alternator contribute. For multiple long pulls in a short period, a dual battery setup is worth the investment.
What fairlead do I need for steel cable vs synthetic rope?
Roller fairlead for steel cable. A hawse fairlead causes excessive wear on steel cable and is designed for synthetic rope only. Using the wrong fairlead damages your line.
Can this winch overheat if I do several long pulls back-to-back?
Yes. Winch motors generate significant heat under sustained load. Allow a cool-down period between pulls. A hot motor has reduced output and can be damaged if pushed past its thermal limits.
What's the correct way to spool steel cable to prevent it from digging into itself under load?
Spool in under light tension with someone guiding the cable evenly across the drum with a gloved hand. Uneven layering causes the cable to dig in under load and reduces pulling efficiency.
