Diode Dynamics
Part # DD7232
SS5 Windshield LED Light BarFOR THE 2021–2025 Ford Bronco
$1,909.95
This part + add-ons
Free shipping
Ships within a week
Fitment checkedWe review every order
Lifetime warrantyFully covered
Authorized dealerGenuine parts
Bronco Forge has been so easy to contact. I've talked to them on a Saturday, texted, and called. They are very responsive and helpful.
Fitment & Sensor Notes
Mounts to factory windshield frame points. Not compatible with other parts using those points.
Military discount
Active duty, veterans and families
Not ready yet?
Order or email contact@broncoforge.com and we'll review your year, trim, door configuration, and any other fitment details relevant to the product so you can avoid any surprises later.
2 hr
Install time
Bolt-on
Fitment
Aluminum
Material
All trims
2021–2025 Ford Bronco
Fitment chart
| Trim | 2021 | 2022 | 2023 | 2024 | 2025 |
|---|---|---|---|---|---|
| Base | Fits | Fits | Fits | Not made this year | Fits |
| Big Bend | Fits | Fits | Fits | Fits | Fits |
| Black Diamond | Fits | Fits | Fits | Fits | Not made this year |
| Outer Banks | Fits | Fits | Fits | Fits | Fits |
| Badlands | Fits | Fits | Fits | Fits | Fits |
| Wildtrak | Fits | Fits | Fits | Fits | Not made this year |
| First Edition | Fits | Not made this year | Not made this year | Not made this year | Not made this year |
| Everglades | Not made this year | Fits | Fits | Fits | Not made this year |
| Heritage Edition | Not made this year | Not made this year | Fits | Fits | Fits |
| Stroppe Edition | Not made this year | Not made this year | Not made this year | Not made this year | Fits |
| Raptor | Not made this year | Fits | Fits | Fits | Fits |
Fits Doesn't fit – Not made that year
- Doors: 2-Door and 4-Door
Details

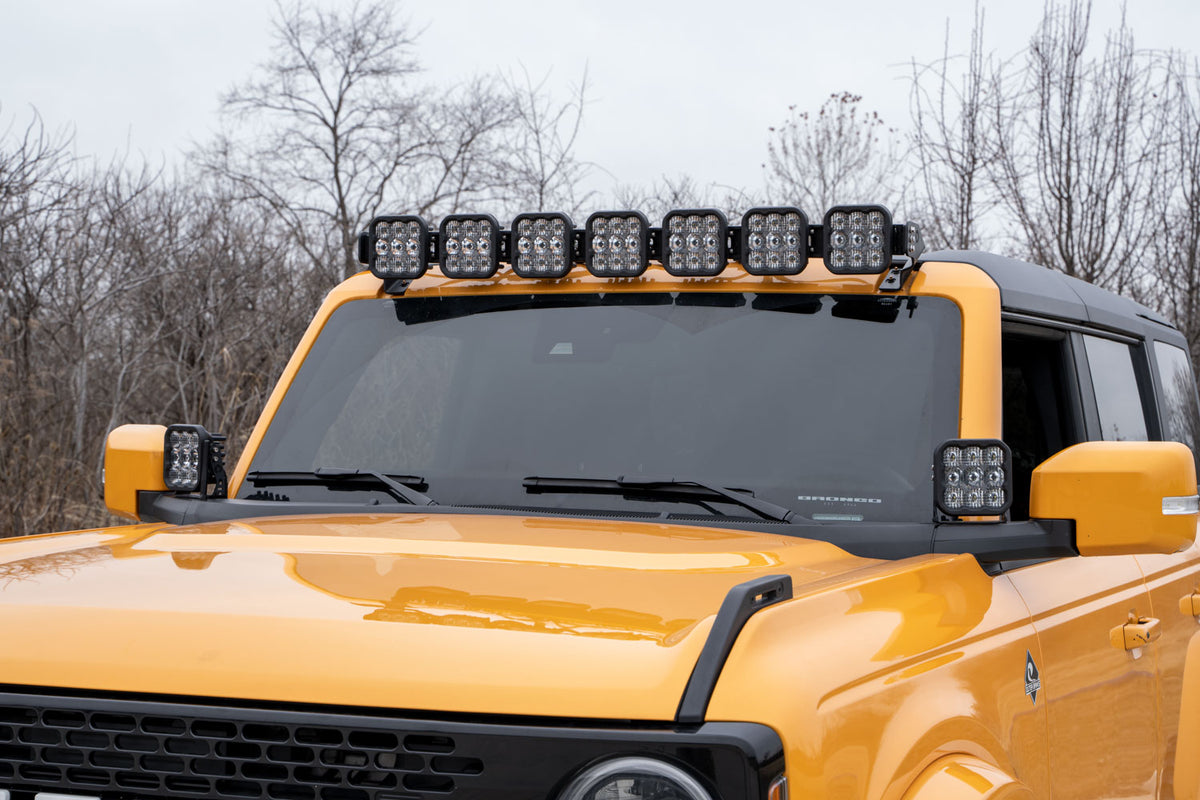

The Diode Dynamics SS5 CrossLink windshield light bar kit mounts seven LED pods above the windshield of the 2021, 2022, 2023, 2024, and 2025 Ford Bronco. It also fits the Bronco Raptor. The seven SS5 Sport pods link together into one bar that sits up high, where it throws light far down the trail and over brush and hills.
Seven Pods Linked Into One Bar
Each SS5 is a 5-inch LED pod. Diode Dynamics joins the seven pods with CrossLink, a one-piece aluminum link that holds the pods in a solid row. Two extra supports keep the bar steady on rough trails. You get the look of one light bar with the output of seven separate pods.
Light Output
This kit uses SS5 Sport pods. Each pod runs at 40 watts. Diode Dynamics measures the white Sport pod at 3,800 lumens and the yellow pod at 3,700 lumens. That adds up to about 26,600 lumens for the white kit and about 25,900 lumens for the yellow kit.
White or Yellow
White is a cool 6000K light that matches most factory LED lights. Yellow is a warm 3000K light. Yellow can be easier to see through in dust, rain, and fog.
Combo Beam
Every pod in this kit uses the Combo beam. The center of each pod has driving optics that send a focused beam far down the trail. The top and bottom have flood optics that spread light wide and close. The full pattern covers 70 degrees wide and 30 degrees tall.
Backlight
Each pod has a backlight that glows around the lens. On the white kit, you can pick from eight colors, including white, red, blue, green, purple, yellow, amber, and teal. You change the color by turning the power off and on. The backlight has its own switch, so you can run it with or without the main beam.
Built to Last
The pods have aluminum housings and polycarbonate lenses. They are rated IP69K, so they are waterproof and can handle a pressure washer. Diode Dynamics tests the pods from -40 to 185 degrees Fahrenheit, along with shake and moisture testing.
Fitment
This kit fits the 2021 through 2025 Bronco and the Bronco Raptor. It bolts to the factory mounting points on the windshield frame. It will not work with any other part that uses those same mounting points above the windshield, so check your Bronco before you order.
Wiring
The kit is made to run from the factory AUX switches above the mirror. It uses two switches, one for the main beam and one for the backlight. If your Bronco does not have factory AUX switches, the kit includes an adapter wire so you can use a toggle switch instead.
Road Use
These are off-road lights. Keep them off on public roads unless your local laws allow them.
Installation
The kit includes two steel brackets, seven SS5 Sport pods, the CrossLink links, supports, and end mounts, a pod connecting wire set, a heavy duty power wiring kit, and the hardware. No cutting or drilling is needed. Plan on one to two hours for the install.
Bronco Forge carries both colors in one listing. Diode Dynamics backs the pods with a limited lifetime warranty.
Specs
| Vehicle | 2021–2025 Ford Bronco |
|---|---|
| Trims | All trims |
| Doors | 2-Door / 4-Door |
| Fitment | Bolt-on |
| Install time | 2 hr |
| Material | Aluminum |
| In the box | 2 steel brackets 7 SS5 Sport pods CrossLink links, supports and end mounts Pod connecting wire set Heavy duty power wiring kit Hardware Toggle switch adapter wire for Broncos without AUX switches |
| Certification | IP69K Waterproof |
| Technology | 7x SS5 Sport LED Pod, CrossLink Bar |
| Color temperature | 6000K White / 3000K Yellow |
| Beam pattern | Combo |
| Lumens | About 26,600 lm white / 25,900 lm yellow (7 pods) |
| Warranty | Lifetime |
| Brand | Diode Dynamics |
| Part number | DD7232 |
| GTIN | 195995126047 |
Questions
Does this fit the Bronco Raptor?
Yes. Diode Dynamics says it fits the Raptor.
How is it wired?
It runs from the factory AUX switches, one for the main beam and one for the backlight. An adapter wire for a toggle switch is included for Broncos without AUX switches.
Will it work with my roof rack?
It will not work with any other part that uses the same mounting points above the windshield.
How many pods come in the kit?
Seven SS5 Sport pods, linked into one bar.
