How Ford Bronco Portal Axles Work and What They Cost

What Are Portal Axles on a Ford Bronco?

A portal axle system adds a geared box between the Bronco's axle output and the wheel hub.

On a normal wheel end, power leaves the axle and goes almost directly into a hub centered with the wheel. The axle output and wheel centerline live in roughly the same place vertically.

A portal changes that relationship. The axle drives gears inside the portal box, and those gears drive a wheel hub positioned lower than the axle output.

That one change is the easiest way to understand the entire idea: the wheel moves down relative to the axle, so the axle and truck effectively move up relative to the ground.

Turn Offroad's current 6th-gen Bronco system uses that offset to add about 4.75 inches of ground clearance at the axle while also adding an 11% gear reduction at the wheel.

Setup	What physically moves higher?	What stays low?	Gearing effect
Stock / regular axle	Nothing beyond factory ride height	Axles, hubs, differential and chassis stay at factory positions	None
Suspension lift	Body/chassis move higher; front IFS differential may rise with chassis	Solid rear axle/differential stay at tire-defined height	None
Larger tires	Axles, hubs and differential rise by roughly half the tire-diameter increase	Suspension geometry is mostly unchanged by tire size itself	Makes effective gearing taller
Portal axles	Axle output, driveline and vehicle sit higher relative to the wheel hub	Tire contact patch stays on the ground; wheel hub is intentionally lower than axle output	Adds wheel-end gear reduction

How Are Portal Axles Different From Regular Axles?

Picture the side of your Bronco with one wheel removed.

On a conventional setup, imagine drawing a straight horizontal line through the center of the wheel. That line is close to where the axle output and hub live. Power travels outward and the wheel rotates around essentially that same centerline.

Now imagine putting a small gearbox on the end of that axle. The axle enters the top portion of the box. Gears transfer that rotation downward. The wheel bolts to an output hub lower on the box.

The tire still touches the same ground. The wheel still spins normally. But the axle entering the portal box is now several inches higher than the center of the wheel.

That is why portals are fundamentally different from ordinary axles. They create a vertical offset between where the axle lives and where the wheel rotates.

For an off-road truck, that is incredibly useful because the axle housing, differential, driveline, and vehicle attached above that point all gain room over obstacles.

What Does a Suspension Lift Raise?

That is where portal axles click for most people.

A suspension lift mainly creates more distance between the vehicle body or chassis and the wheel hubs. On the Bronco's independent front suspension, changing ride height also changes the operating position of the control arms and CV axles unless the rest of the geometry is corrected.

At the rear, the Bronco uses a solid axle. Lift the body three inches with suspension and the rear differential does not suddenly gain three inches of clearance from the ground. The axle is still hanging between the same two tires.

If the rear differential was the part dragging over a rock before the lift, a suspension lift by itself did not fix that particular clearance problem.

The easiest way to visualize it is this:

Suspension lift: pick the Bronco's body up higher above its wheels.

Portal lift: move the wheels downward relative to the axle and drivetrain.

Both can make the truck taller. They do not make it taller in the same way.

Do Portals Lift Everything Under the Bronco?

Not literally every nut and bolt, but they raise far more of the useful mechanical package than a suspension-only lift does.

The wheel hub is moved lower relative to the axle output. That means the axle, differential, suspension mounting points, chassis, body, and drivetrain connected above the portal relationship all sit higher relative to the tire contact patch.

On the solid rear axle, that is especially easy to appreciate because you are gaining clearance where a conventional suspension lift cannot: under the axle and differential itself.

At the front, the Bronco's differential is mounted to the chassis rather than hanging in a solid axle housing. A traditional IFS lift can raise the chassis and front differential, but it usually does so by changing suspension and CV operating angles. A portal raises the vehicle through the wheel-end offset while Turn Offroad's system is designed to keep the factory suspension geometry.

So when someone says portals “lift everything underneath,” I would translate that as: they raise the important axle/drivetrain package relative to the wheels without asking suspension height to do all of the work.

How Much Clearance Do Bronco Portals Add?

Turn Offroad states that its Bronco portal system adds approximately 4.75 inches of ground clearance at the axle.

That is a huge number when you think about how difficult it is to create the same clearance at a conventional rear differential.

With a normal solid axle, the primary way to raise the differential farther from the ground is a larger tire. Go from a true 35-inch tire to a true 37-inch tire and you only gain roughly one inch of axle clearance because only the radius matters.

A portal is effectively changing the wheel-to-axle relationship itself.

This is why I would rather describe portal clearance as usable mechanical clearance instead of just lift height. The truck may look taller, but the real benefit is the extra daylight underneath components that normally decide whether you clear a rock or drag across it.

Do Portal Axles Act Like a Regear?

Yes, in the sense that they change the effective gearing seen at the tire, but they do it in a different place.

Traditional axle regearing changes the ring-and-pinion ratio inside the differential. Portal reduction happens at the wheel end, after power has already passed through much of the drivetrain.

Turn Offroad's Bronco portals use an 11% reduction inside the portal box.

Think about a bicycle again. Moving to an easier gear gives you more force at the wheel for the same effort at the pedals. A portal does something similar after the Bronco's factory gearing has already done its job.

That matters with large tires. Bigger tires effectively make the overall gearing taller because each wheel revolution travels farther. The engine loses mechanical advantage at the ground.

Portal reduction gives some of that advantage back.

Do Portals Reduce Drivetrain Stress?

This is one of the reasons wheel-end reduction is interesting beyond the crawl ratio.

The portal multiplies torque after the ring and pinion, driveshaft, and transfer case have already transmitted it. To create a given amount of torque at the tire, those upstream components can carry less torque than they would in a system relying on them to provide all of the reduction.

Turn Offroad specifically positions its 11% reduction as a way to reduce load on the ring and pinion, transfer case, and driveshafts when larger tires are installed.

I would still avoid saying portals make a big-tire Bronco “stress free.” They do not.

A 40-inch tire still weighs more. Steering still has to turn it. Wheel bearings still support it. Brakes still have to slow it down. The portal box itself adds gears, bearings, seals, oil, and unsprung mass.

The more accurate claim is that portals move some of the torque multiplication to the wheel, which can reduce the torque burden on expensive upstream drivetrain parts.

Are Portals Better Than Regearing?

If the only problem you need to solve is gearing, traditional axle gears are usually the simpler answer.

Regearing changes the ratio without adding width, portal boxes, additional oil, or a new wheel-end assembly. It also costs much less than a full portal system.

What regearing does not do is add axle clearance.

That is where portals become a different category of modification. You are not paying $12,000 for an unusual way to accomplish what a ring and pinion can already do. You are paying for the combination of clearance + wheel-end reduction + big-tire capability.

If I wanted 37s and only disliked the gearing, I would look hard at conventional gearing and calibration first.

If I wanted 40s, more clearance under the axle, and less dependence on a huge suspension lift, portals become much easier to justify.

Are Portals Better Than a Lift Kit?

Neither one is universally better because they solve different problems.

A suspension lift is excellent for making room between the tire and body, increasing ride height, changing suspension travel, and setting the truck up around a larger tire.

A portal is excellent for increasing axle clearance and adding gear reduction without getting all of that height from the suspension.

A serious portal build may still use suspension modifications. The difference is that you no longer need the suspension to create every inch of the truck's clearance.

If your goal is 35-inch tires and a taller stance, portals are wildly excessive.

If your goal is a Bronco on 40s that still needs real trail clearance under the mechanical parts, I would rather use a smaller amount of suspension height plus portals than chase the entire result with an enormous suspension lift.

Our Bronco lift-kit guide explains what suspension lift changes on its own.

Do Portal Axles Make a Bronco Wider?

Yes. This is a real tradeoff and something I would decide I can live with before buying.

A portal box lives between the original wheel-end location and the new hub, so the wheel mounting position moves outward. Final track width also depends on the wheel offset you choose.

More width can improve lateral stability, which helps offset some of the effect of raising the truck. But width is not free.

A wider Bronco takes up more garage space, may need more fender coverage, can be harder to place on narrow trails, and can become awkward on a trailer. Wheel offset can also change scrub radius and steering leverage.

This is why Turn Offroad provides a printable wheel-clearance template. I would choose wheels around the portal system instead of ordering an aggressive low-offset wheel first and discovering later that the truck is much wider than expected.

Do Portals Change Steering Feel?

Potentially, but the portal is only part of the final steering equation.

Track width, wheel offset, tire width, tire diameter, tire pressure, alignment, and the added wheel-end mass all affect how the steering feels.

Turn Offroad's system is designed to retain factory suspension geometry, which is a major advantage compared with chasing similar height through an extreme suspension lift.

But “factory suspension geometry” does not mean a Bronco on 40s will steer exactly like a stock Bronco on 32s. The tire is still doing tire things.

If highway manners matter to you, I would pay as much attention to wheel offset and tire choice as I do to the portal itself.

Can You Daily Drive a Bronco With Portals?

Yes, that is one of the more interesting arguments for this type of portal system.

Turn Offroad designs its Bronco kit to retain factory ABS functionality and the OEM electronic parking brake. It also uses the 11% reduction to help restore large-tire drivability rather than forcing the rest of the drivetrain to live with dramatically taller effective gearing.

A portal-equipped Bronco is no longer a factory wheel-end setup. You have four additional gearboxes carrying oil, gears, bearings, and seals.

I would daily drive one if the build genuinely needed portals and I was comfortable inspecting and servicing it like a modified vehicle.

I would not spend twelve grand on portals for a commuter that sees a fire road twice a year just because I liked the stance.

What Maintenance Do Portals Need?

Portal boxes contain gears and lubricant, so they add service items a normal Bronco hub does not have.

Turn Offroad's current design uses easy-access drain and fill points, a double-seal system, and increased oil capacity. The company states that the boxes hold 16.9 ounces of oil, 66% more than competing portal designs, with the goal of improving lubrication and cooling while reducing service frequency.

I would still treat fluid checks as part of normal ownership, especially after hard trail use, deep water, or the first part of the break-in period.

I would also inspect seals, fasteners, wheel bearings, brake hoses, and anything showing unusual heat or play.

The portal itself is a serious mechanical component. If the idea of maintaining four extra gearboxes sounds miserable, that is useful information before you buy.

How Much Do Bronco Portal Axles Cost?

The Turn Offroad Bronco portal system is currently listed at $11,999.99 before installation.

That number is important, but I would not treat $11,999.99 as the total build cost.

You may also need or want wheels that meet the portal's clearance requirements, larger tires, an alignment, spare-tire support, suspension changes for tire-to-body clearance, and installation labor.

If your target is 40-inch tires, the rest of the build matters even more. Our 40-inch Bronco guide goes through the steering, brake, clearance, spare-tire, and calibration decisions that remain even after portals solve the axle-clearance and gearing problems.

I would budget the whole truck before ordering the portals. Buying the expensive centerpiece first and improvising everything around it is how builds get expensive twice.

Are Portal Axles Worth $12,000?

For most Bronco owners, no.

That is exactly why I think this article should say it plainly.

If you are running 35s, mild trails, and a normal suspension setup, there are far cheaper ways to improve the Bronco.

If you are already planning a serious 37- to 40-inch build, want more clearance underneath the axle itself, and would otherwise spend money on lift, gearing, steering, and driveline changes to chase the same goal, the value calculation changes.

You are not comparing portals with “doing nothing.” You are comparing them with the conventional build required to reach similar capability.

That is where I would do the math.

What Tire Size Makes Portals Worth It?

At 35 inches, I would almost never justify portals purely for tire fitment.

At 37 inches, they become a specialized choice. A Bronco can run 37s very successfully without portals, so I would want a specific reason: real axle clearance, a very technical trail build, or the desire to keep suspension geometry closer to stock.

At 40 inches, the argument gets much stronger.

Forties create enough gearing, clearance, steering, and driveline demands that solving two of those problems at the wheel end starts to make sense.

Turn Offroad explicitly designs its current Bronco system around 37- to 40-inch tires. I would view that range as the real use case, not as an excuse to put portals under a lightly modified truck that does not need them.

Do Portals Work on Sasquatch Broncos?

Yes. Turn Offroad lists the system for both Sasquatch and non-Sasquatch 2021–2026 Broncos, in 2-door and 4-door configurations.

It does not fit the Bronco Raptor.

I would not choose Sasquatch solely because I planned to add portals. Sasquatch still gives you useful factory hardware, but the portal system's own reduction and clearance change some of the normal reasons people choose factory 35-inch hardware.

Start with the Bronco configuration you want for the rest of the truck, then plan the portal build around it.

Who Should Not Buy Portal Axles?

I would skip portals if your Bronco spends almost all of its life on pavement, you are staying on 35-inch tires, or your hardest trail is something a stock Badlands can already handle comfortably.

I would also skip them if you want a simple, low-maintenance build.

Portals add cost, width, unsprung mass, four geared housings, additional fluid, and more things to inspect. Those compromises are perfectly reasonable when they buy you capability you need. They are difficult to defend when they are only buying you a look.

If what you want is two inches of stance and a more aggressive tire, buy the suspension and tire setup that solves that problem.

Who Should Buy Portal Axles?

The strongest buyer is someone with a clear end goal.

You know you want 37s or 40s. You wheel hard enough to care about the rear differential hanging low. You want meaningful clearance without stacking all of the height into the suspension. You want wheel-end reduction to help with the gearing penalty of larger tires. And you are willing to maintain a more complex wheel-end system.

That is a very different buyer from someone who simply wants the Bronco to look taller.

For that serious build, portals stop looking like a novelty and start looking like an engineering solution.

Are Turn Offroad Bronco Portals Worth It?

Turn Offroad's system makes a strong case because it is designed around the specific problems a big-tire 6th-gen Bronco creates.

The current setup adds about 4.75 inches of axle clearance, uses an 11% wheel-end reduction, runs a four-gear portal design, uses CNC-machined 7075 aluminum housings and hardened 8620 steel gears, retains factory ABS and the OEM parking brake, and fits 2021–2026 non-Raptor Broncos.

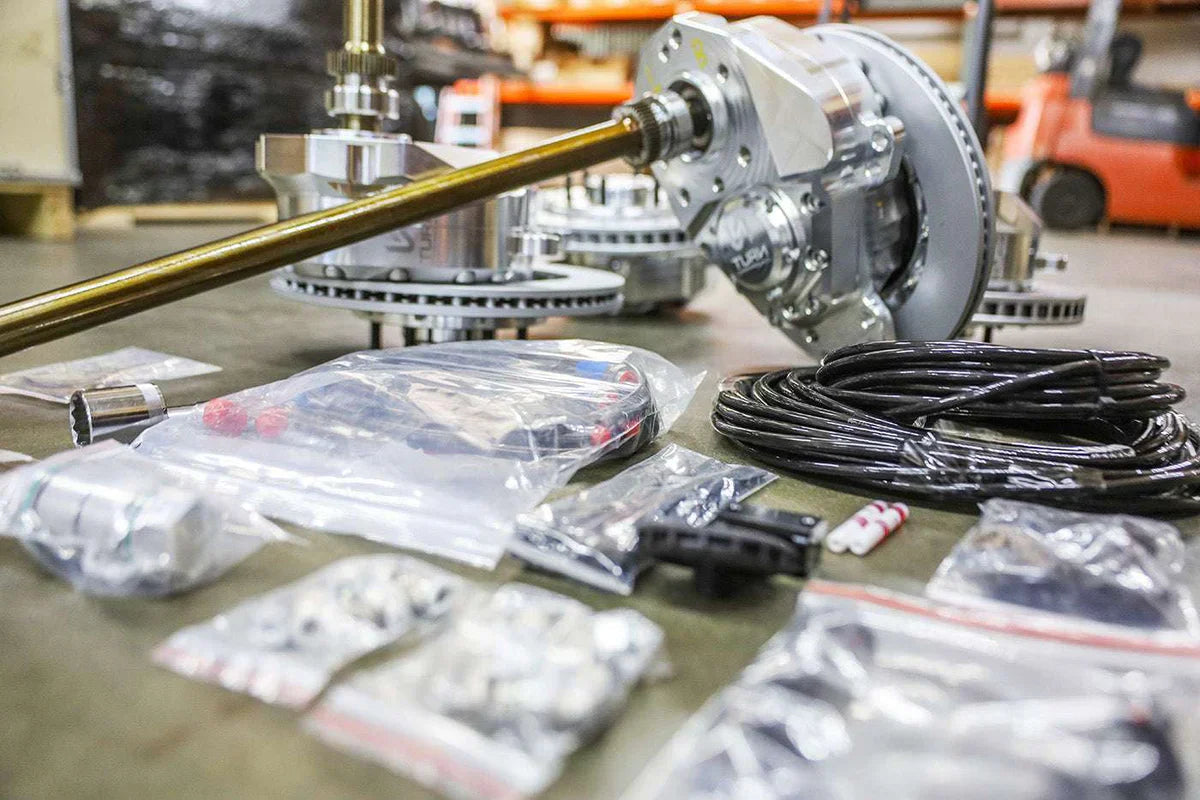

Turn Offroad also includes the front and rear portal assemblies, brake-line extensions, parking-brake wiring extensions, seals, hardware, breathers, and installation tools as part of the system.

The part I care about most is not the material spec. It is that the system solves clearance and gearing together.

If I were building a Bronco on 40s, that combination is why I would seriously consider portals instead of trying to get the same result from a giant suspension lift plus deeper gears.

If I were building a Bronco on 35s, I would save the money.

If you are at the point where the build genuinely needs portals, this is the system I would compare against the rest of the build plan.
