Sway bar disconnect shows up as a spec on Badlands, First Edition, and Raptor trims, and it's one of the more misunderstood factory features on the Bronco. It's not a suspension upgrade in the traditional sense, it's a way to temporarily undo part of what the suspension normally does. Here's what it is and why it matters on the trail.
In This Guide
What Is a Sway Bar Disconnect?

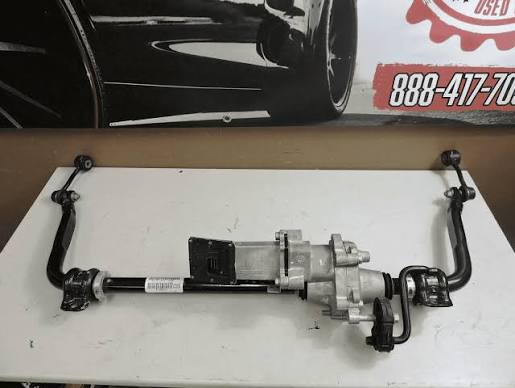

A sway bar disconnect is a system that temporarily unlinks the front sway bar, letting one front wheel travel much further up or down without affecting the other wheel's position. On the Ford Bronco, it's an electro-hydraulic unit activated from a dash button, available on Badlands, First Edition, and Raptor trims.
Under normal driving, the sway bar connects both front wheels through a spring-like link that resists body roll by pulling the opposite wheel to match when one side compresses. That's exactly what you want on pavement. It's also what limits how far one wheel can flex independently on uneven trail terrain, since the sway bar is actively fighting that movement to keep the truck level.
Why Is a Sway Bar Disconnect Important?
Wheel articulation, how far a wheel can extend or compress independently, is what keeps tires in contact with the ground on uneven terrain. A sway bar connected to both front wheels caps that articulation, since flexing one wheel down means the sway bar pulls against it. Disconnect the bar and that resistance disappears, letting the suspension flex much further on rutted, off-camber, or rock-strewn terrain where keeping all four tires planted matters most.
This matters specifically for technical, slow-speed trail sections rather than everyday driving, which is exactly why it's designed to disconnect and reconnect on demand instead of staying off permanently.
Which Bronco Trims Have It?
Badlands and First Edition come standard with the front sway bar disconnect. The Raptor gets its own version as well. Wildtrak, despite sitting above Badlands in some capability comparisons, does not include it, since Wildtrak is tuned around high-speed desert running rather than slow-speed technical crawling, and it's missing the specific control module the disconnect system depends on. Base, Big Bend, Outer Banks, and other trims without it can't easily add it aftermarket either, since it requires wiring and modules most non-equipped trims don't have built in from the factory.
How It's Activated, and the Speed Limit That Matters

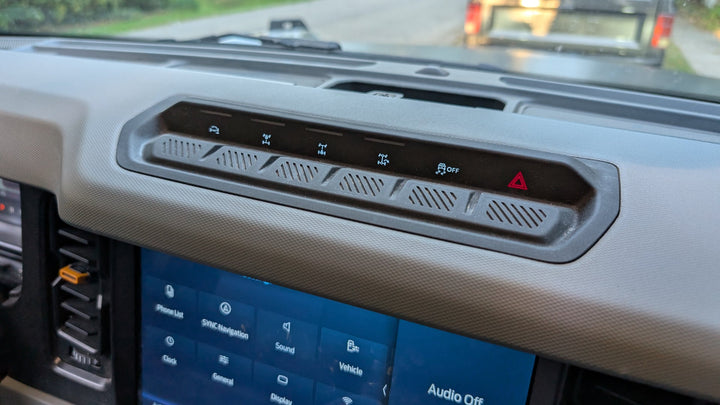

The disconnect activates with a button on the dash, part of the same switch pack as the Bronco's other off-road hero functions. It only works in 4-High or 4-Low, and only below 20 mph. Ford's system automatically reconnects the bar once speed climbs back above that threshold, whether or not the driver has turned the button off, since driving with the bar disconnected at higher speeds reduces vehicle stability.
That auto-reconnect isn't a suggestion. It's a genuine safety feature built into the system, and it's the reason the disconnect is framed as a trail tool rather than something to leave engaged during a normal drive.
FAQ
Which Bronco trims come with a sway bar disconnect?
Badlands, First Edition, and the Raptor. Wildtrak does not include it despite sitting above Badlands in some other capability comparisons.
How fast can you drive with the sway bar disconnected?
Under 20 mph. The system automatically reconnects the bar above that speed for stability, regardless of whether the dash button is still switched on.
What does disconnecting the sway bar improve?
Front wheel articulation. With the bar disconnected, one front wheel can extend or compress much further independently of the other, helping keep tires planted on rutted or uneven trail terrain.
Can I add a sway bar disconnect to a Bronco trim that doesn't have it?
Not easily. The factory system depends on wiring and a control module that non-equipped trims don't have built in, which makes it a difficult aftermarket addition compared to a simple bolt-on part.
Curious how much articulation Sasquatch and other off-road hardware adds beyond the sway bar disconnect? Read our complete Sasquatch package guide.
