Approach angle shows up on every Bronco spec sheet and every trim comparison, and it's one of the few off-road numbers that directly explains why some bumpers get replaced and others don't. Here's what it measures, why it matters, and how it compares across the Bronco lineup.
In This Guide

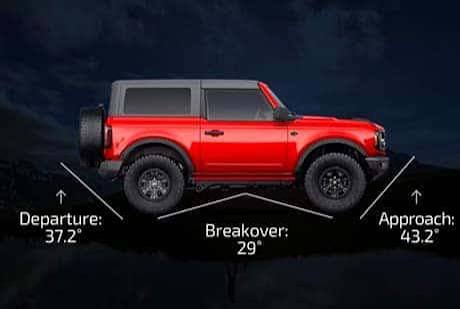

What Is Approach Angle?
Approach angle is the steepest incline a vehicle can drive up without its front bumper or lower front fascia scraping the ground first. It's measured from level ground up to a line drawn between the front tire's contact patch and the lowest hanging point at the front of the vehicle. A higher number means the front end clears steeper obstacles before anything up front makes contact.
Picture driving up onto a steep ledge or a sharp rise in the trail. If the approach angle is too shallow, the front bumper or skid plate hits the rise before the tires even get there, stopping the climb before it starts. A steeper approach angle lets the tires reach the obstacle first, which is what gets the vehicle up and over.
Why Is Approach Angle Important?
For anyone running technical trails, ledges, or steep entry and exit points, approach angle is one of the clearest predictors of what a truck can climb without dragging or hanging up. It matters more on tight, technical terrain than on graded dirt roads, where the ground rarely changes elevation sharply enough for the front end to become a factor.
It's also one of the most direct, factual reasons owners replace a factory bumper. A stock bumper hangs lower and extends further forward than most aftermarket options, which is exactly why a lot of approach-angle complaints on stock Broncos disappear once a stubby or high-clearance bumper goes on.
Approach Angle by Bronco Trim
A base 4-door Bronco without Sasquatch measures a 35.5-degree approach angle. Adding the Sasquatch Package and its 35-inch tires bumps that to 43.2 degrees, a meaningful jump from tire size and suspension geometry alone. The Raptor tops the entire lineup at 47.2 degrees, the highest approach angle Ford builds into any Bronco trim without aftermarket modification.
The Everglades, built around water crossings rather than steep climbs, doesn't top the approach angle chart the way Sasquatch and Raptor do, but its ground clearance and departure angle numbers are tuned for its own specific use case instead.
Breakover and Departure Angle, Briefly
Approach angle is one of three related off-road angles, and the other two matter just as much depending on the obstacle. Breakover angle measures the steepest crest a vehicle can drive over without the middle of the undercarriage dragging on the peak, relevant on rounded humps and crowned trails. Departure angle is approach angle's mirror image at the rear, measuring how steep a decline the vehicle can drive down without the rear bumper or fascia dragging on the way out.
On a base 4-door Bronco, breakover runs 20.0 to 21.1 degrees and departure runs 29.7 to 29.8 degrees. Sasquatch brings those up to roughly 26.3 to 29.0 degrees breakover and 37.0 to 37.2 degrees departure. The Raptor leads all three categories at 47.2 degrees approach, 30.8 degrees breakover, and 40.5 degrees departure.
How Bumper Choice Changes Approach Angle
Not every aftermarket bumper improves approach angle over the factory setup. Full-width bumpers with a low-hanging skid plate or chin extension can reduce approach angle compared to stock on some configurations, while stubby and high-clearance designs almost always improve it. If approach angle matters to your build, check the specific bumper's published spec rather than assuming any steel bumper automatically helps. We cover this exact issue, along with the rest of the common aftermarket bumper pitfalls, in our full breakdown of aftermarket bumper problems.
FAQ
What's the approach angle of a stock Ford Bronco?
A base 4-door Bronco without Sasquatch measures 35.5 degrees. Sasquatch-equipped models measure 43.2 degrees, and the Raptor tops the lineup at 47.2 degrees.
Does a bigger bumper always improve approach angle?
No. Full-width bumpers with a low-hanging skid plate can reduce approach angle compared to stock on some setups. Stubby and high-clearance bumper designs almost always improve it, but check the specific product's published spec rather than assuming.
What's the difference between approach angle and breakover angle?
Approach angle covers the front of the vehicle climbing up an incline. Breakover angle covers the middle of the undercarriage crossing over the crest of a hump or crowned trail without dragging.
Which Bronco trim has the best approach angle?
The Raptor, at 47.2 degrees, the highest approach angle in the Bronco lineup without any aftermarket modification.
